Component/Connector Locations

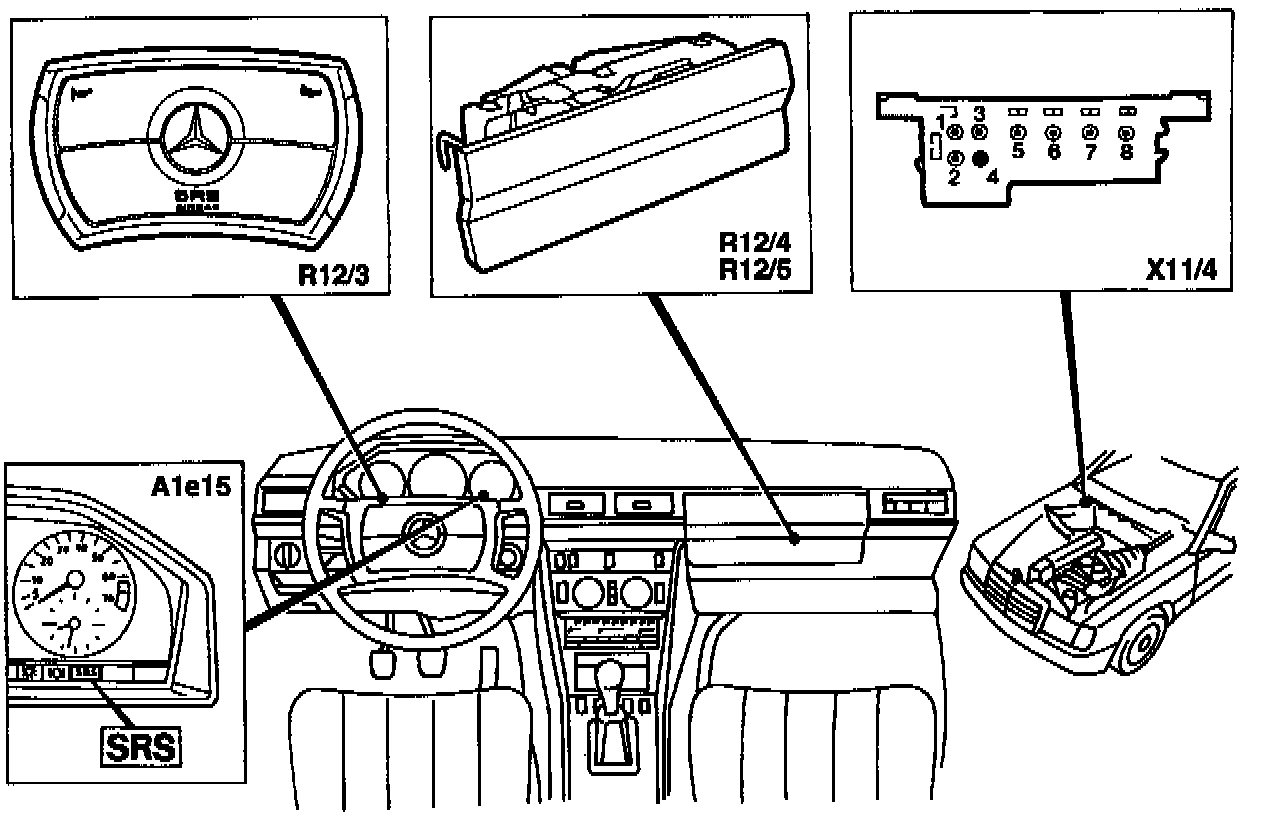

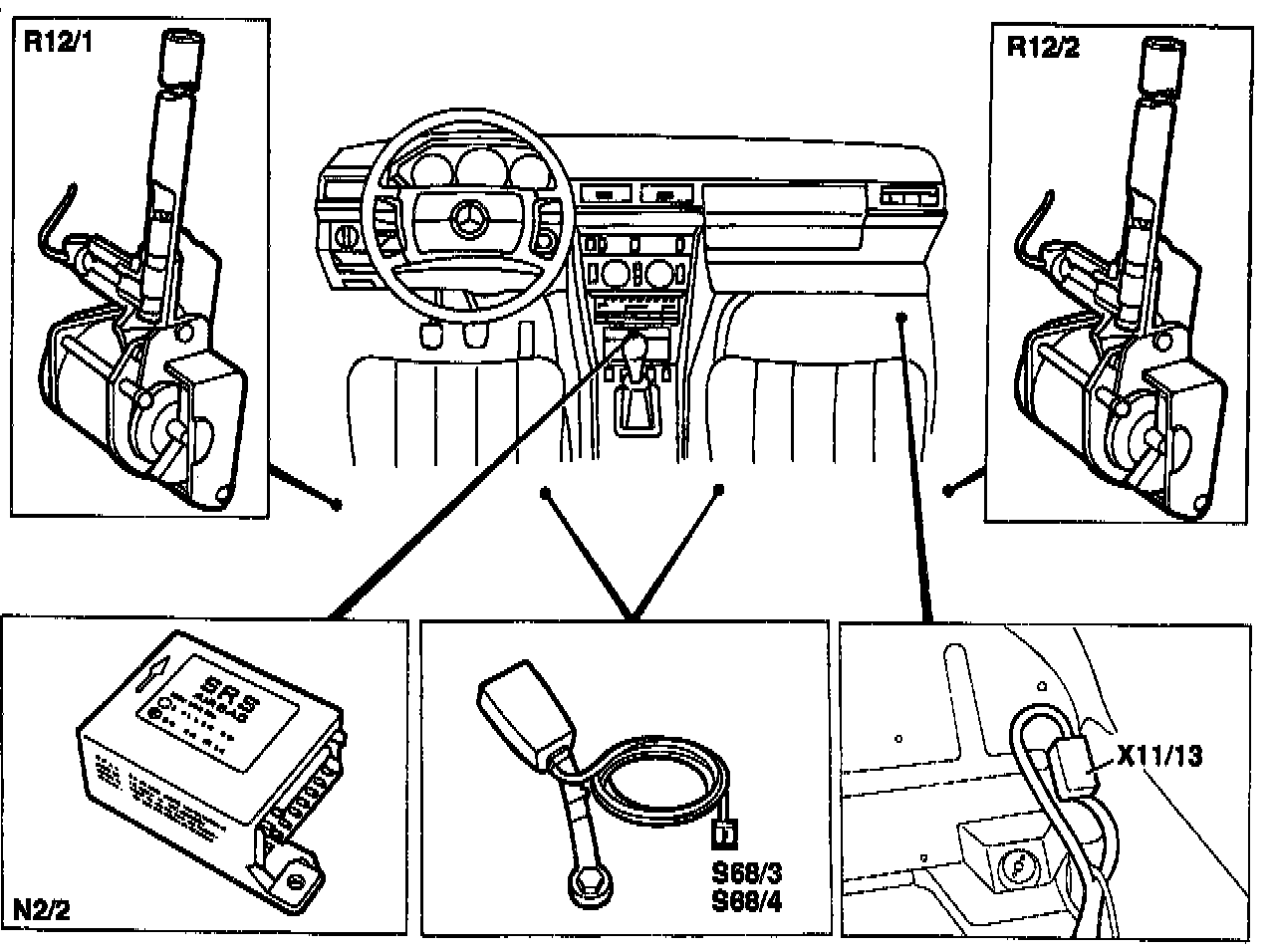

A1e15 Supplemental restraint system malfunction indicator lamp
R12/3 Driver airbag squib
R12/4 Front passenger airbag squib 1
R12/5 Front passenger airbag squib 2
X11/4 Data link connector (DTC readout)





N2/2 Supplemental restraint system control module
R12/1 Left front emergency tensioning retractor squib
R12/2 Right front emergency tensioning retractor squib
S68/3 Left front seat belt buckle switch (airbag/ETR)
S68/4 Right front seat belt buckle switch (airbag/ETR)
X11/13 SRS test connection (10-pole)

Electrical Components in Passenger Compartment:

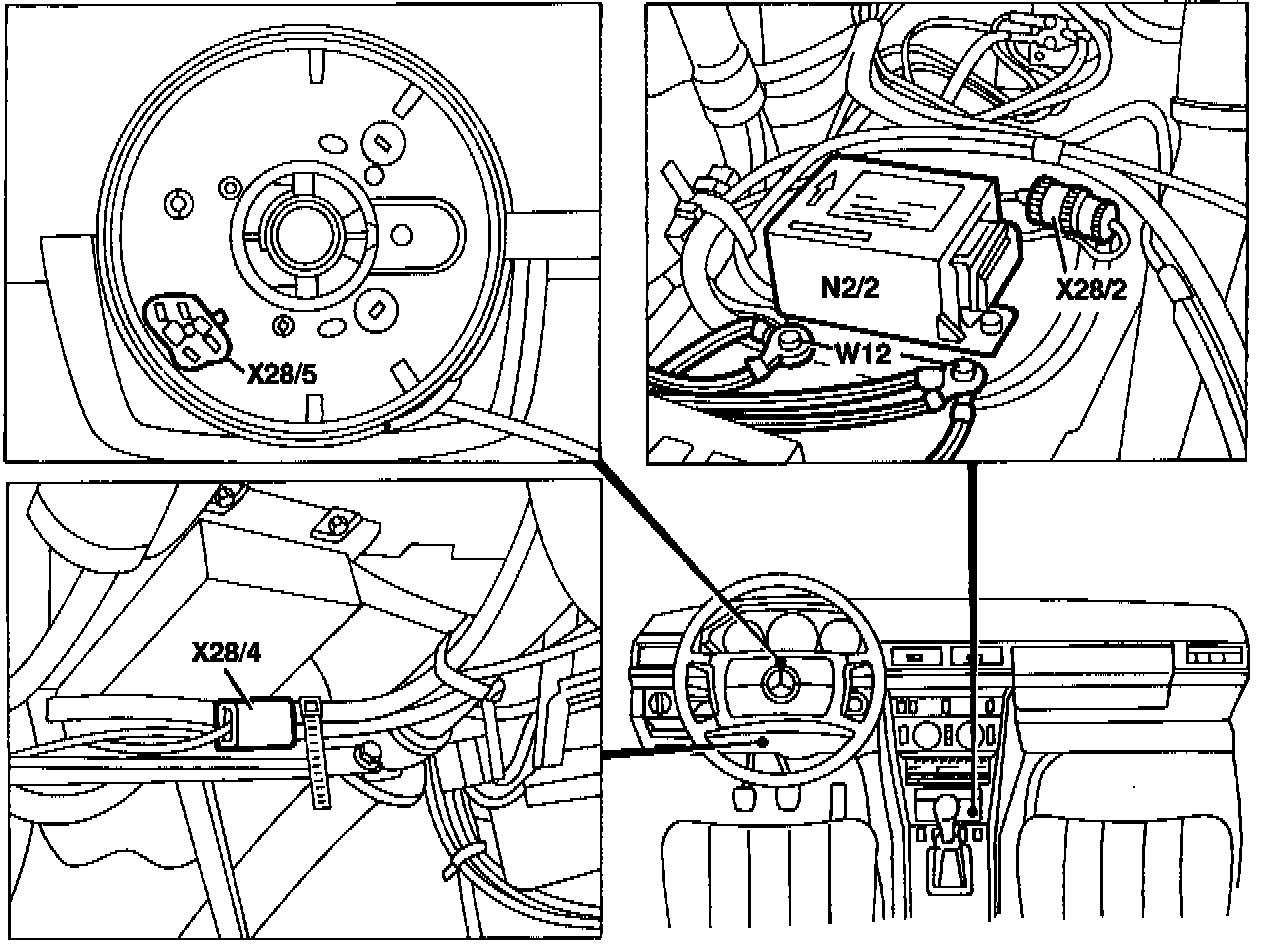

X28/2 SRS voltage supply connector
X28/4 Driver airbag squib connector
X28/5 Airbag squib slip ring

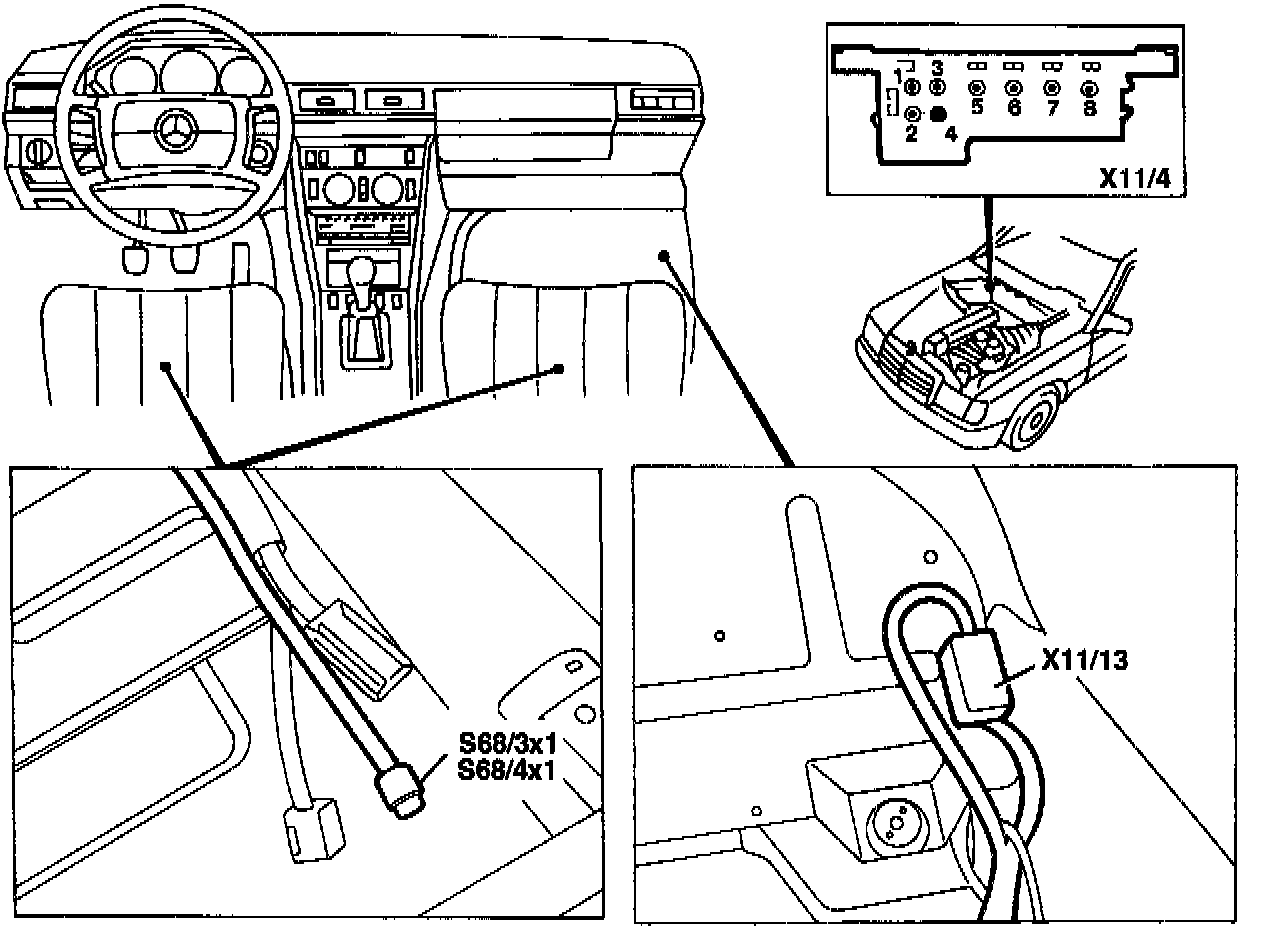

S68/3x1 Left front seat belt buckle switch connector
S68/4x1 Right front seat belt buckle switch connector
X11/4 Data link connector (8-pole)
X11/13 ETR test connection (10-pole)

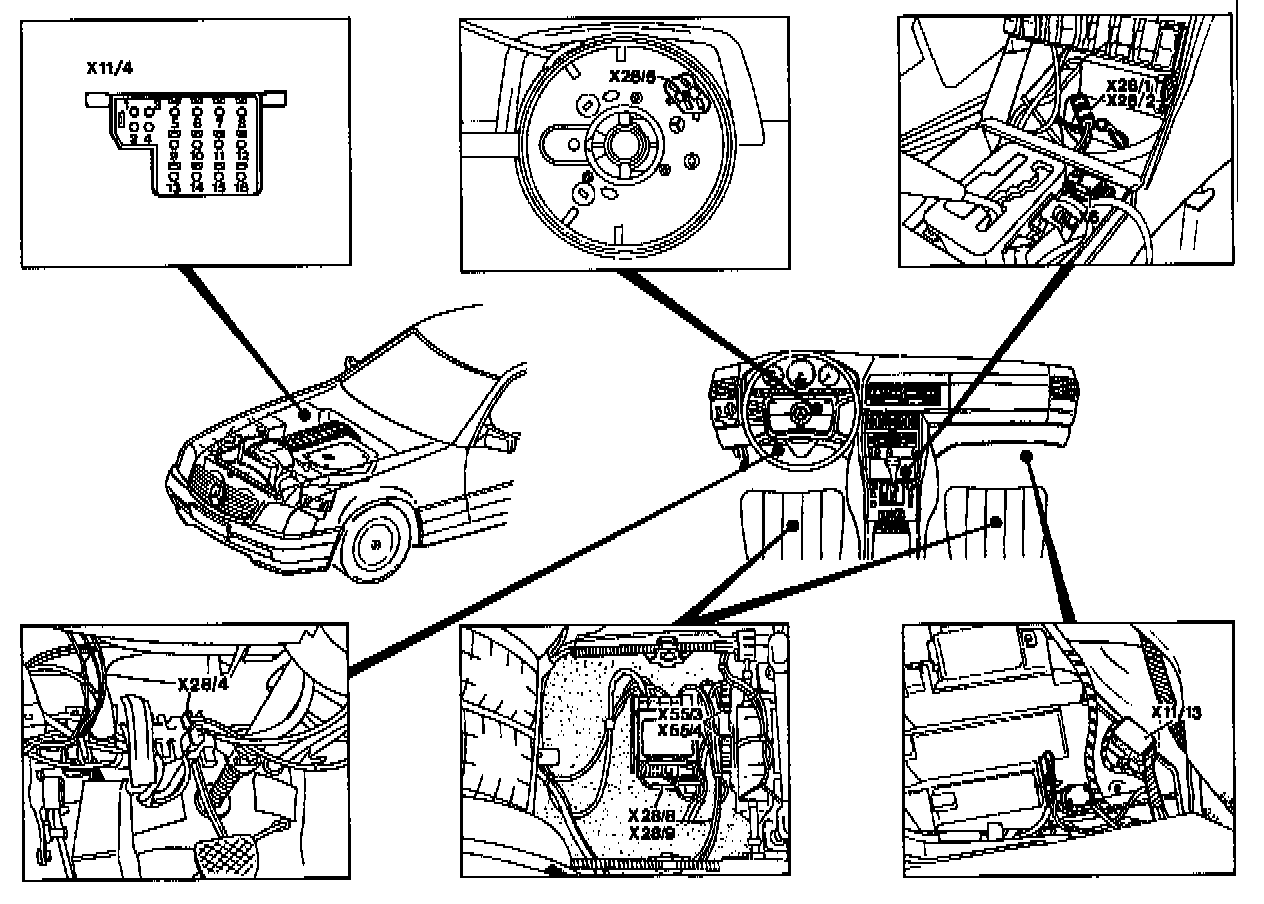

X11/4 Data link connector (DTC readout)
X11/13 ETR test connection
X28/1 ETR voltage supply connector
X28/2 SRS voltage supply connector
X28/4 Driver airbag squib connector
X28/5 Airbag squib slip ring
X28/8 ETR connector (left seat plug connection)
X28/9 ETR connector (right seat plug connection)
X55/3 Left seat contact strip
X55/4 Right seat contact strip
