Seat Belt Buckle: Service and Repair

- Remove driver's and/or passenger's seat.
- Pull covering on fixed (as opposed to reclining) seat fitting sideways and remove.

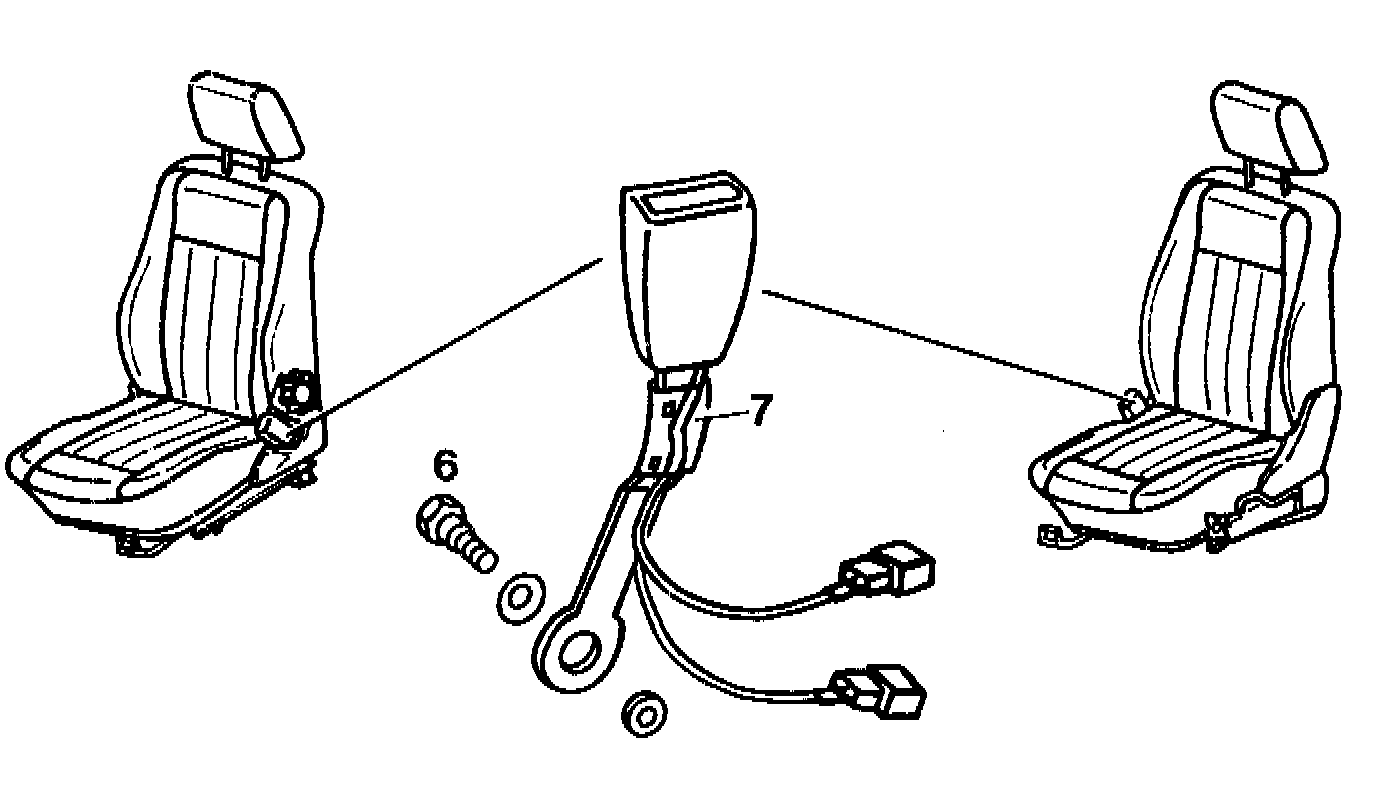

- Unscrew bolt (6) on belt buckle.
- In vehicles with airbag, belt warning (on model 107 with airbag, belt warning only), disconnect cable straps under seat cushion.
- Remove complete seat buckle (7) with cable.

Installation is the reverse of the removal procedure.
