Airbag - Replacement Parts Precaution

90mercedes05
TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: November 1990


SUBJECT: REPLACEMENT DRIVER AIRBAG
REF. NO. 91/45
Since the introduction of Model 129, two types of driver airbag modules are available from the PDC'S. In case of repairs, both modules have identical mountings, therefore the proper model application must be observed.

Figure 1All models except R129:

Application

The driver airbag, part number 124 460 03 98, must be used for models 107, 124, 126 and 201 (Figure 1)

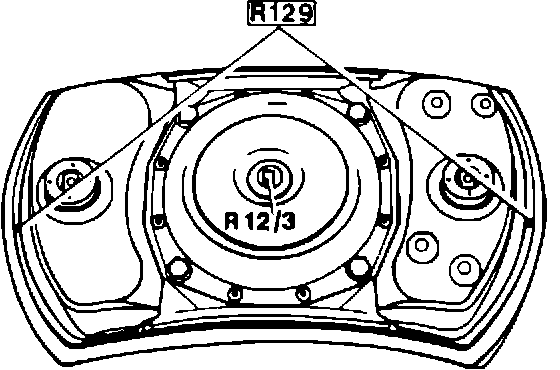

Figure 2R129 Identification:

The driver airbag, part number 129 460 00 98, must be used for model 129 only (Figure 2).

Note: This driver airbag can be recognized by markings R129, embossed at the left and right side of the unit, also visible when installed.

When ordering, also state correct interior trim color code.
