Fuel Pump Relay: Service and Repair

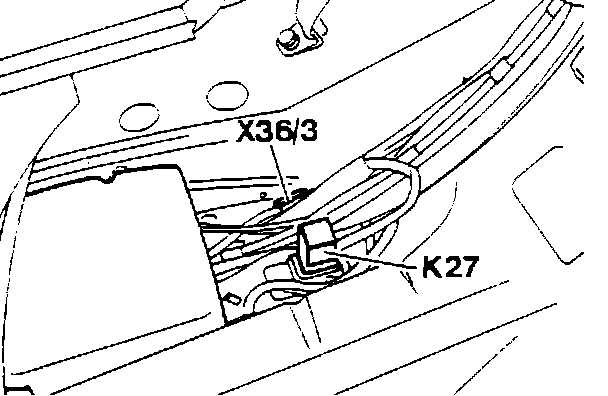

Fuel Pump Relay (K27) Location:

1. Turn ignition switch OFF.
2. Access relay
6 Cylinder located in engine compartment
V 8 located on right below rear bench seat.
3. Remove fuel pump relay (K27).
4. Install in reverse order.
