Warning Module

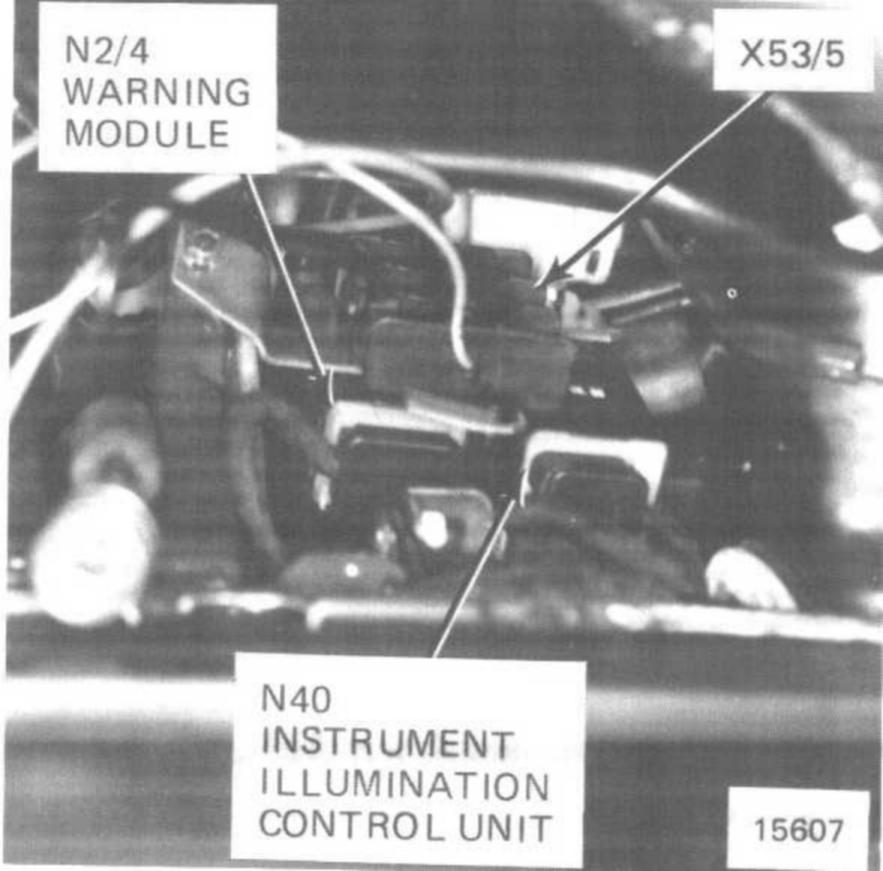

Component Location





Component ID N2/4
Component Name Warning module (seat belts, keys, lights)
Location Behind right side of instrument cluster
