Control Unit: Locations

Component Location

Diesel Engines:

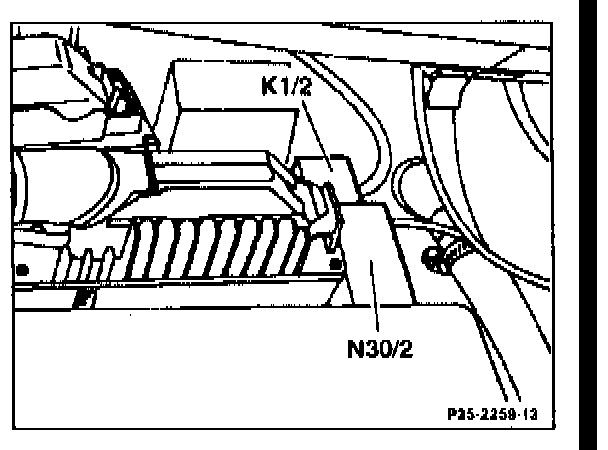

Component ID N30/2
Component Name ASD control unit
Location Right side of component compartment, behind battery
