Electronic Engine Controls/Transmission Shift-Point Relay

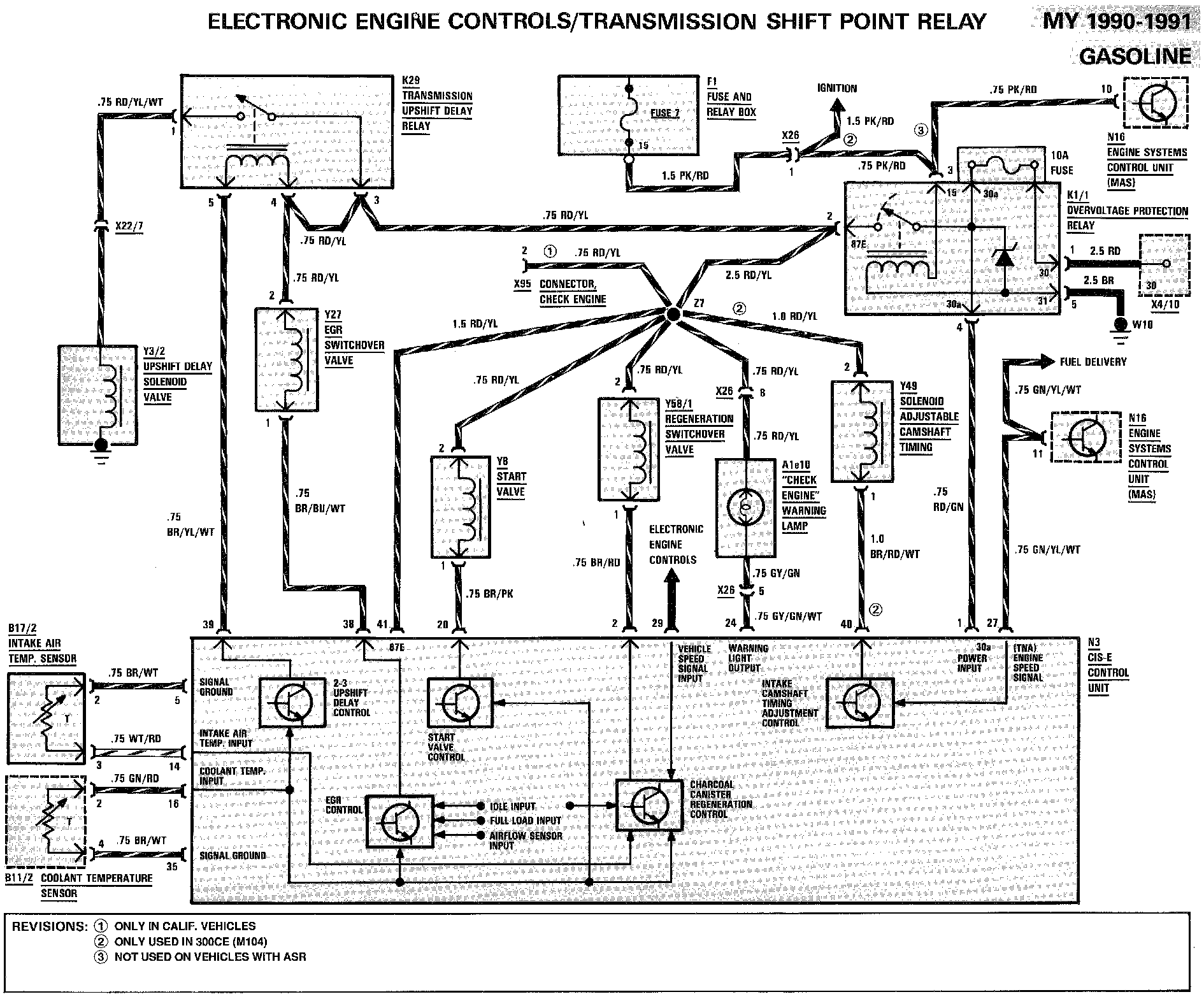

Electronic Engine Controls/Transmission Shift Point Relay:
