Kickdown Switch

Component Location

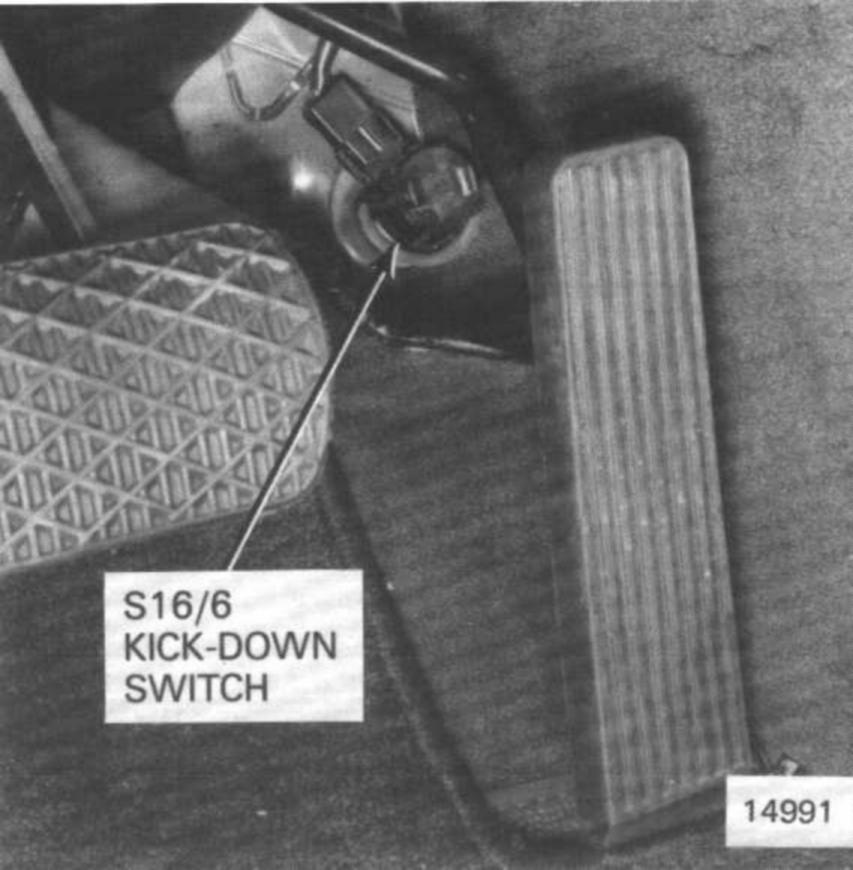

Component ID S16/6
Component Name Kickdown switch
Location Under top of accelerator pedal


Component ID S16/7
Component Name Kickdown switch/transmission mode
Location Under top of accelerator pedal
