Barometric Pressure Sensor
>>
Testing and Inspection
>>
Component Testing
Component Testing

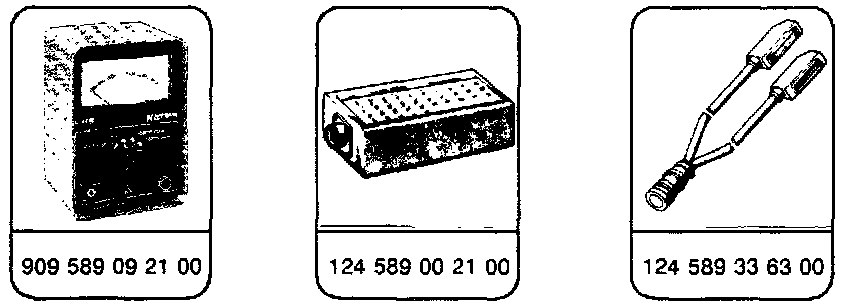

Special Tools:
Equipment
-
Digital multimeter -- SUN DMM-5, Fluke model 23

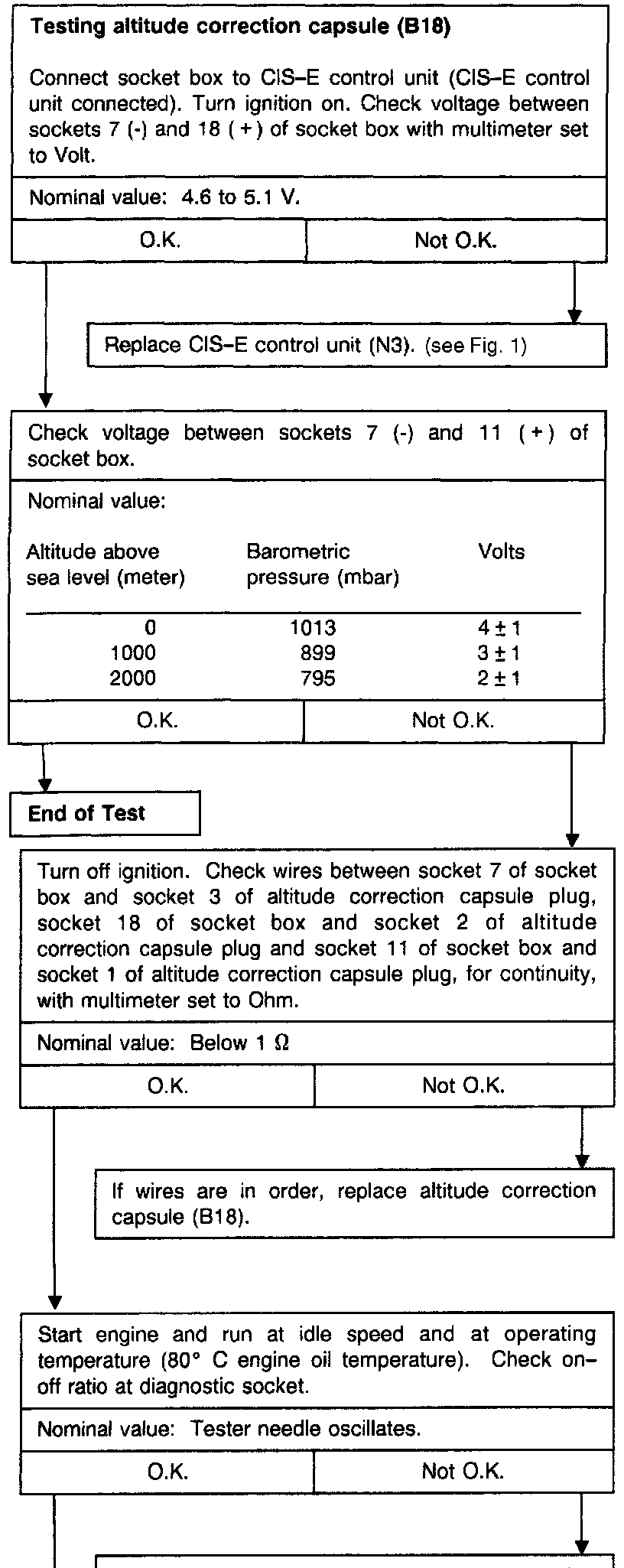

���Test Procedure:

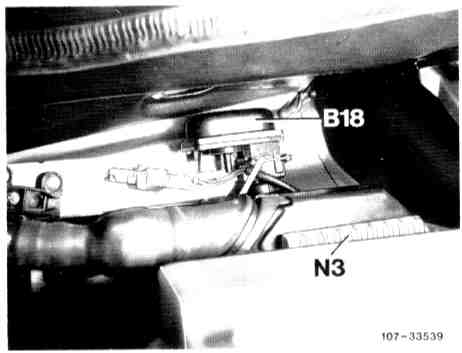

Fig. 1:
