Ignition Coil: Locations

Component Location

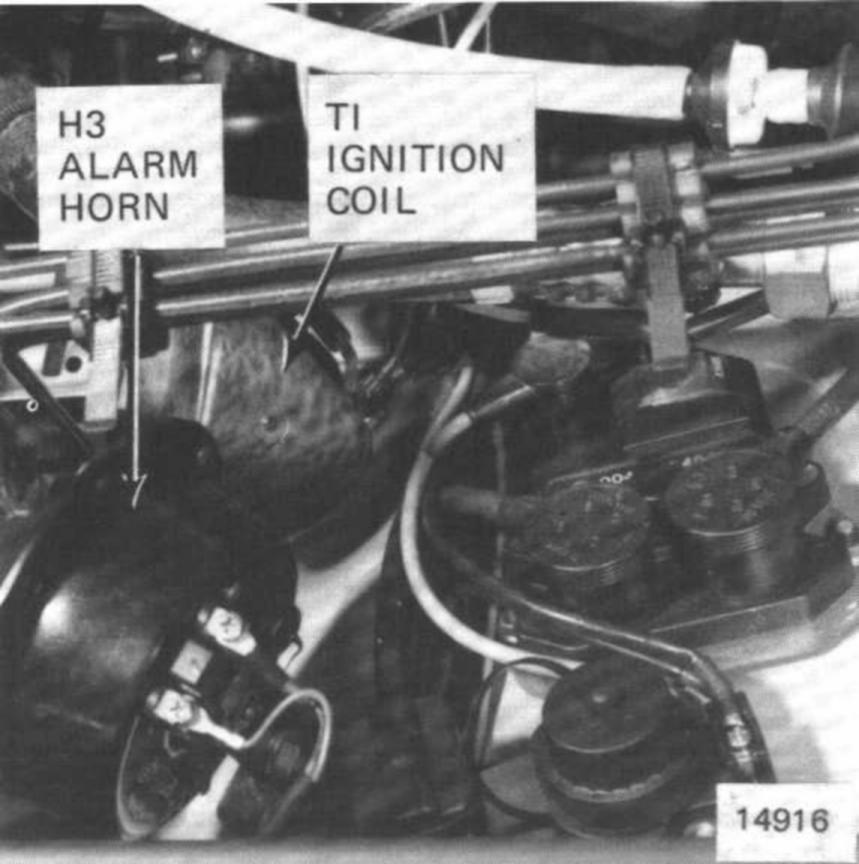

Component ID T1
Component Name Ignition coil
Location Left side of engine compartment

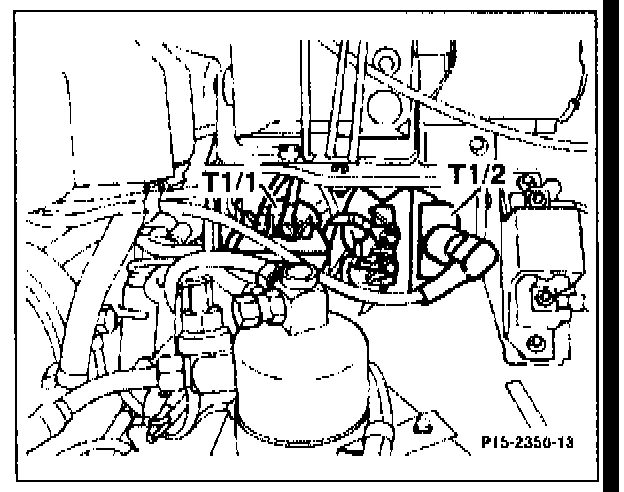

Component ID T1/1, T1/2
Component Name Ignition coil 1 (right cylinder bank) & Ignition coil 2 (left cylinder bank)
Location Left side of engine compartment, behind headlamp
