Calibration Resistor / Connector: Locations

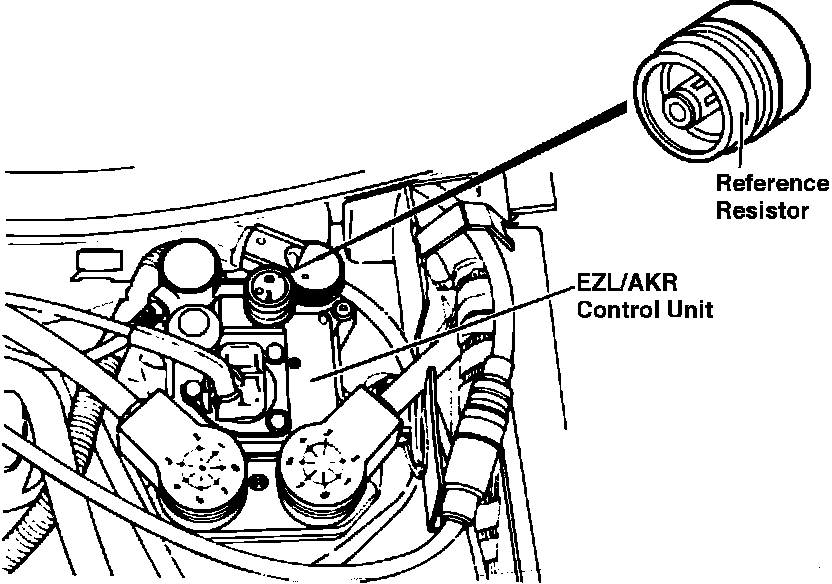

Reference Resistor Location:
The EZL/AKR reference resistor plug is located on the EZL/AKR control unit.
