Idle Speed Too HIgh

07.3-87013 Idle Speed Too High Engines 102,103, Revised 1/88 1/87
116,117

Cause;

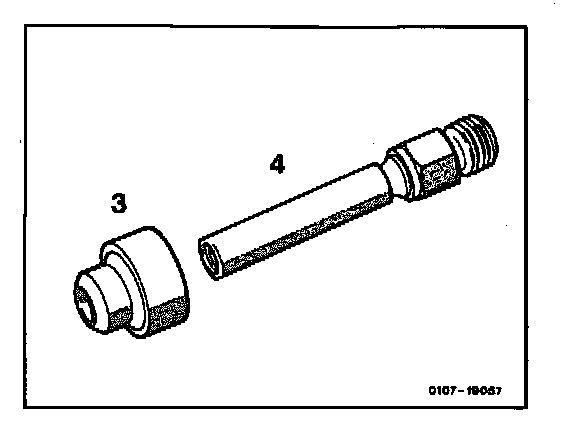

Air leak at rubber seal rings (3) of fuel injection valves.





Remedy:
Check fuel injection valves for air leaks. Replace rubber seal rings (3) as necessary.

Cause: (Engine 116/117 only)
Defective electronic idle speed control unit.

Remedy:
Install new electronic idle speed control unit.
