Fuel Distributor: Locations

Component Locations:

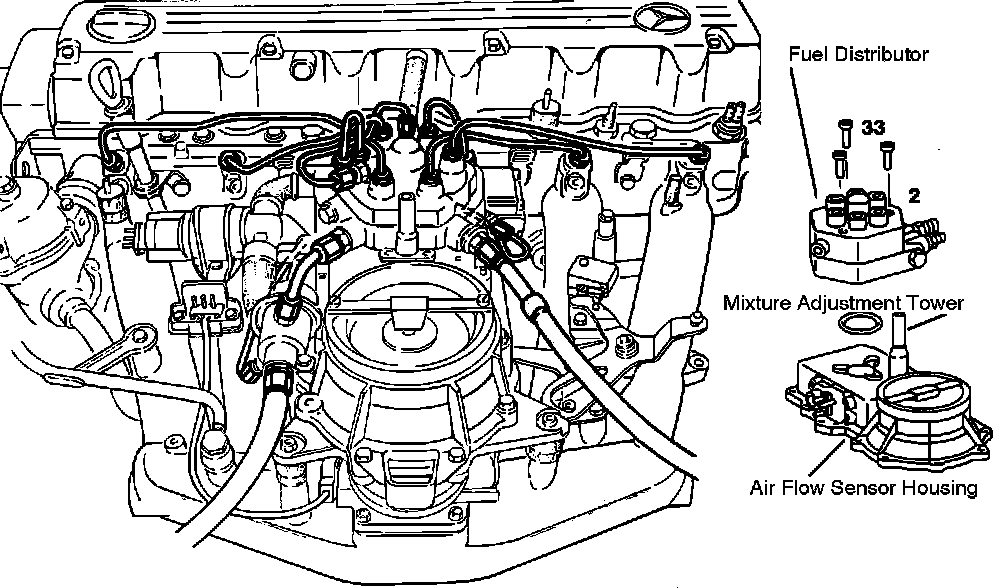

The CIS-E fuel distributor is fitted to the air flow senor housing.
