Fuel Cooler: Locations

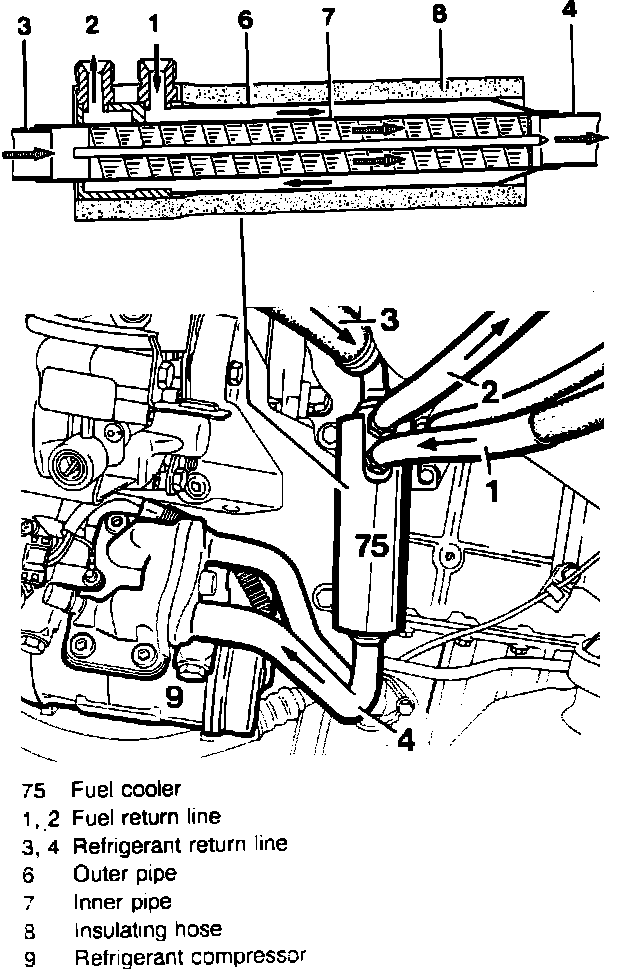

Fuel Cooler Assembly:

The fuel cooler is fitted to the refrigerant return line between the evaporator and the A/C compressor.
