AR30.12-P-3022D Remove/Install Firewall Pivot Point With Accelerator Pedal Lever

AR30.12-P-3022D Remove/install Firewall Pivot Point With Accelerator Pedal Lever
- MODEL 124, 129, 140, 202, 461, 463 (except , 461.304 /305 /333 /334 /340 /343 /344 /346, 463.244 /245 /247 /248 /249 /250 /254 /306 /309 /322 /323 /332 /333 /336 /346)

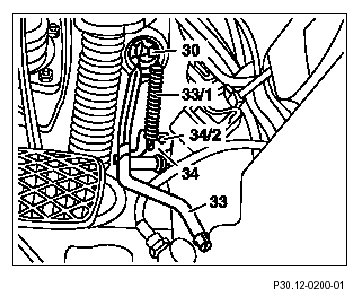

Models 124, 463, 461

Illustrated on model 124










30 Linkage cable
33 Accelerator pedal lever
33/1 Retracting spring
34 Firewall pivot point
34/2 Bolts
Arrow Locking pin

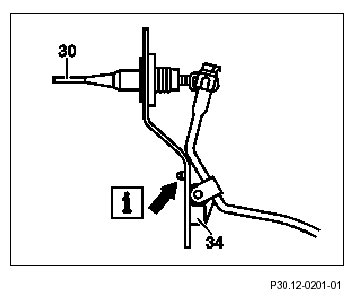

Models 129, 140, 202







33 Accelerator pedal lever
34 Fire wall pivot point
34/1 Fuse
34/3 Retaining ring
