Fillpipe Restrictor: Service and Repair

WARNING: Risk of explosion. Pay attention to accident prevention regulations.

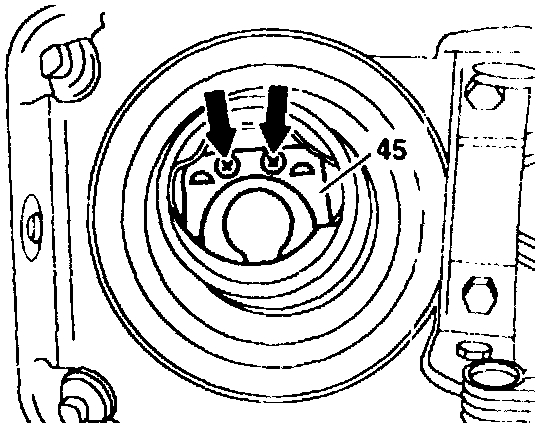

- Rivets, pull out of guide funnel.

NOTE: Ensure no rivets drop into the fuel tank. They prevent proper operation of the splash pot (reserve quantity cannot be used).

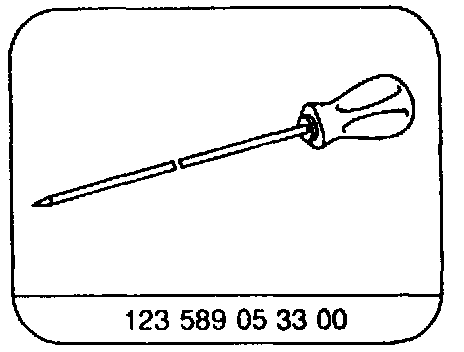

- 45 Guide funnel, installation: knock in rivets with a drift.
