EGR Valve: Locations

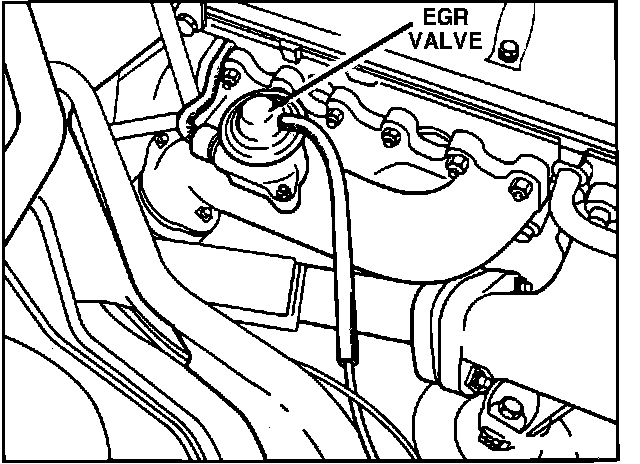

Fig. 81 EGR Valve Location:

EXCEPT MODELS 300 CE, SL

The EGR valve is bolted to the exhaust manifold for cylinders 1-3.

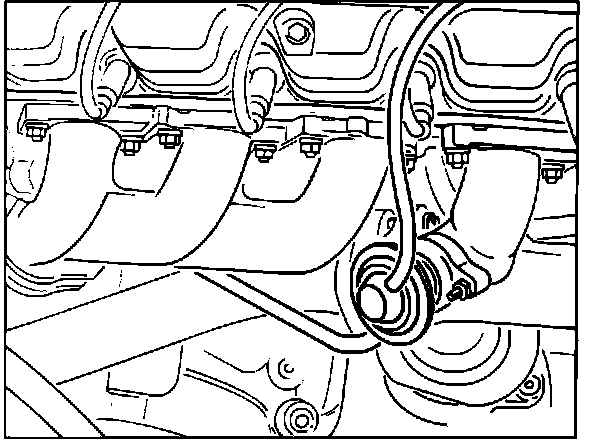

Fig. 107 EGR Valve Location:

MODELS 300 CE, SL

The EGR valve is bolted to the exhaust manifold for cylinders 4-6.

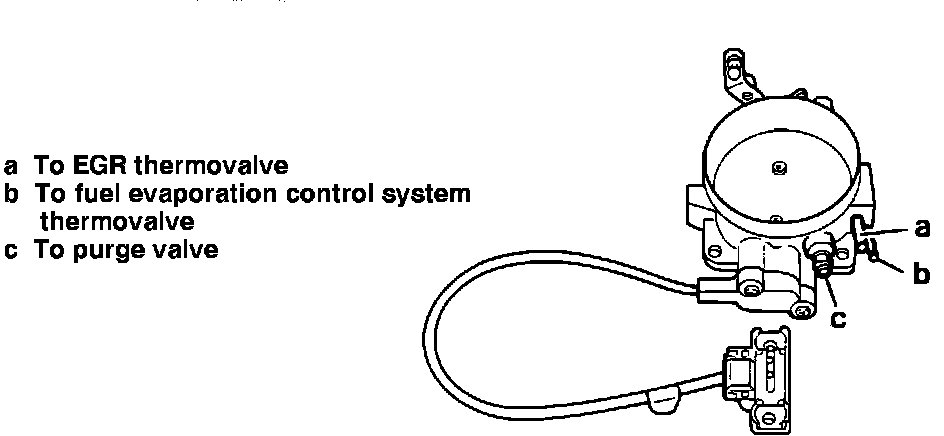

Fig. 46 Vacuum Port Location:

The EGR vacuum source is located on the throttle valve.

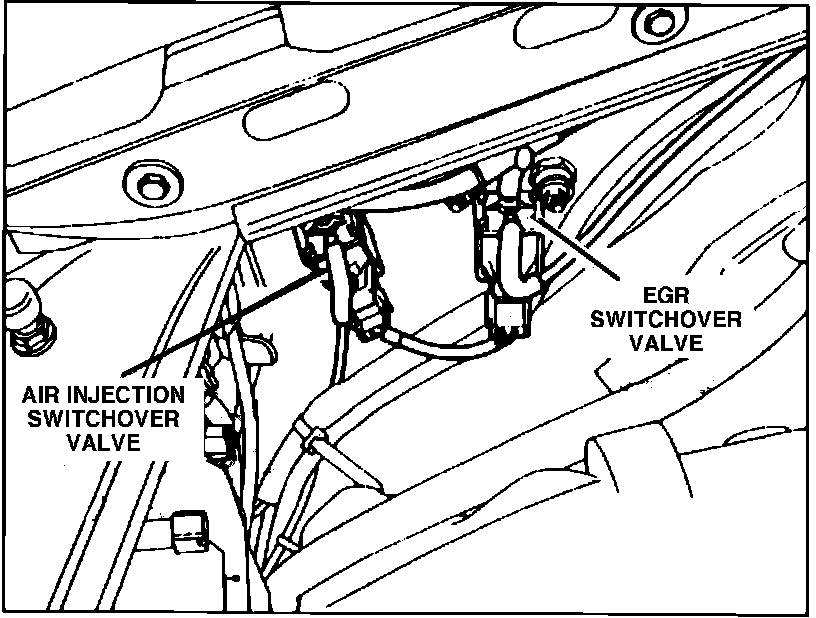

Fig. 109 Switchover Valve Locations:

EXCEPT MODEL 300 SL

The EGR switchover valve is located on the right front inner fender.

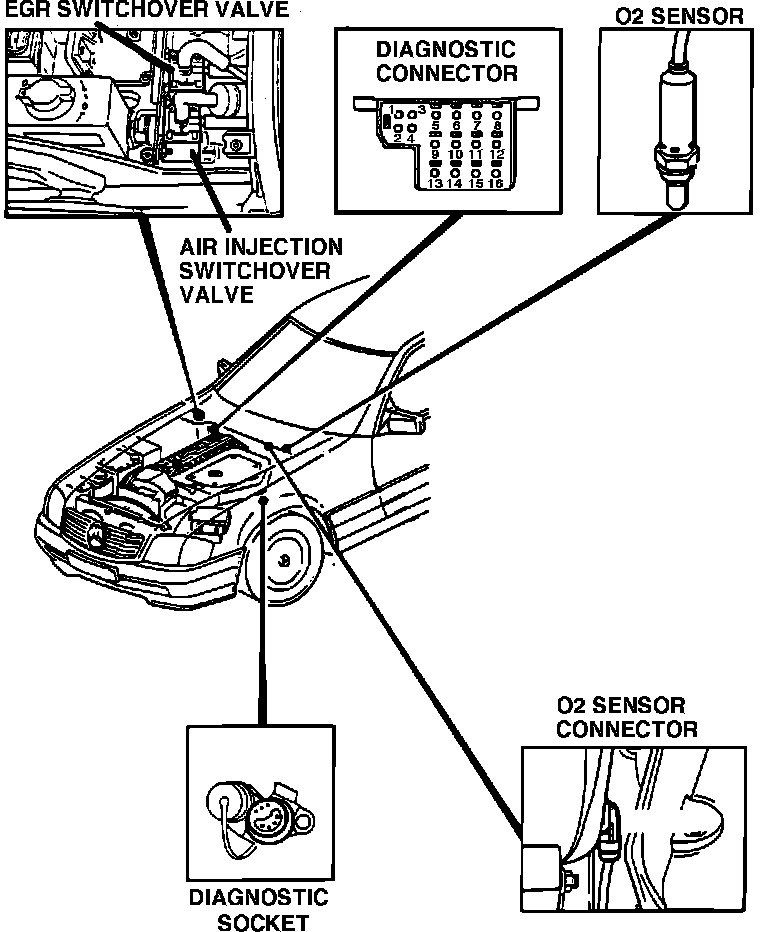

Fig. 106 Component Locations:

MODEL 300 SL

The EGR switchover valve is located in the control unit compartment.
