EGR Control Solenoid: Locations

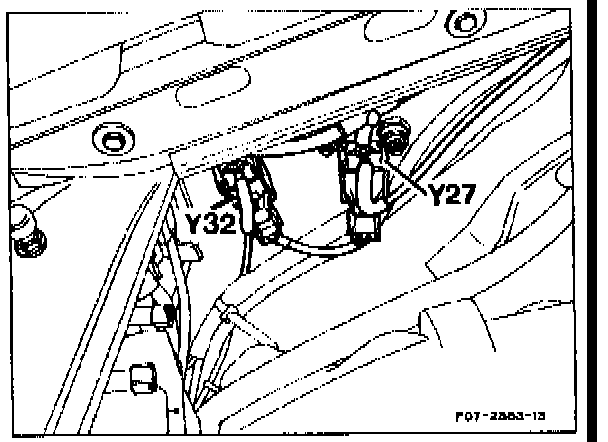

Component Location

Component ID Y27
Component Name EGR switchover valve
Location Right front fender, behind air filter housing
