EGR Backpressure Transducer: Locations

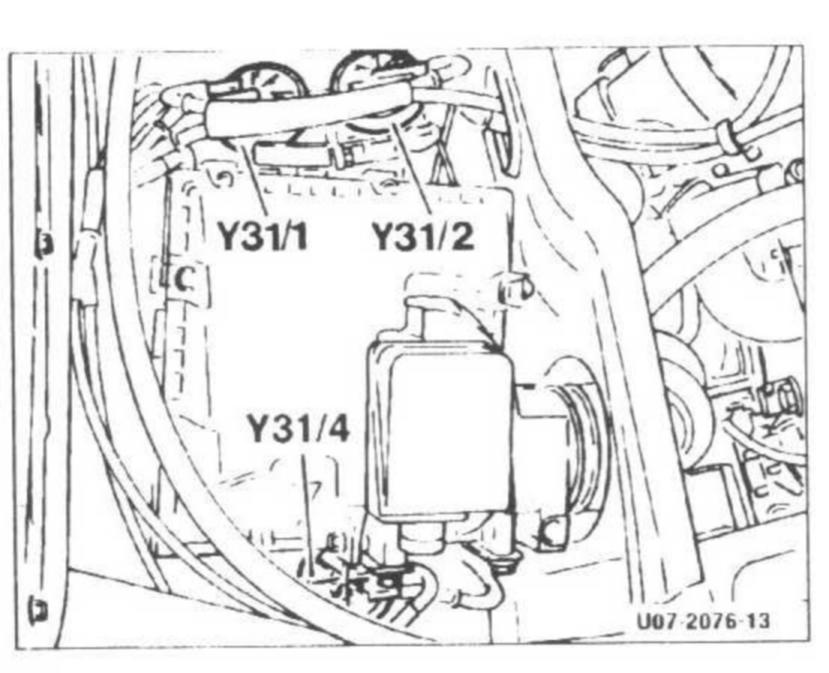

Component Location





Component ID Y31/1
Component Name EGR valve vacuum transducer
Location Right front fender, behind air filter housing
