Evaporative Emission Control Canister: Service and Repair

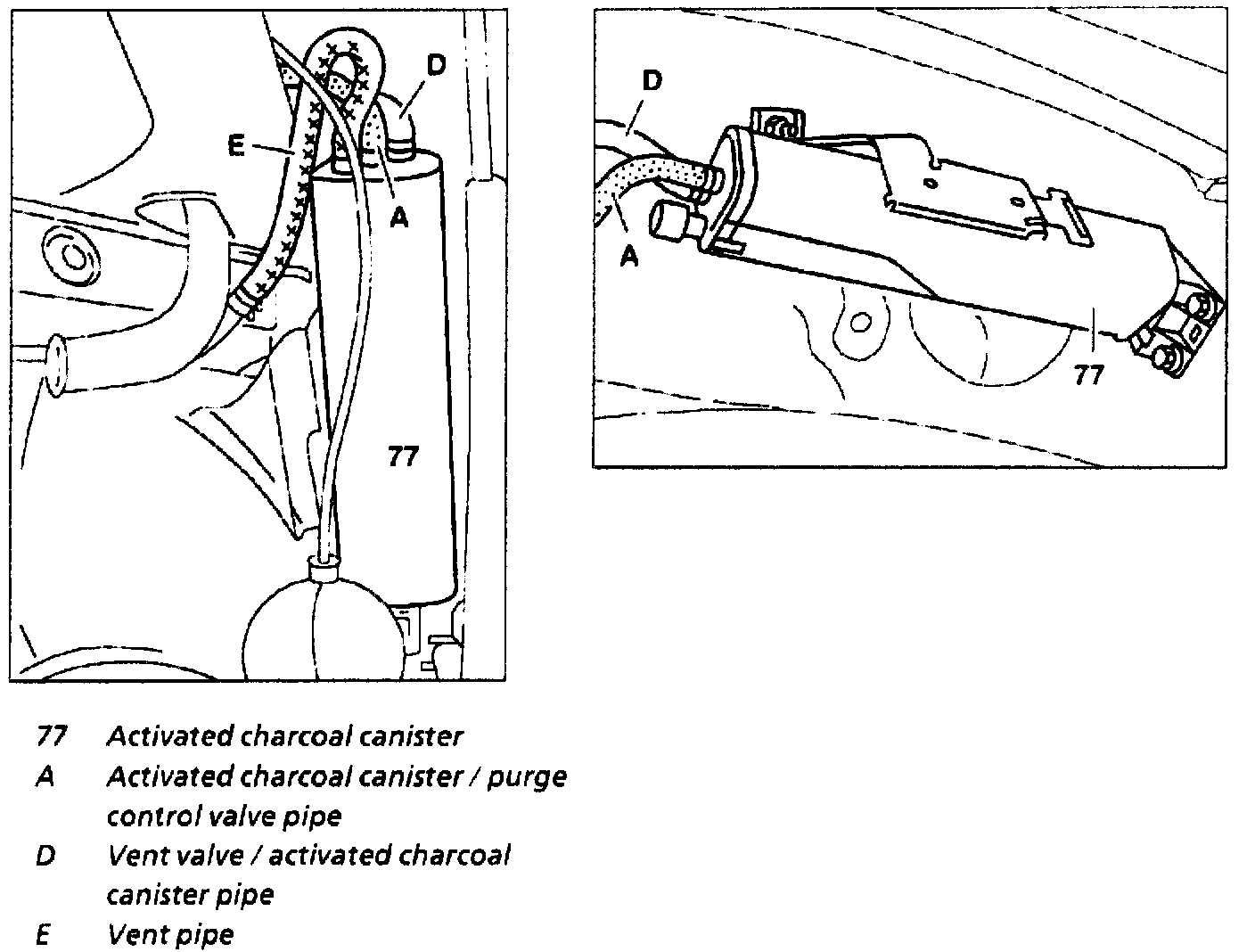

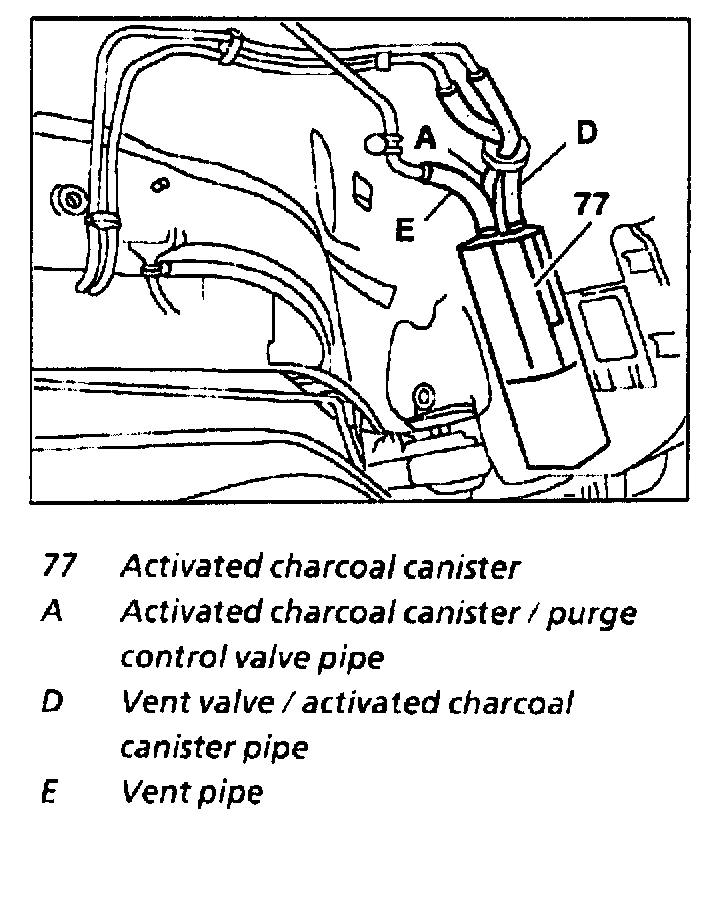

Left-hand illustration shown on model 124
Right-hand illustration shown on model 202, 208

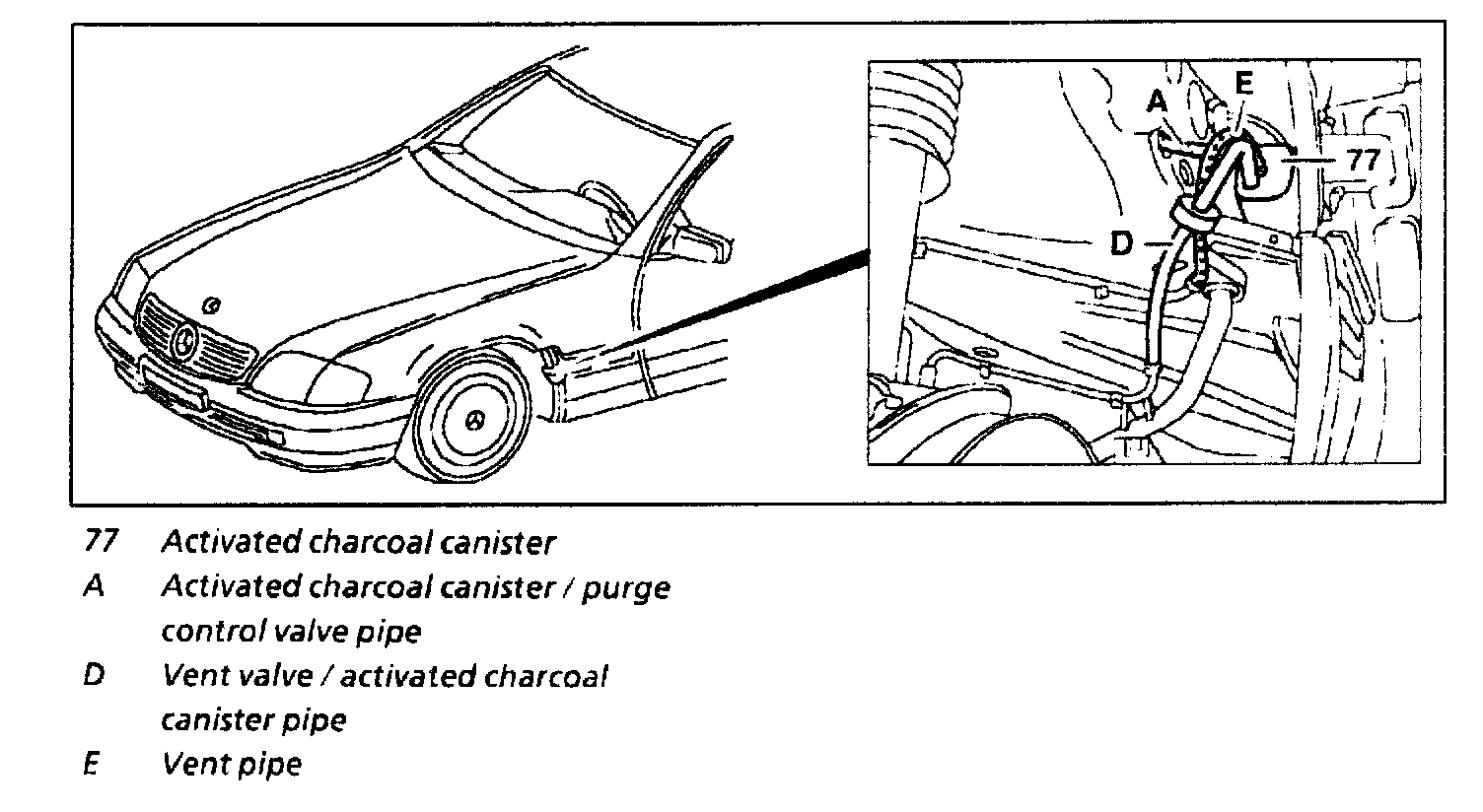

Model 129

Model 140 with 100 liter fuel tank

Model 140 with 90 liter fuel tank

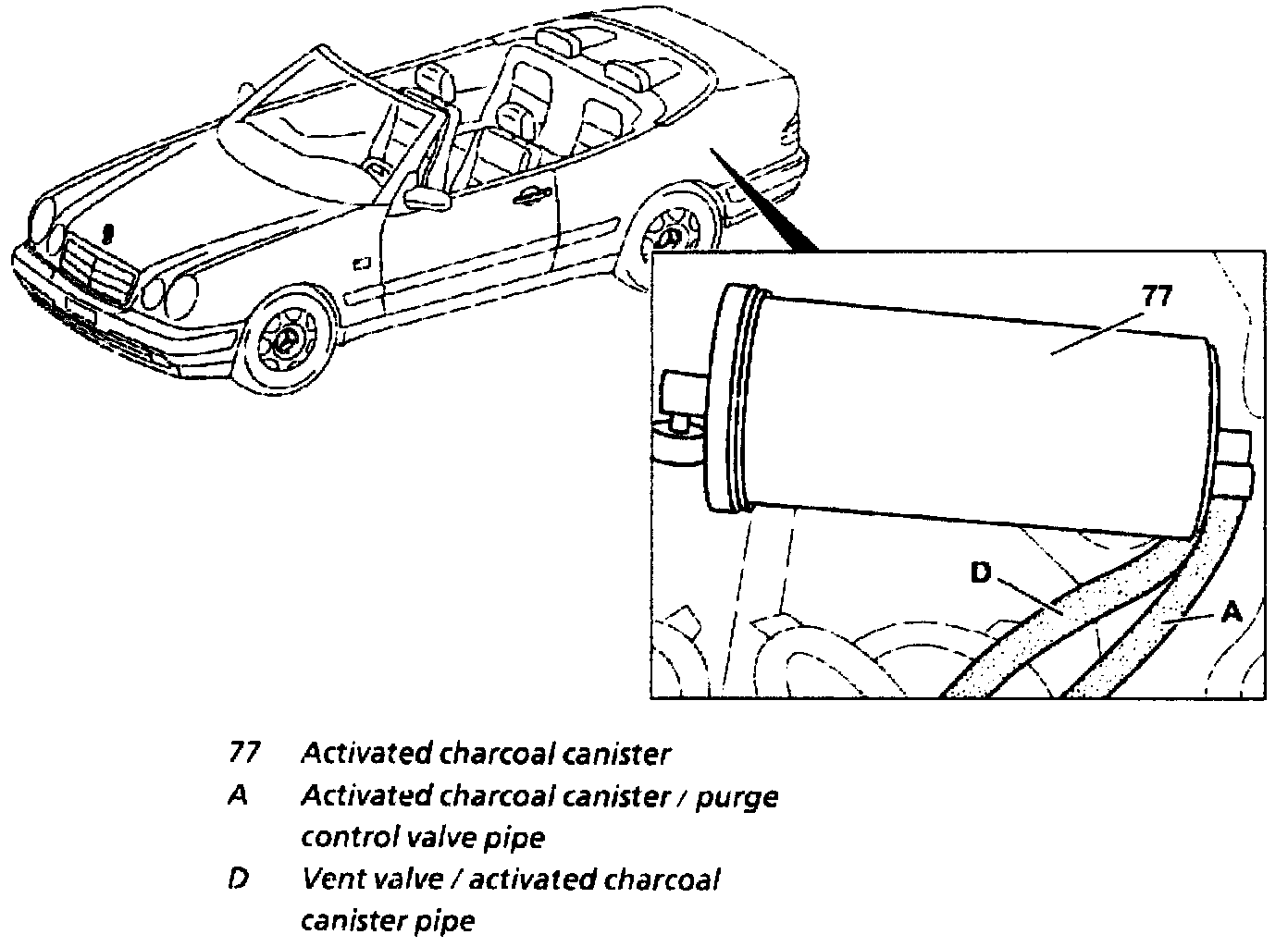

Model 208.4

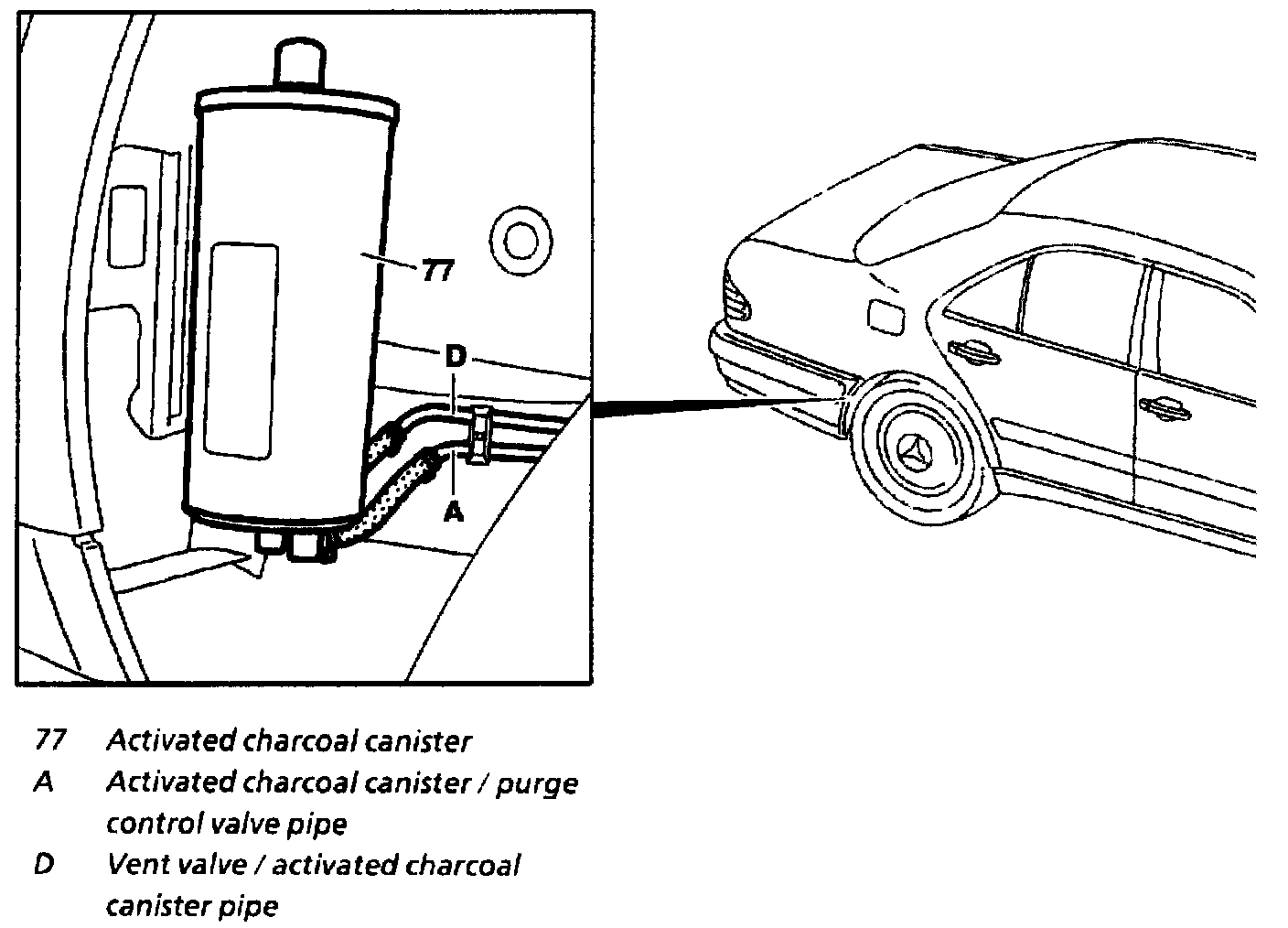

Model 210

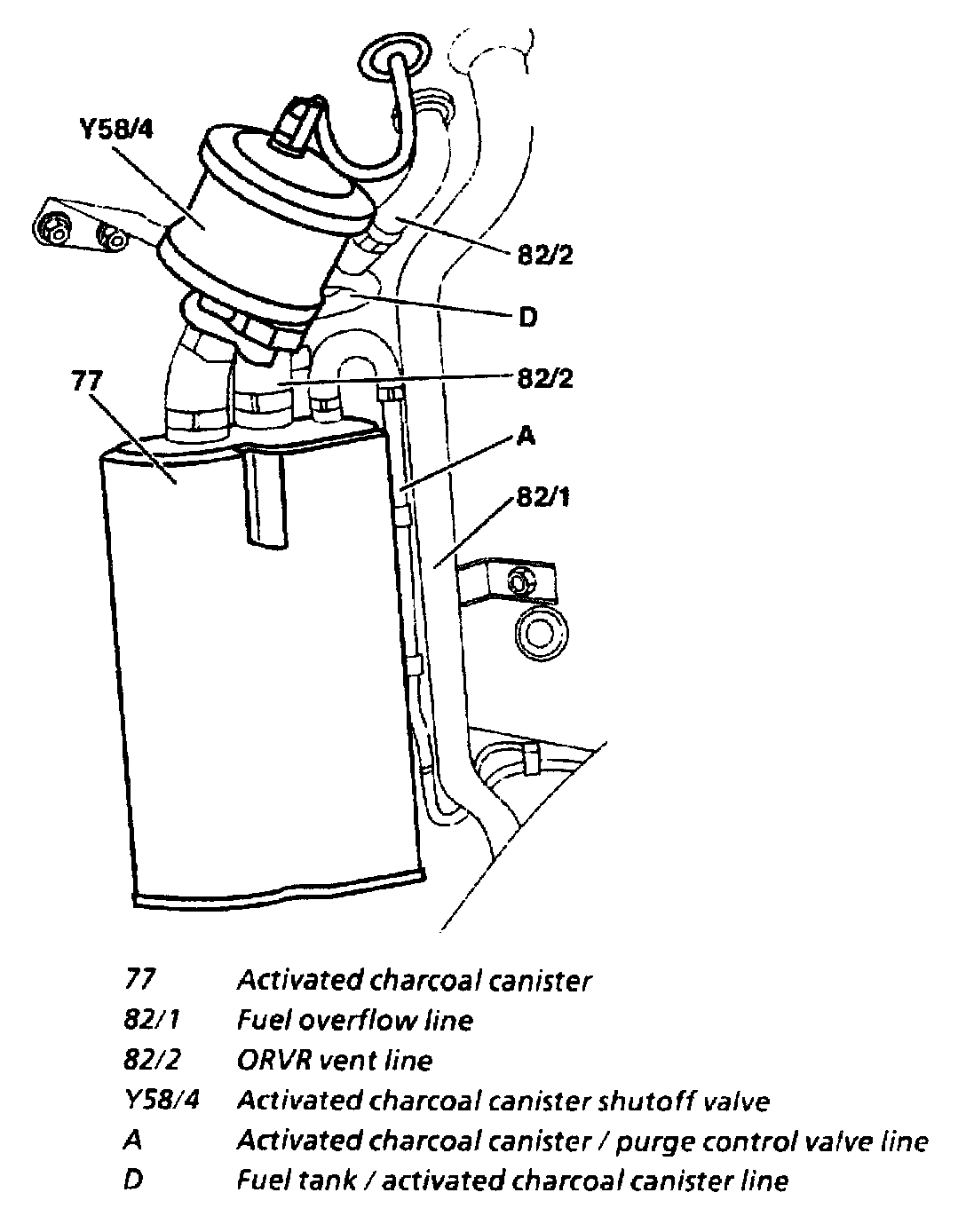

Model 210 (USA) up to MY 97

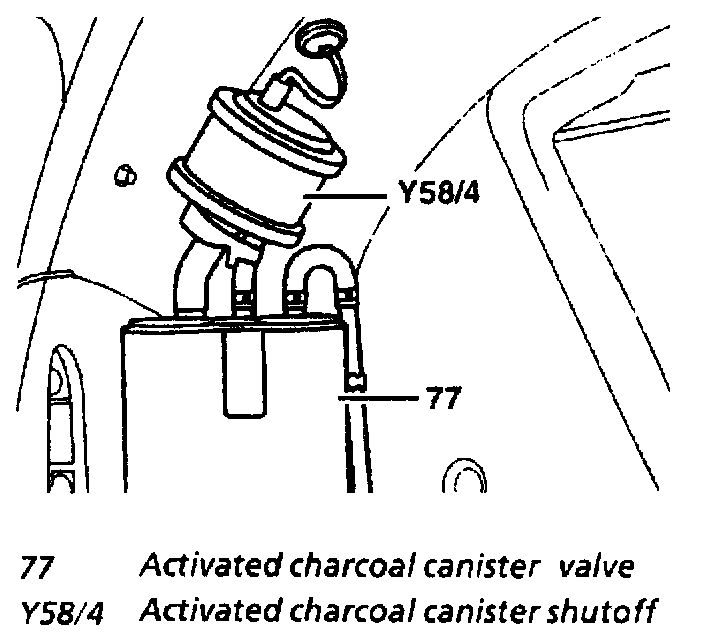

Model 210 (USA) as of MY 98

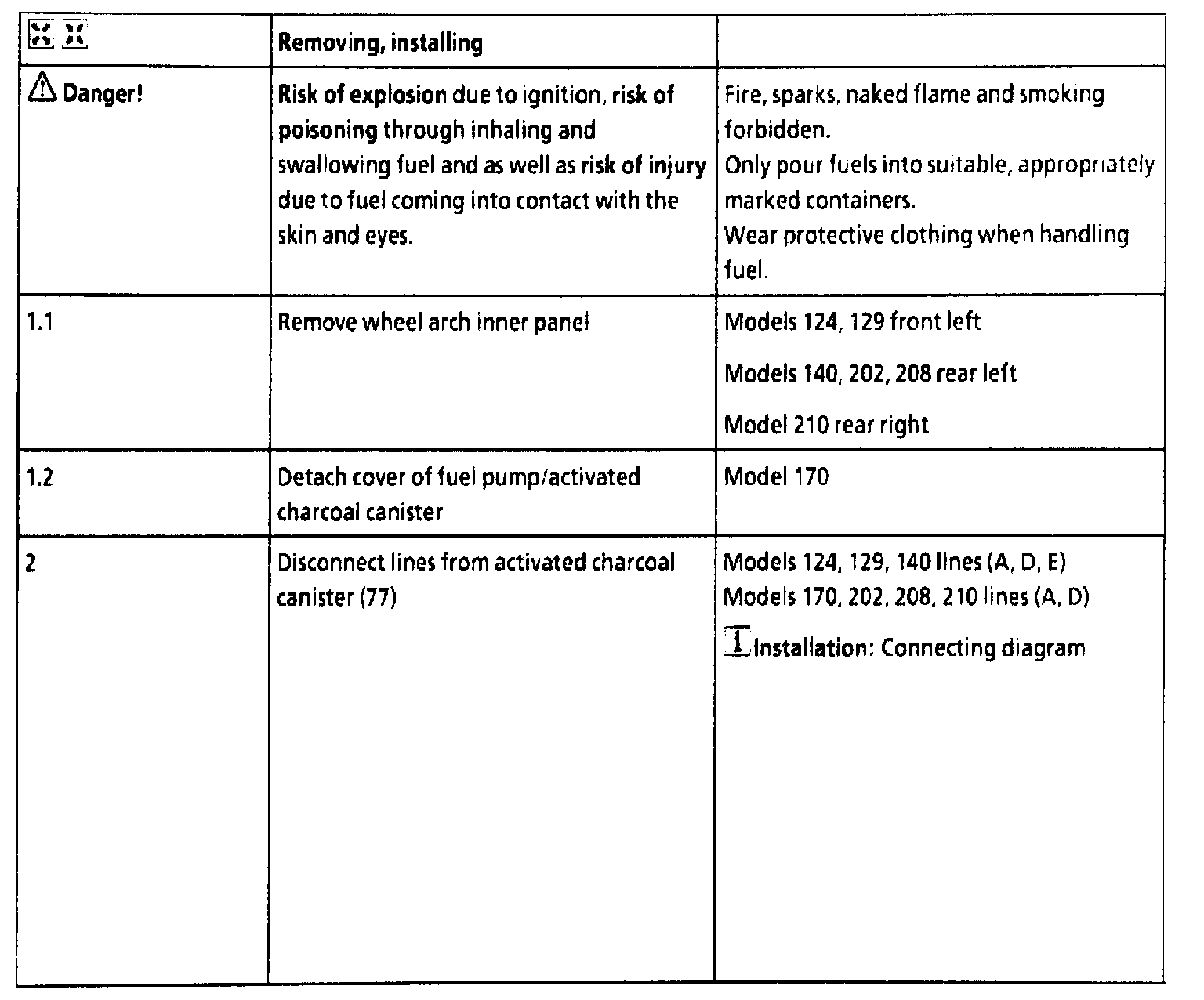

Removing, installing, Part 1 of 2

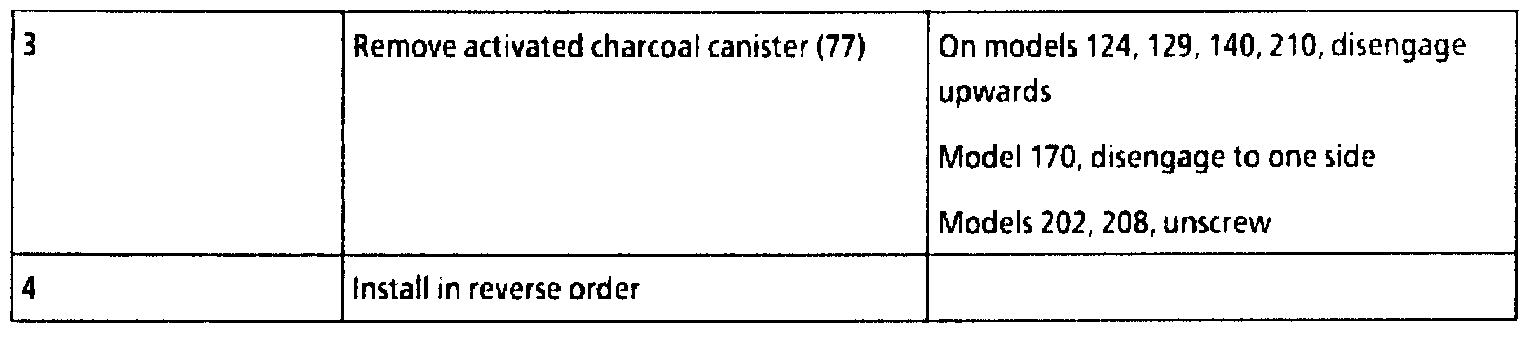

Removing, installing, Part 2 of 2
