Evaporative Emission Components (EVAP)

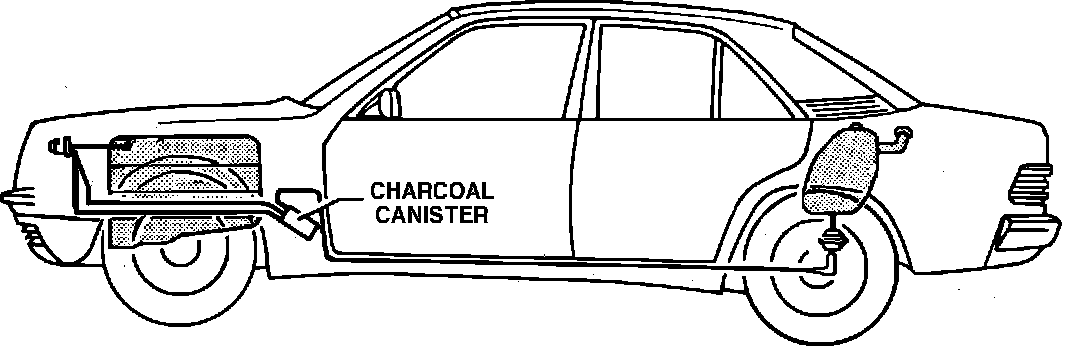

Fig. 117 Charcoal Canister Location:
EXCEPT MODEL 300 SL
The Charcoal Canister is located behind the left front wheel housing (removal of the plastic access cover is necessary).
Fig. 116 Charcoal Canister Location:
MODEL 300 SL
The Charcoal Canister is located behind the left front wheel housing (removal of the plastic access cover is necessary).
Fig. 110 Purge And Switchover Valve Locations:
EXCEPT MODEL 300 SL
The purge valve and the switchover valve are located on the left side of the firewall.

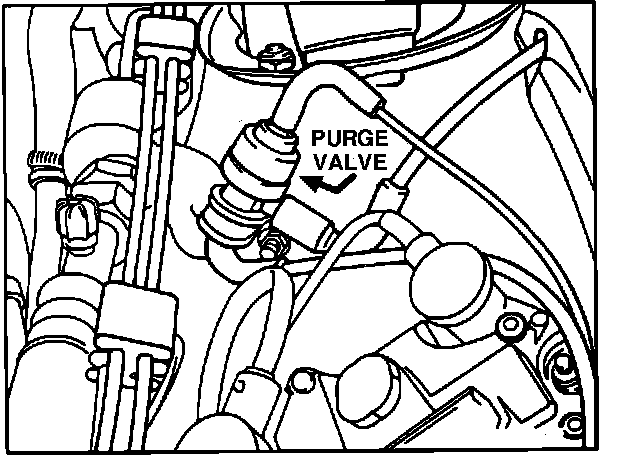

Fig. 112 Purge Valve Location:
MODEL 300 SL
The purge valve is located between the left strut tower and the ignition control unit.

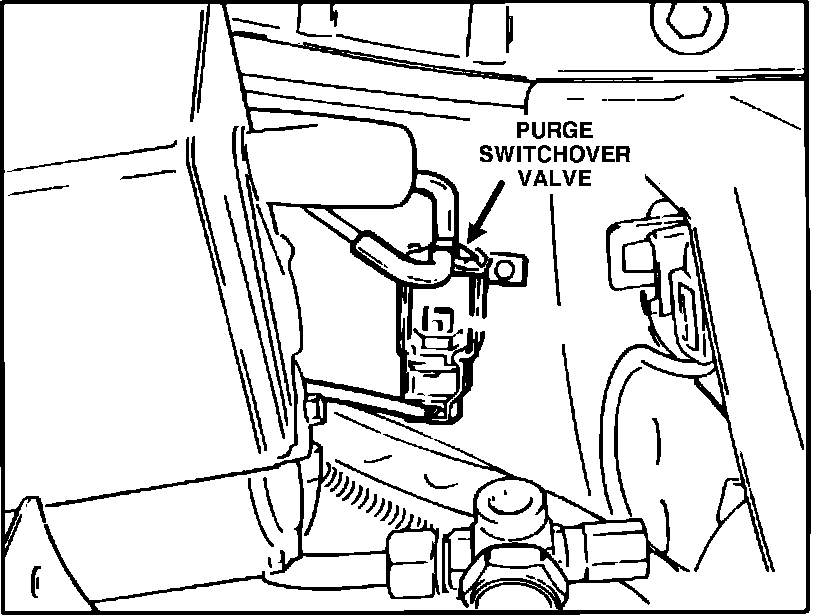

Fig. 111 Switchover Valve Location:
MODEL 300 SL
The purge switchover valve is located on the left inner fender wall.
Fig. 60 Breather Valve Location:
The breather valve is located at the rear of the car near the fuel tank.
