Air Injection Pump: Adjustments

Fig. 105 Belt Adjustment Locations:

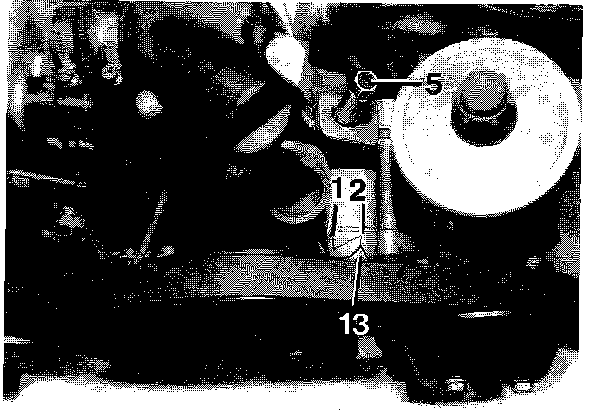

Fig. 101 Tension Device:

Fig. 103 Belt Routing:

1. Loosen bolt #16 approximate 1/4 to 1/2 turn.
2. Set the pointer (13) of the tension unit to mark #2
3. Turn the tensioning nut (5) clockwise until adjusting pointer is in alignment with mark #1.
4. Tighten bolt #16 to 75 Nm (17 ft. lbs.)
