Complaint Analysis
Complaint Analysis

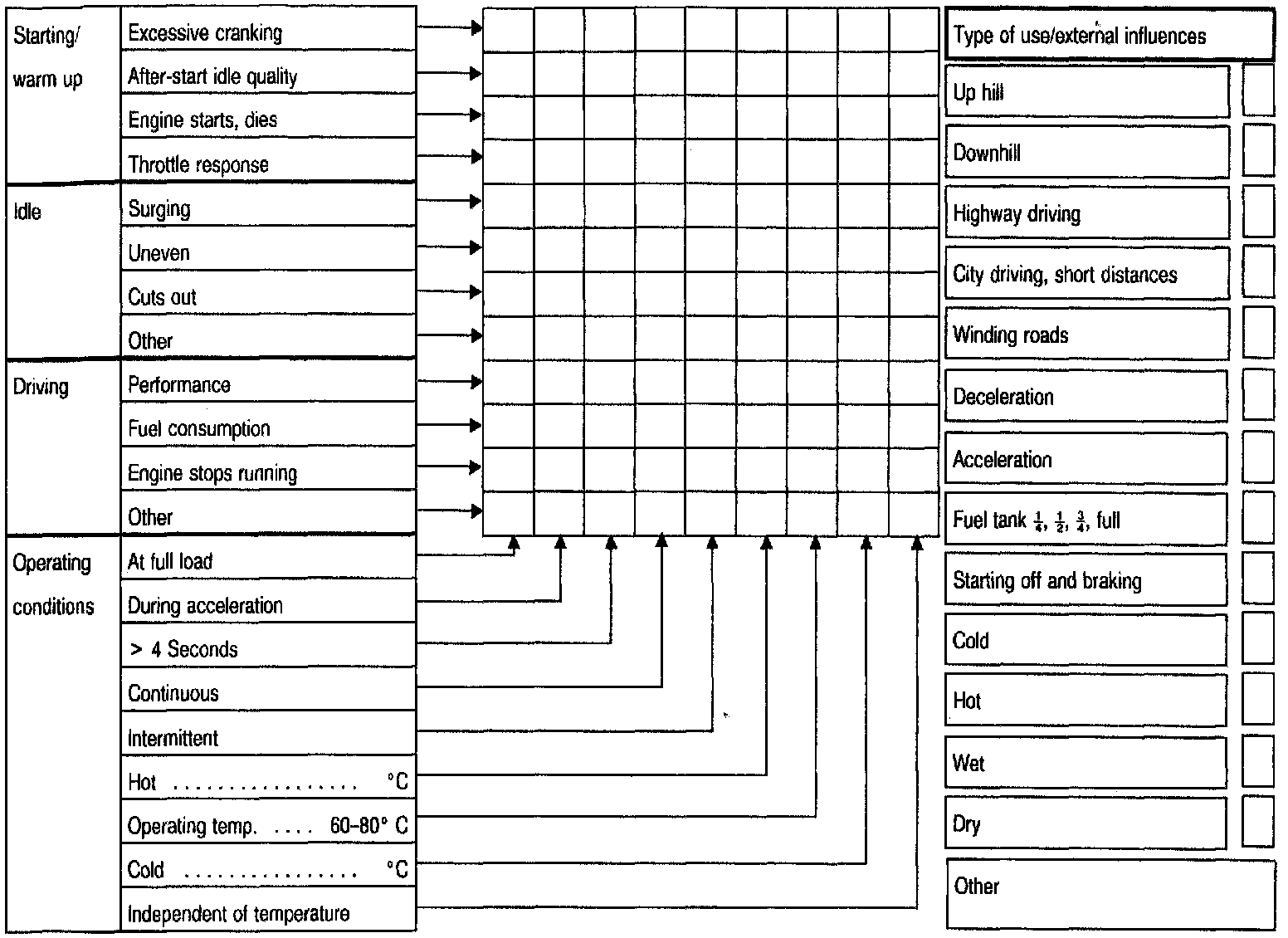

Complaint Analysis Form:
Make copies of this master form, which should be filled in according to customer complaint, noting the problem and under what conditions it occurs.
