Throttle Valve Switch Test

Special Tools:

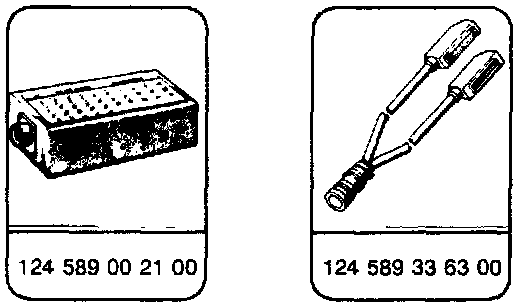

Special Tools

Equipment
- Digital multimeter -- SUN DMM-5, Fluke mode 23

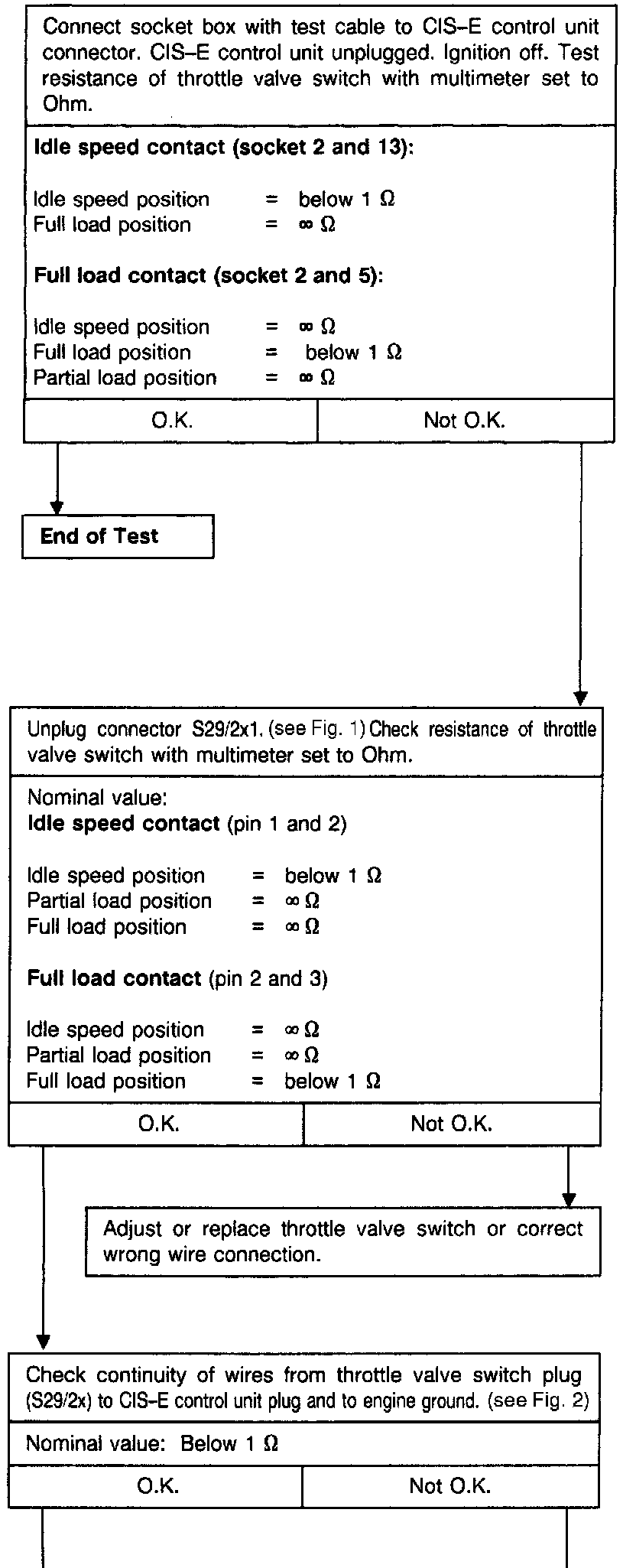

Fig. 1:

Fig. 2:

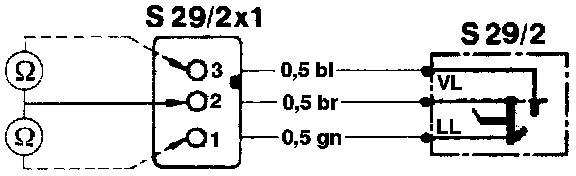

S29/2 Throttle valve switch, full load/idle

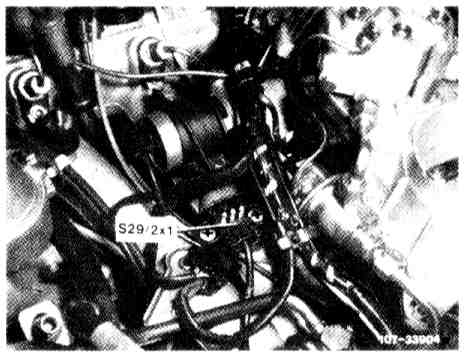

S29/2x1 Connector, throttle valve switch
1 Idle contact (LL)
2 Common
3 Full load contact (VL)

Color code
bl blue
br brown
gn green
