Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Test and Adjustment Data [Specifications] >> All Engines >> Test Data With Ignition ON and Starting RPM

Test Data With Ignition ON and Starting RPM

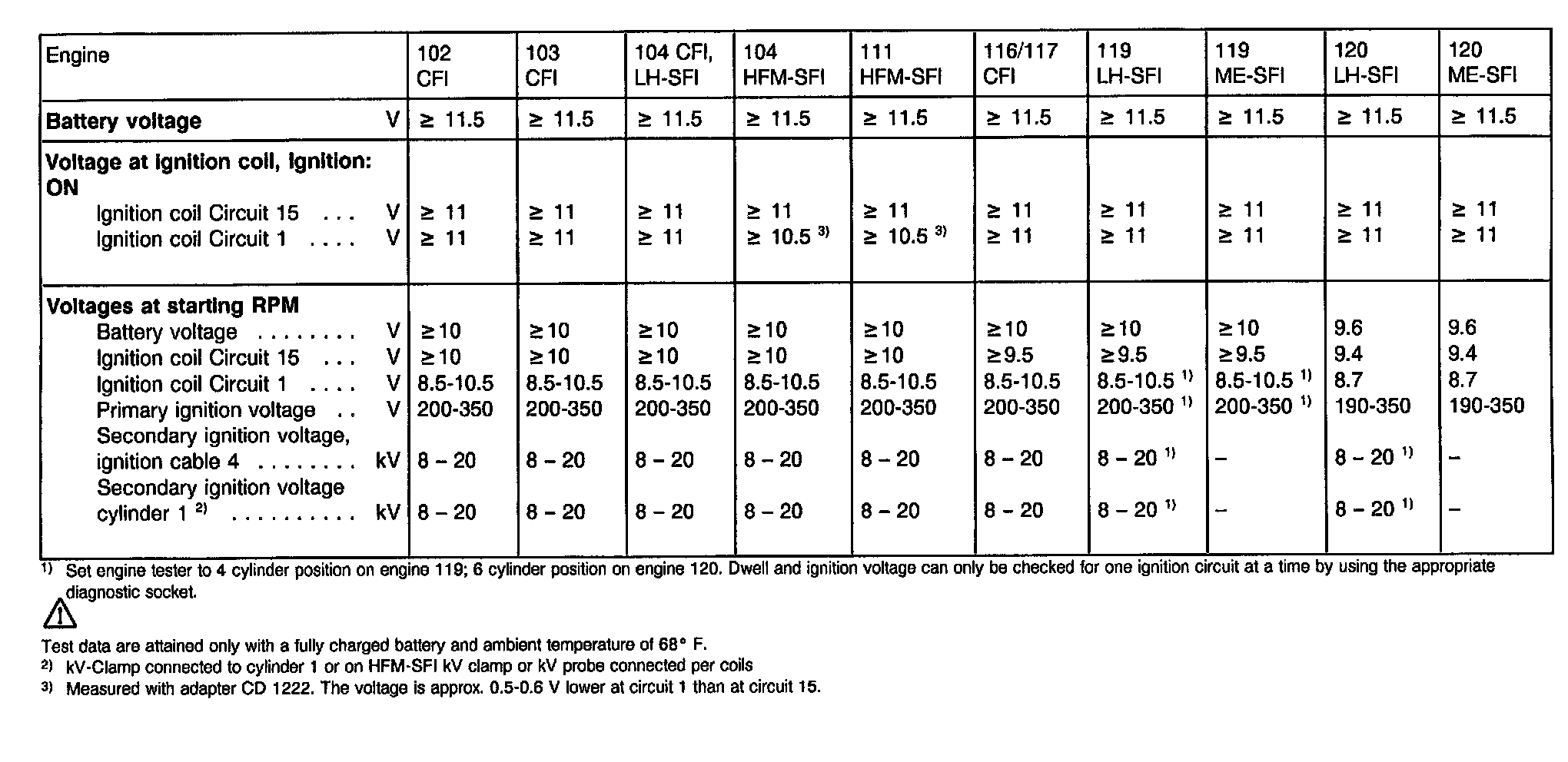

Part 1:

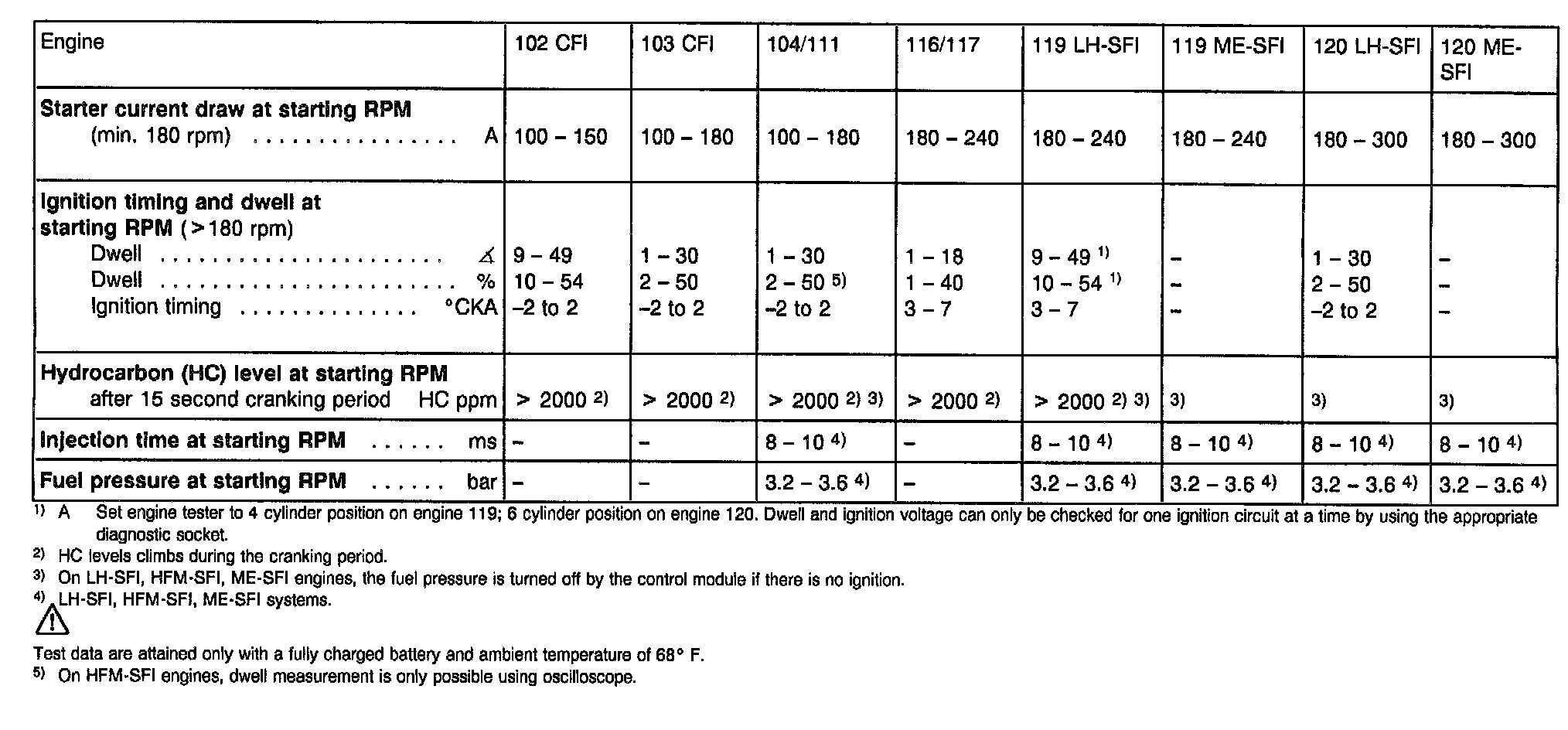

Part 2:
