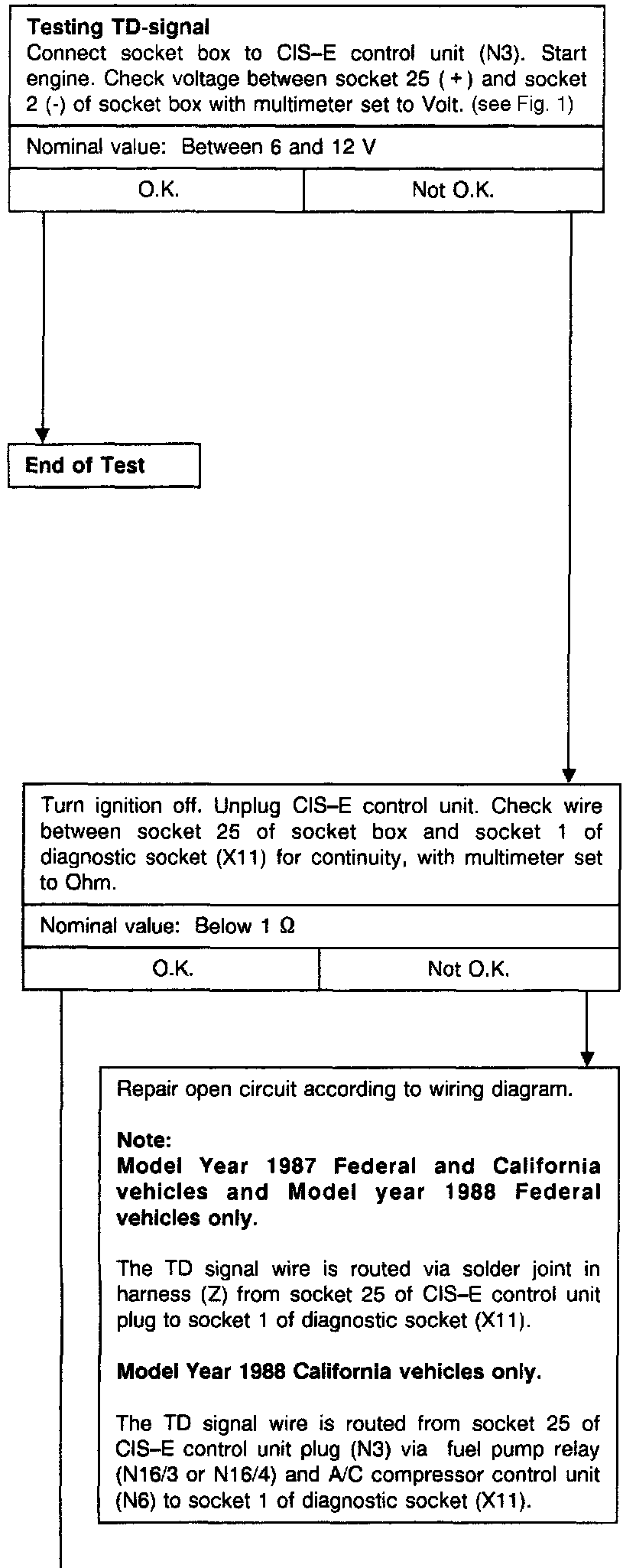

TD Signal Test

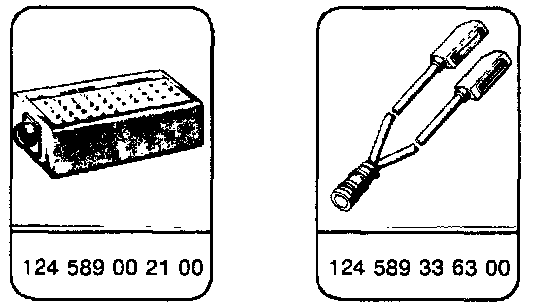

Special Tools:





Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23


�:

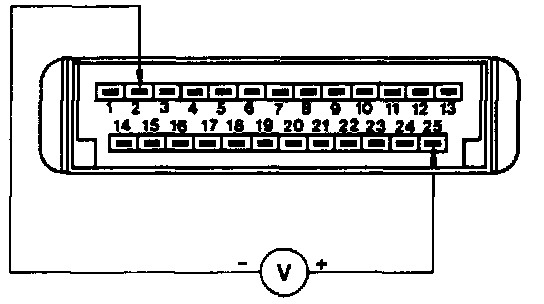

Fig. 1:
