Starting Valve Actuation Test


Special Tools:

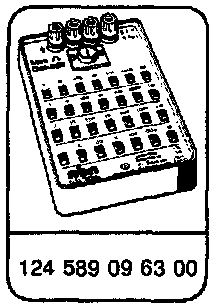

Special Tools

Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23

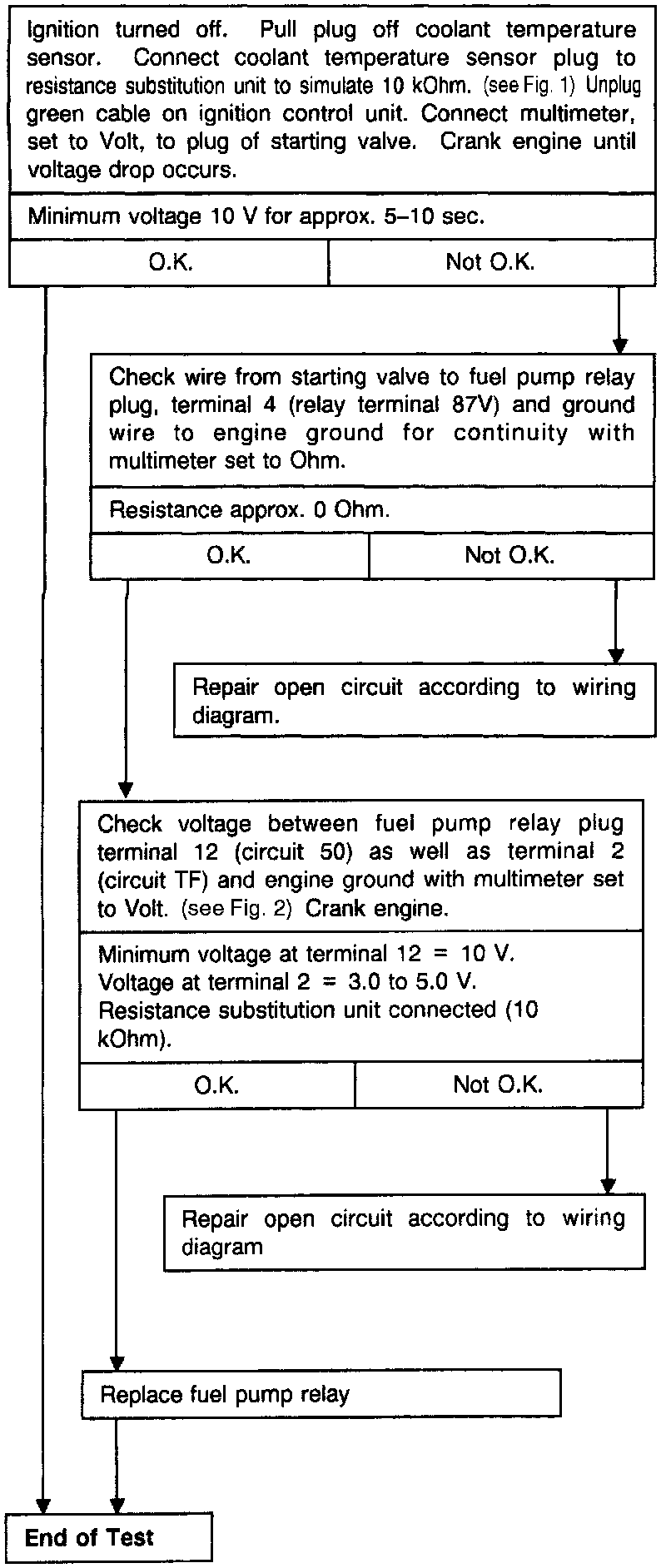

Test Procedure:

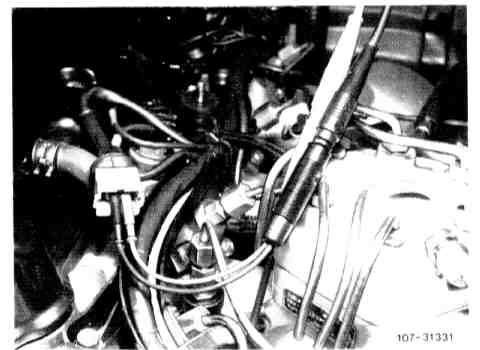

Fig. 1:

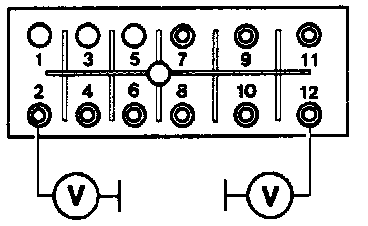

Fig. 2:
