Starting System Test

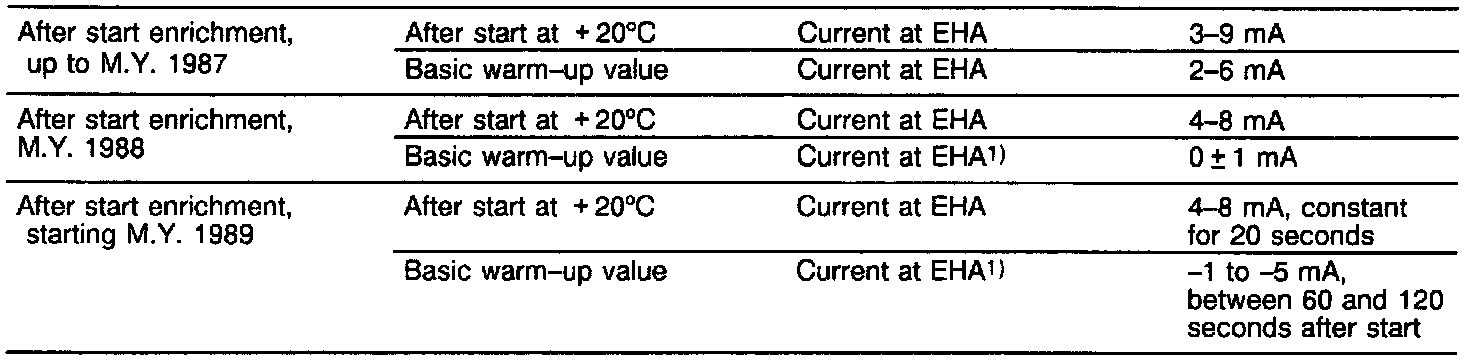

Test Data:

1) With connector G3/2x2 (02 sensor signal) disconnected.

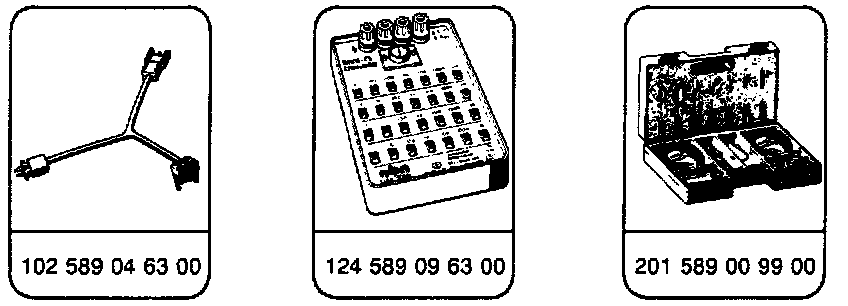

Special Tools:

Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23

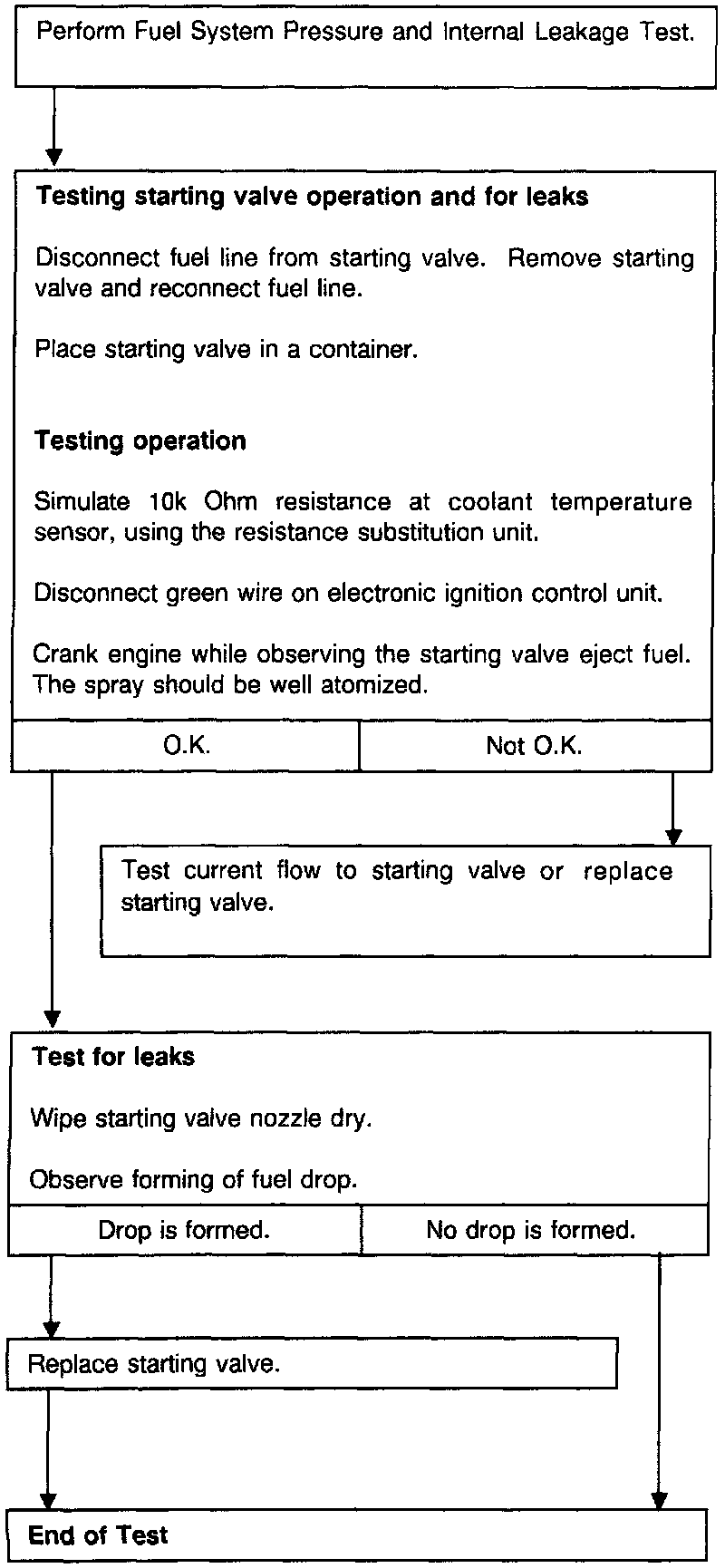

Test Procedure 1:

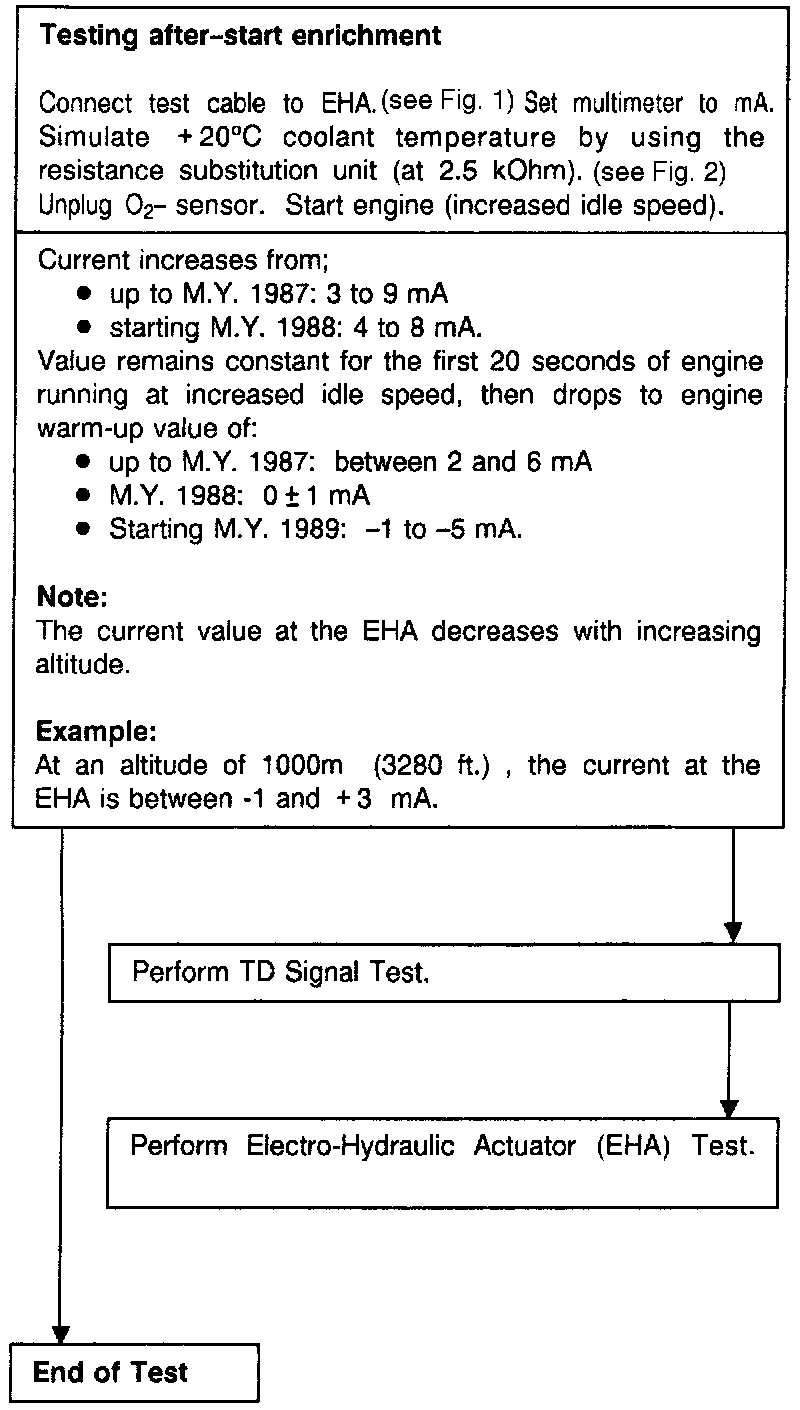

Test Procedure 2:

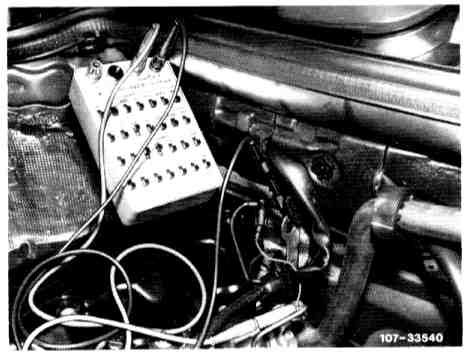

Fig. 1:

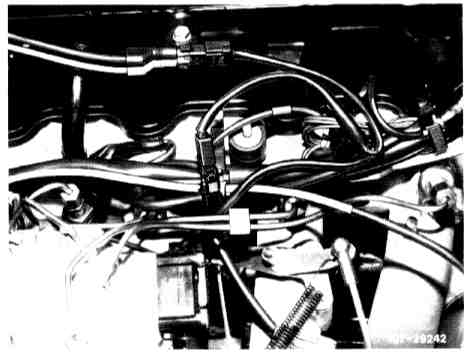

Fig. 2:
