Microswitch and Throttle Valve Switch Function Test

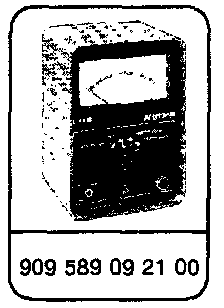

Special Tools:






NOTE: Starting with M.Y. 1988 California version vehicles, the CIS-E control unit must first be programmed to read the on-off ratio.

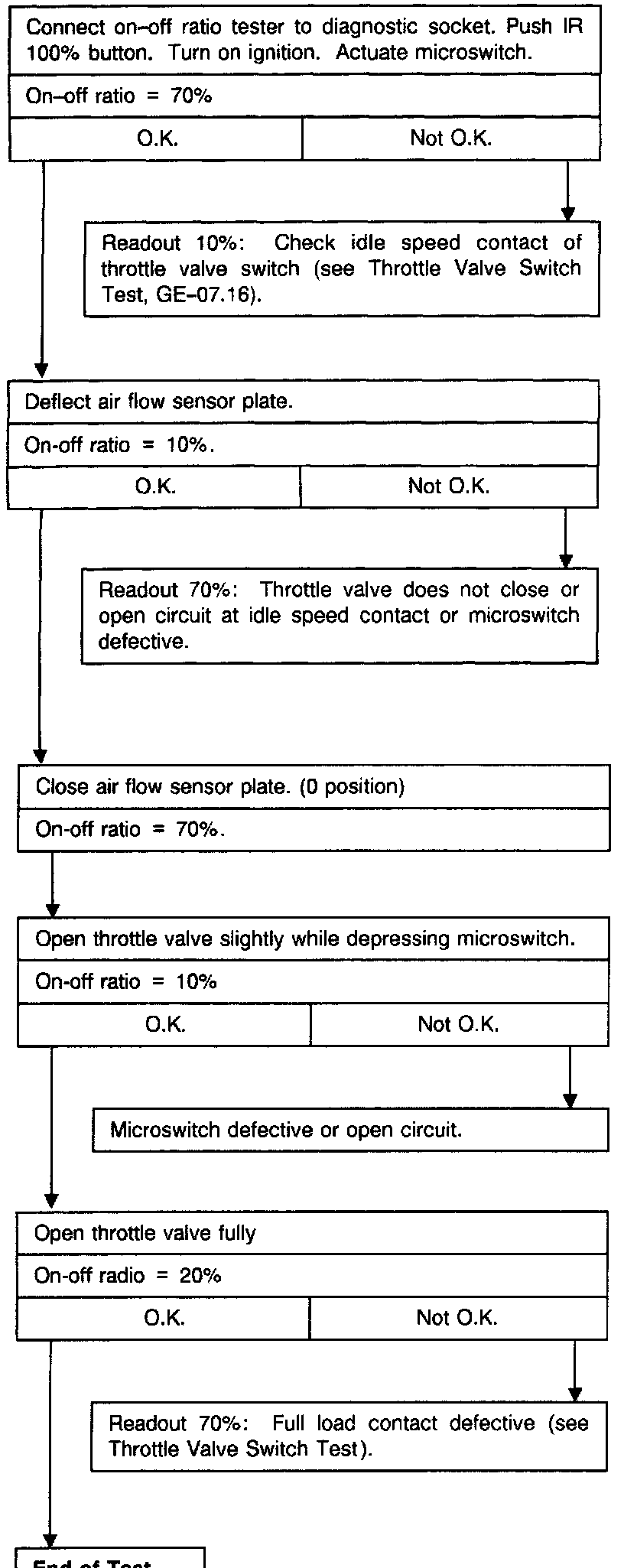

h�Test Procedure:
