California

Test Data
On-off ratio
- Test on-off ratio at 2,500 rpm and record the average value. It should not exceed the average idle speed value by more than +10.

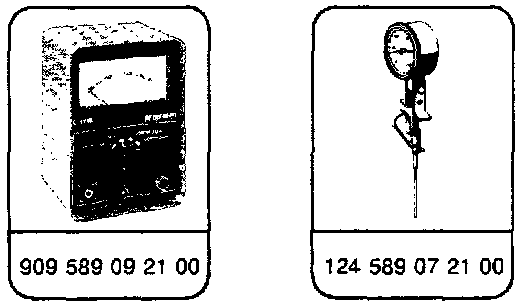

Special Tool:

012 0n-0ff ratio tester
X11 Diagnostic socket

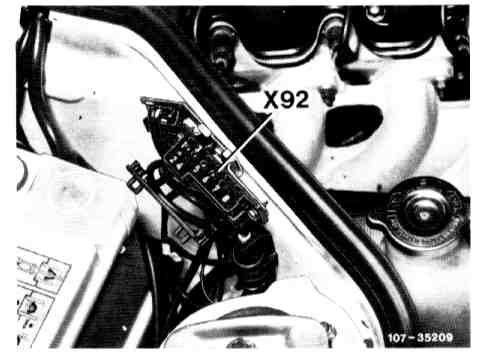

X92 Test connection for diagnosis
(8-pole, impulse readout)

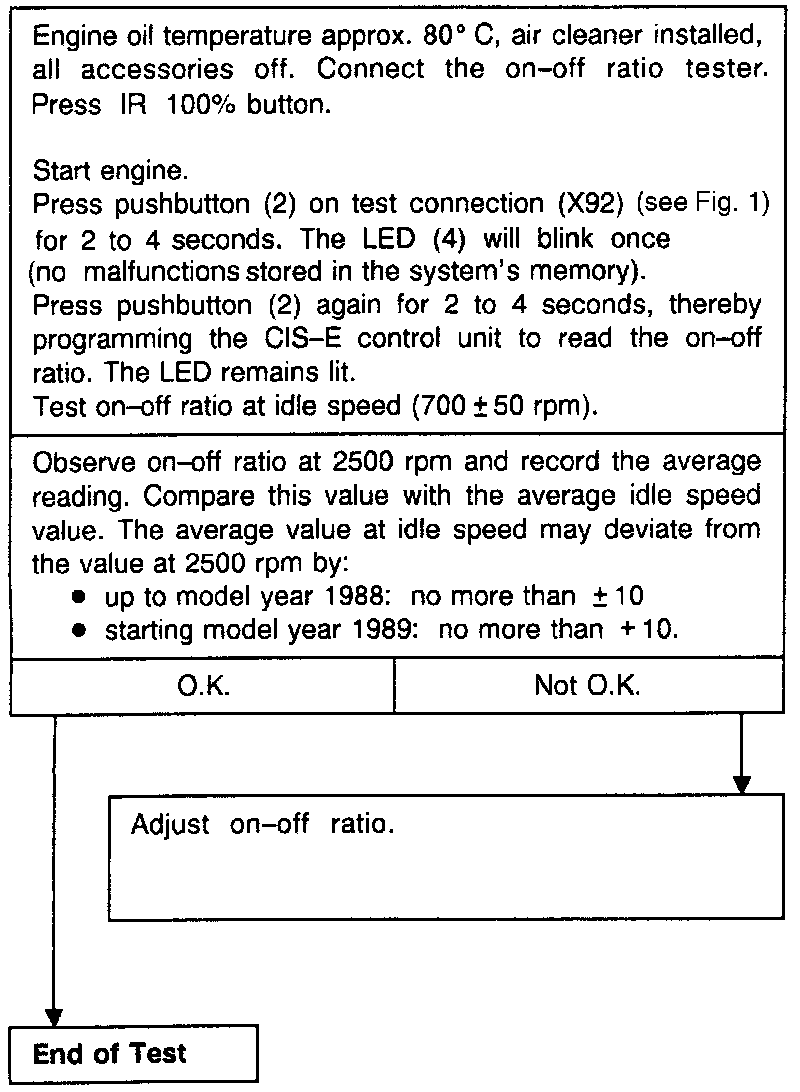

Test Procedure:

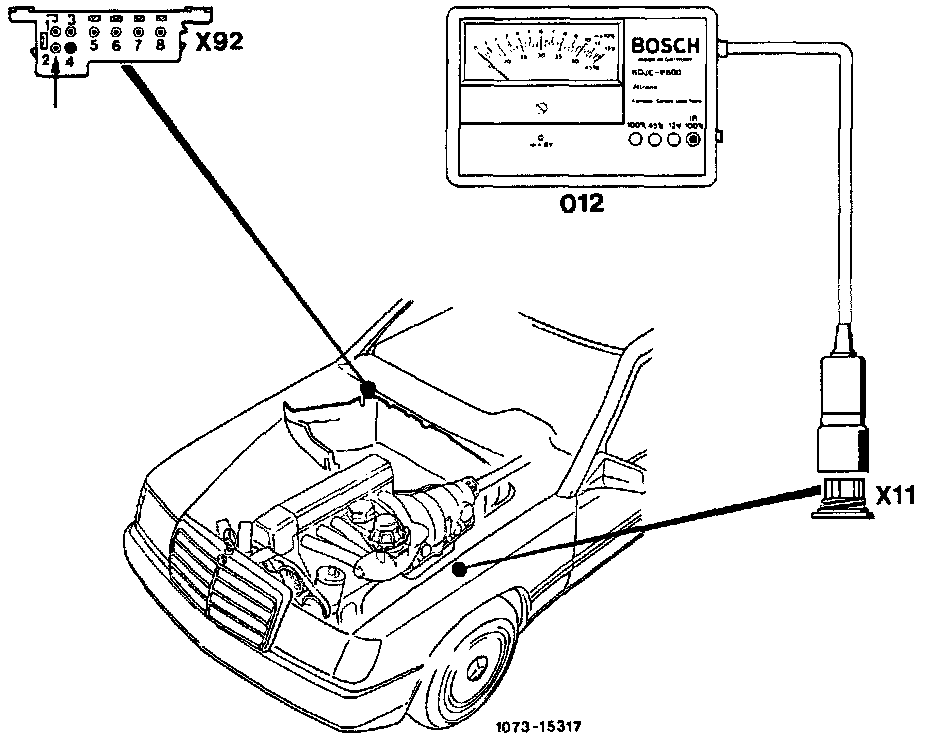

Fig. 1:
