Hall-Effect Speed Sensor/Vehicle Speed Signal Test

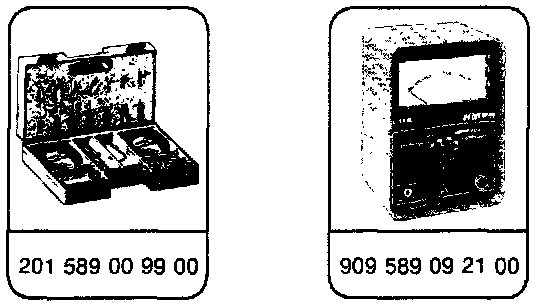

Special Tools:
Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23
- Digital tester -- SUN EMT-1019/Master 3, MCM-2110, MEA-1500 MB, Bear D.A.C.E. model 40-960, All-Test 3610-MB (for rpm readings only)

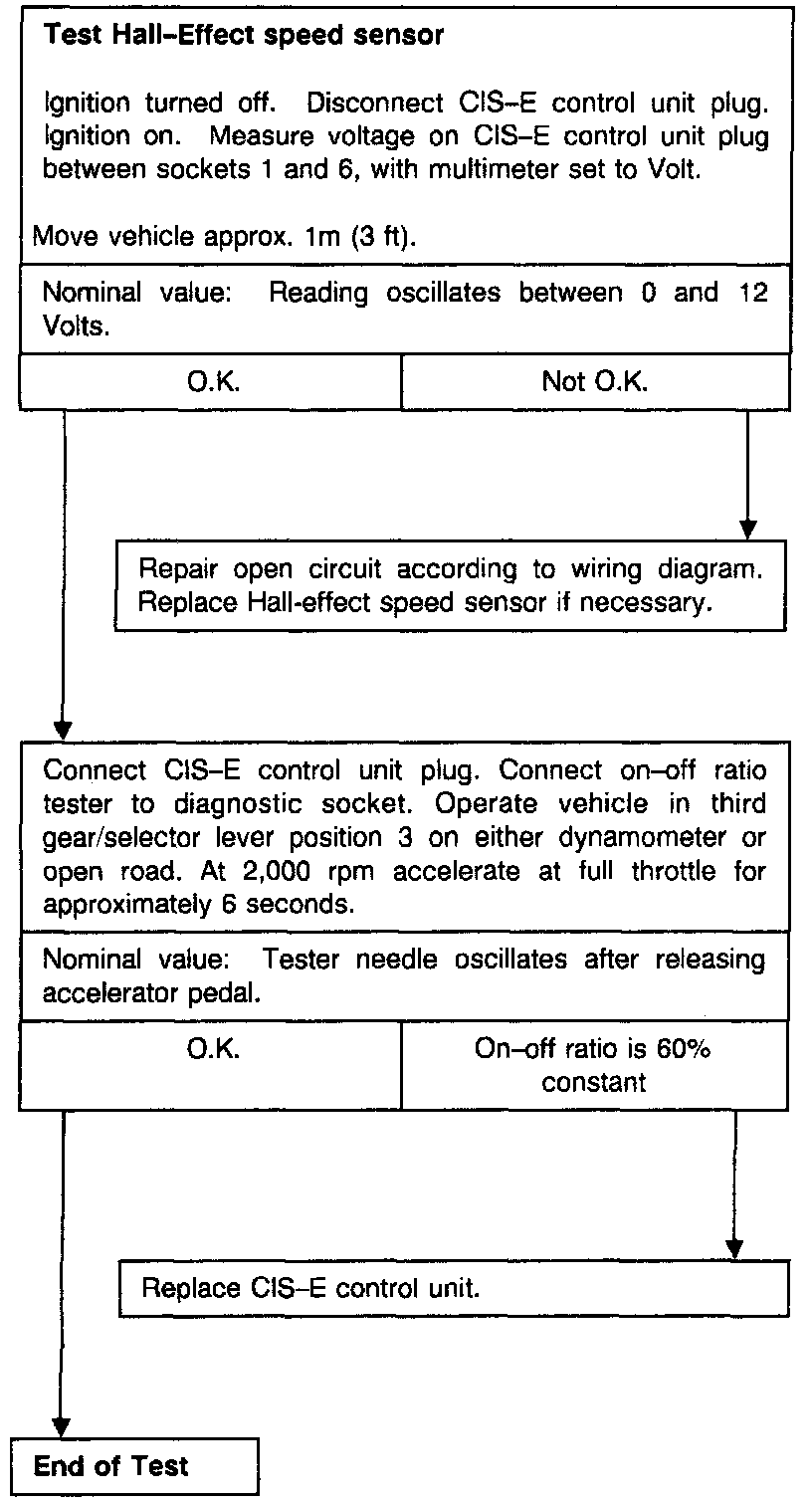

Test Procedure:
