Fuel Pump Delivery Test

Special Tools

Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23
- Measuring Glass (1 liter minimum)
- Stop watch

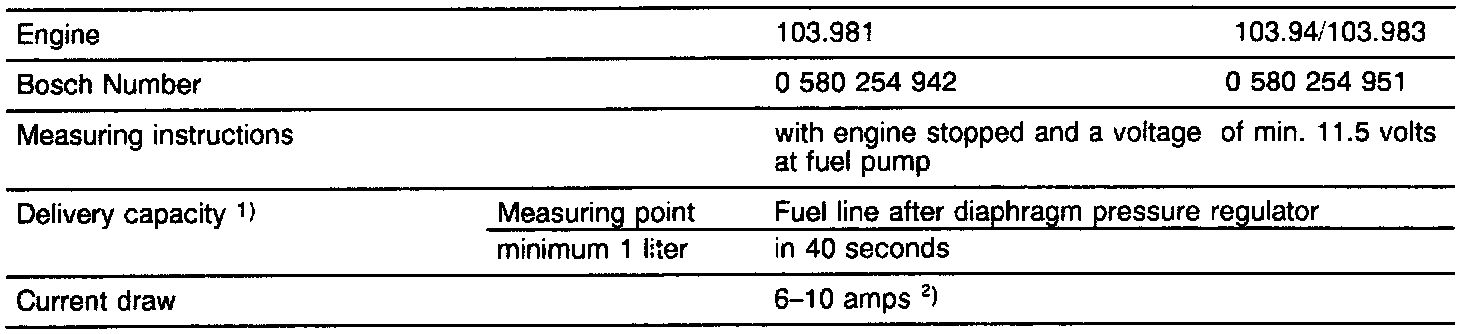

Fuel Pump Data:

NOTE:
^ For measuring delivery capacity the fuel tank should be at least half full.

^ If current draw exceeds 10 A perform test with connector G3/2x1 (O2 heating sensor filament) unplugged.

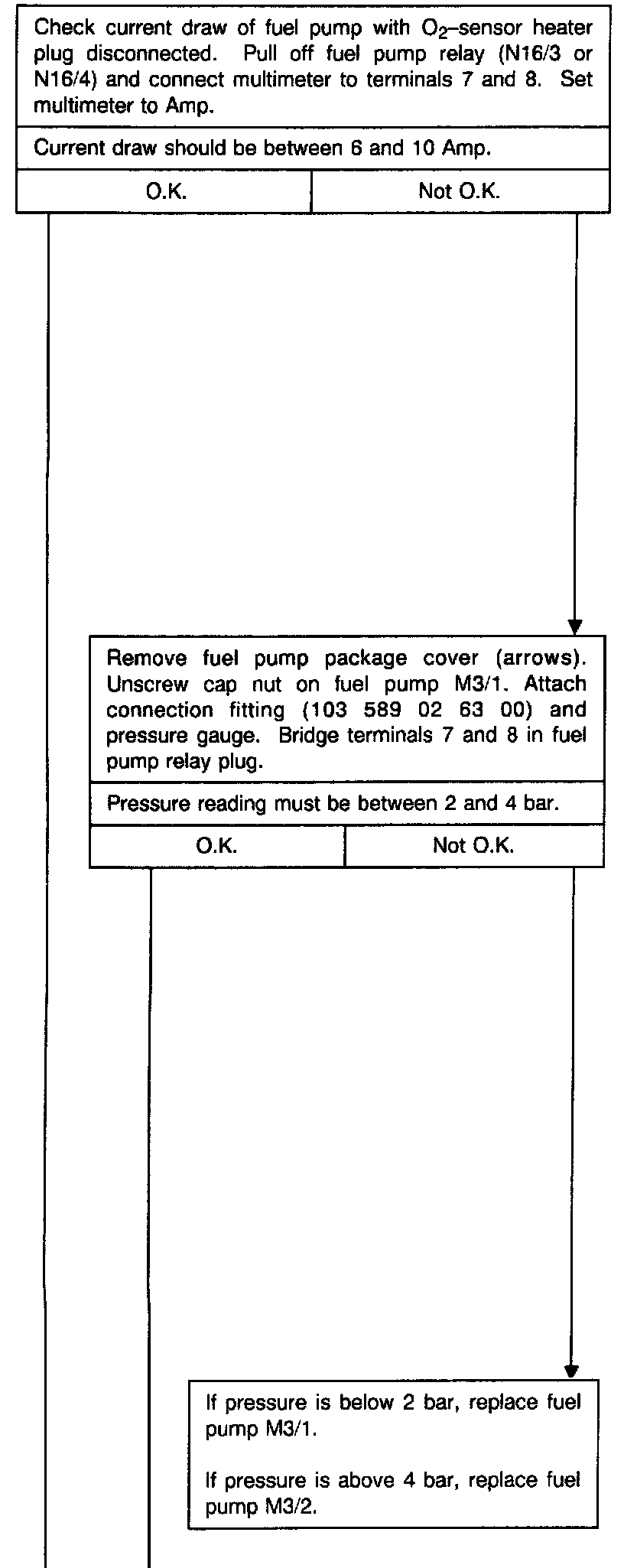

+�uTest Procedure:

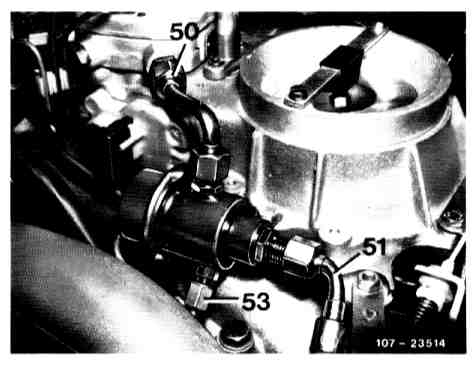

Fig. 1:

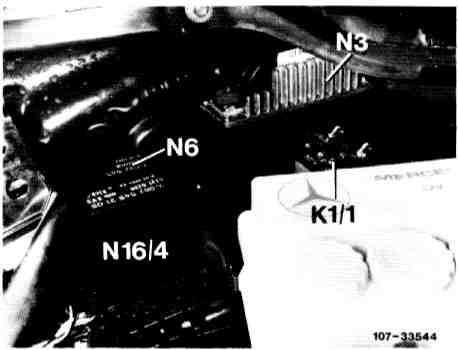

Fig. 2:

Fig. 3:

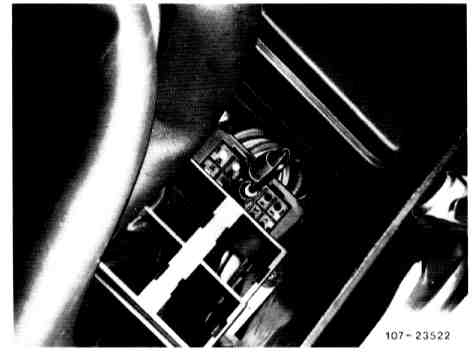

Fig. 4:

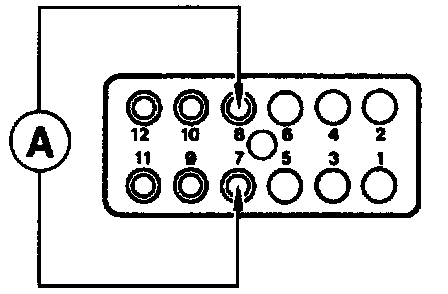

Fig. 5:
