Electronic Idle Speed Control Test

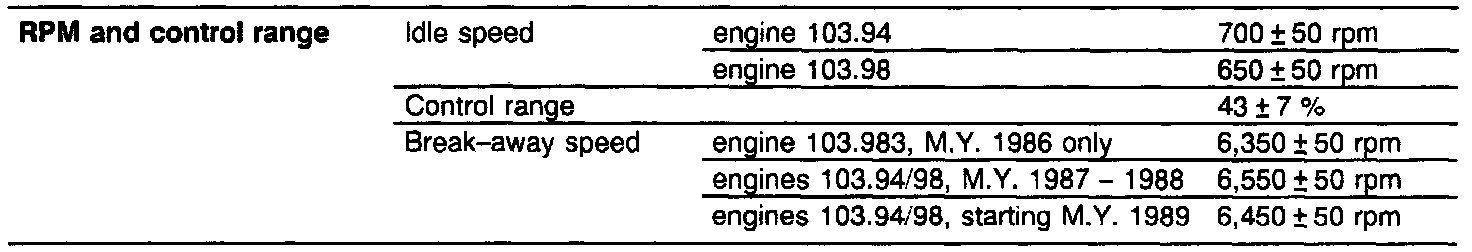

Test Data:

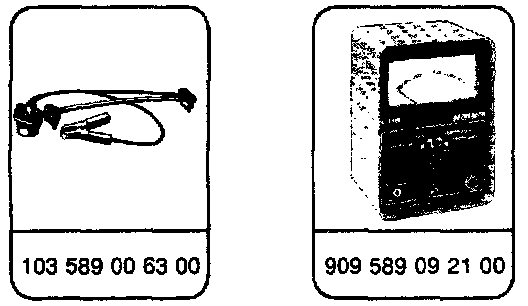

Special Tools:

Equipment
- Digital multimeter -- SUN DMM-5, Fluke model 23
- Digital tester -- SUN EMT-1019/Master 3, MCM-2110 MEA-1500 MB, Bear D.A.C.E. model 40-960, All-Test 3610-MB (for rpm readings only)

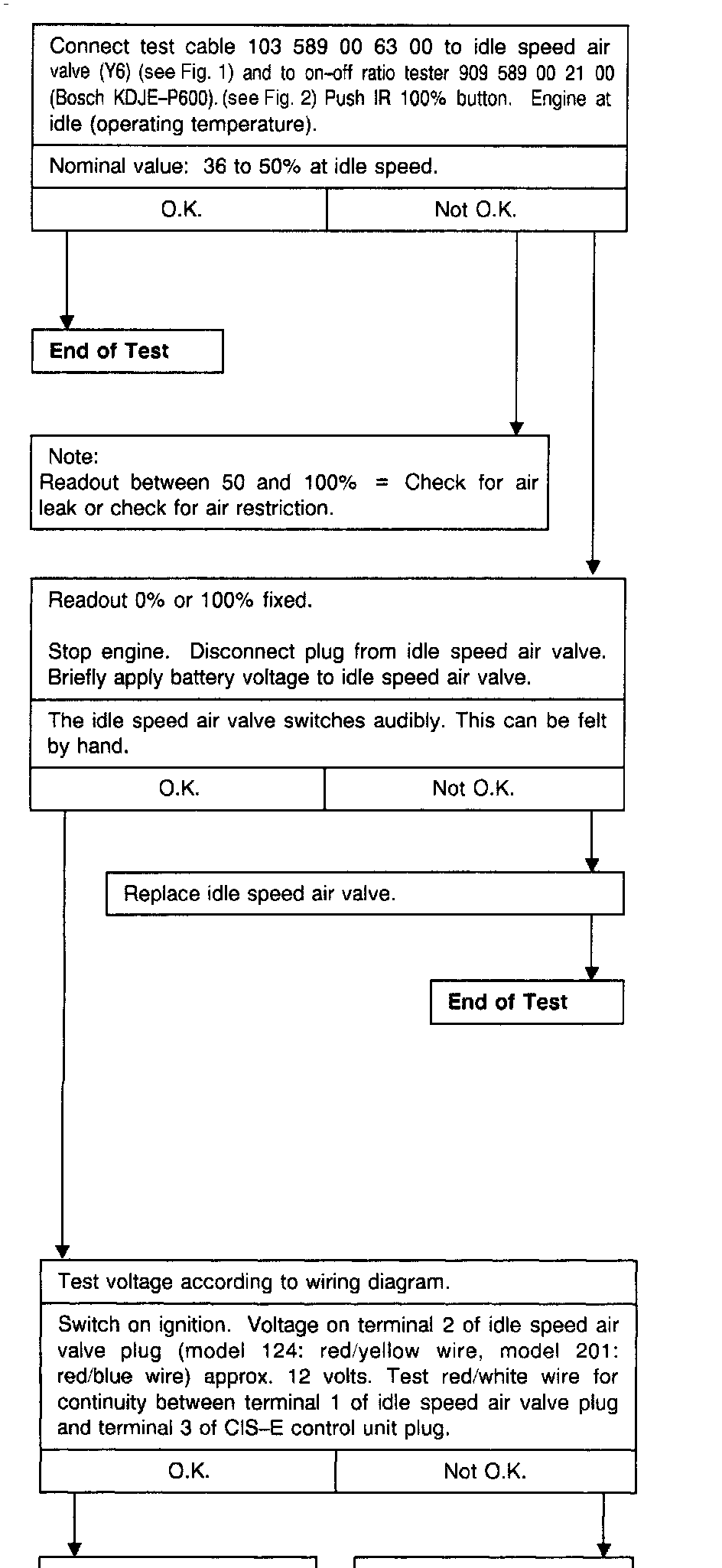

P�� Test Procedure:

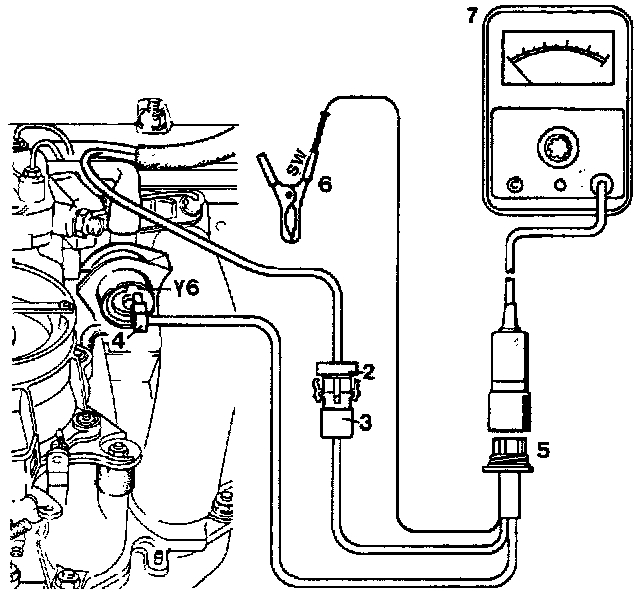

Fig. 1:

Fig. 2:

2 Connector, engine wiring harness
3 Connector, test cable
4 Connector, idle speed air valve
5 Test cable
6 Connector, ground
7 On-off ratio tester

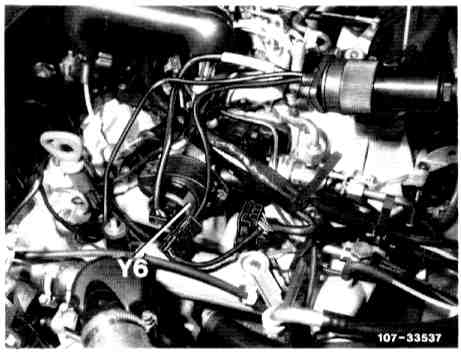

Y6 Idle speed air valve
