300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Throttle Position Switch
>>
Testing and Inspection
>>
Throttle Valve Switch Test
>>
Idle Contact
Idle Contact
Trouble Shooting Procedure:

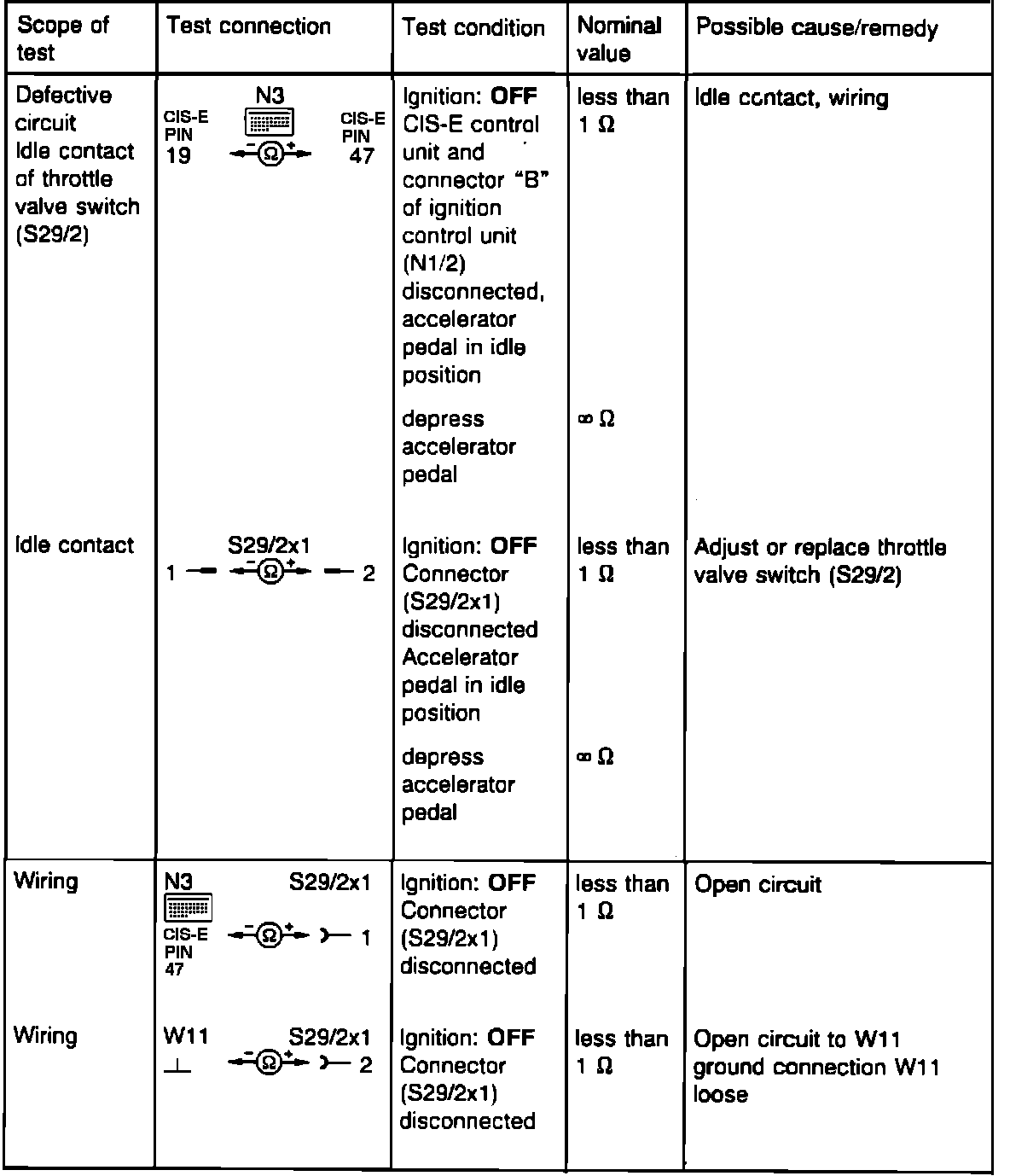

DIAGNOSTIC CHART
EZL Control Unit Terminal Designations:

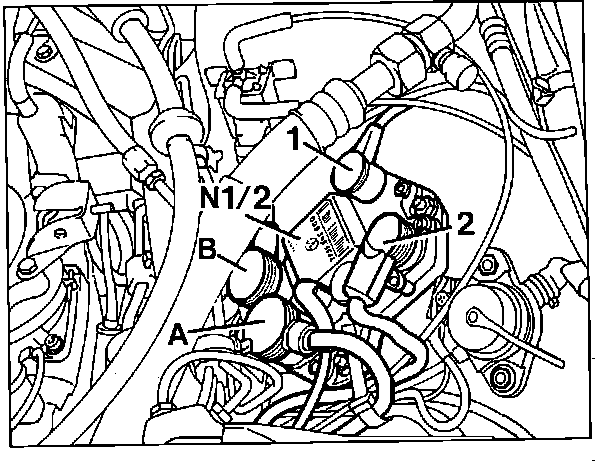

IGNITION CONTROL UNIT CONNECTORS
