Air Mass Sensor
Air Mass Sensor

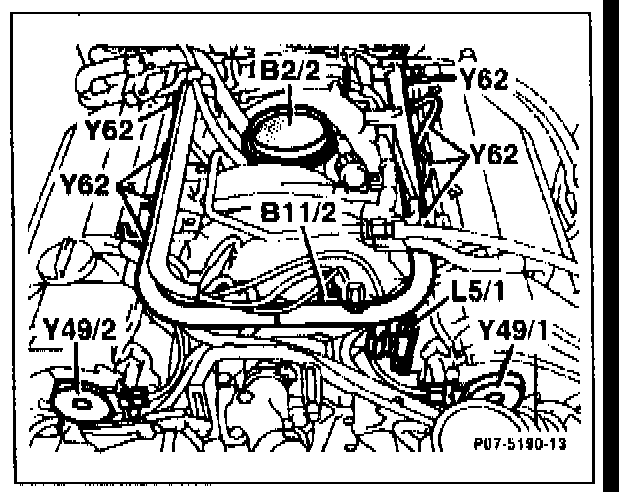

Component Location
Component ID
B2/2
Component Name
Air mass sensor with hot-wire
Location
Top of engine, on intake manifold
