Base Module
Base Module

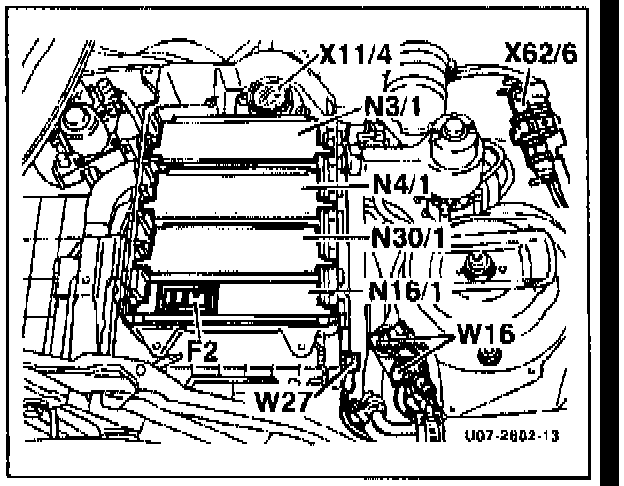

Component Location
Component ID
N16/1
Component Name
Base module
Location
Right side of component compartment, in Module box
