Overvoltage Protection Relay: Testing and Inspection

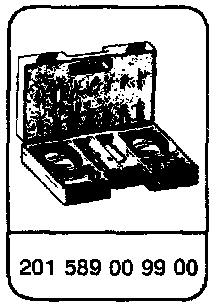

Special Tools:
Equipment
-
Digital multimeter -- SUN DMM-5, Fluke model 23

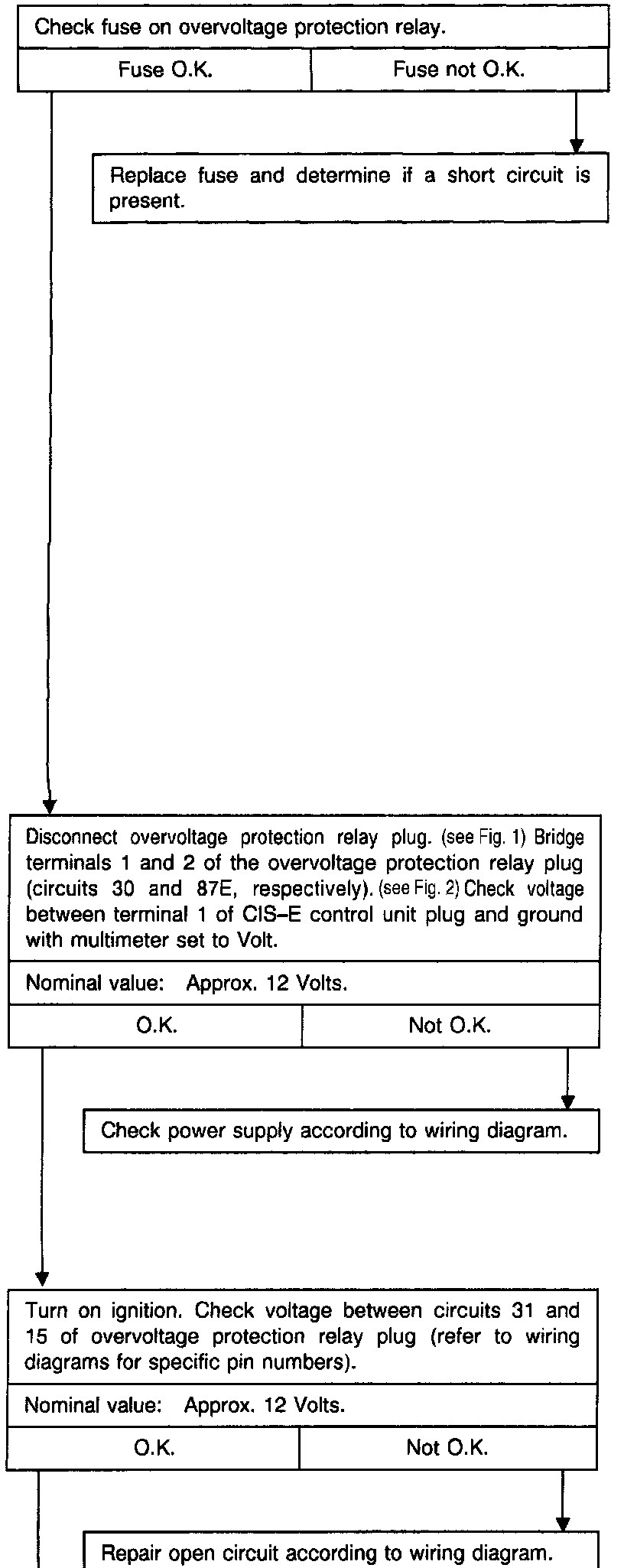

߮�Test Procedure:

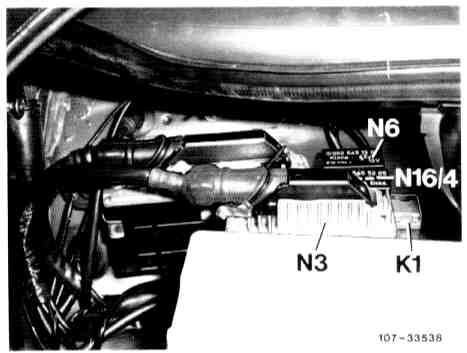

Fig. 1:
Fig. 2:
