AR40.10-P-1025A Check Tires For Lateral and Radial Runout



AR40.10-P-1025A Checking tires for lateral and radial runout

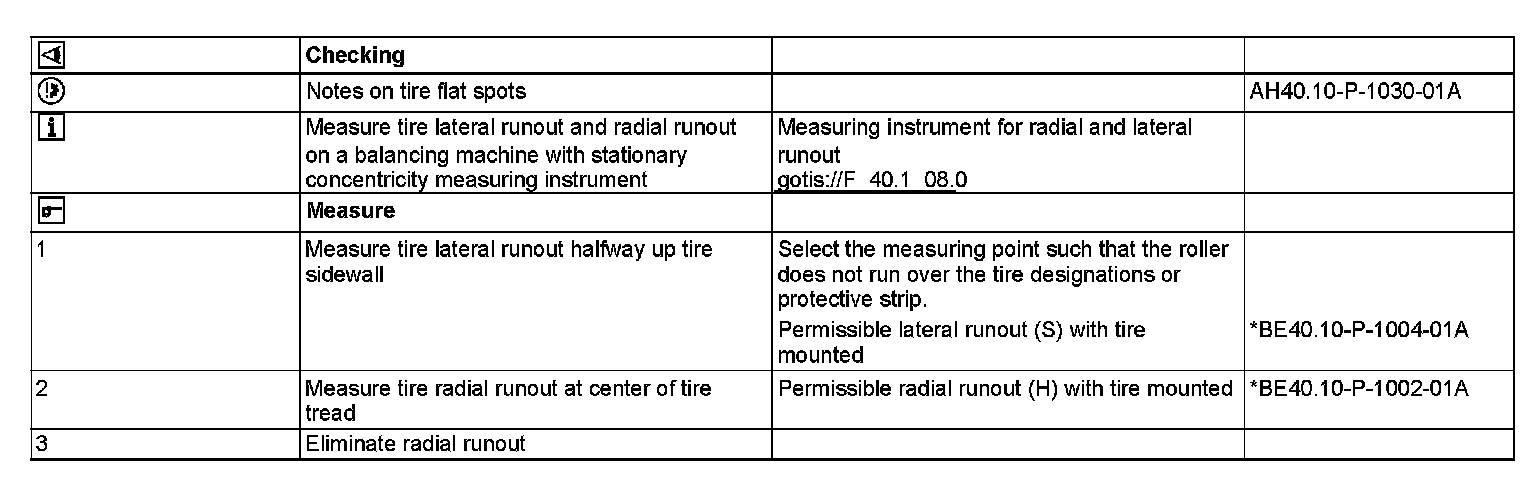

Steps 1-3:

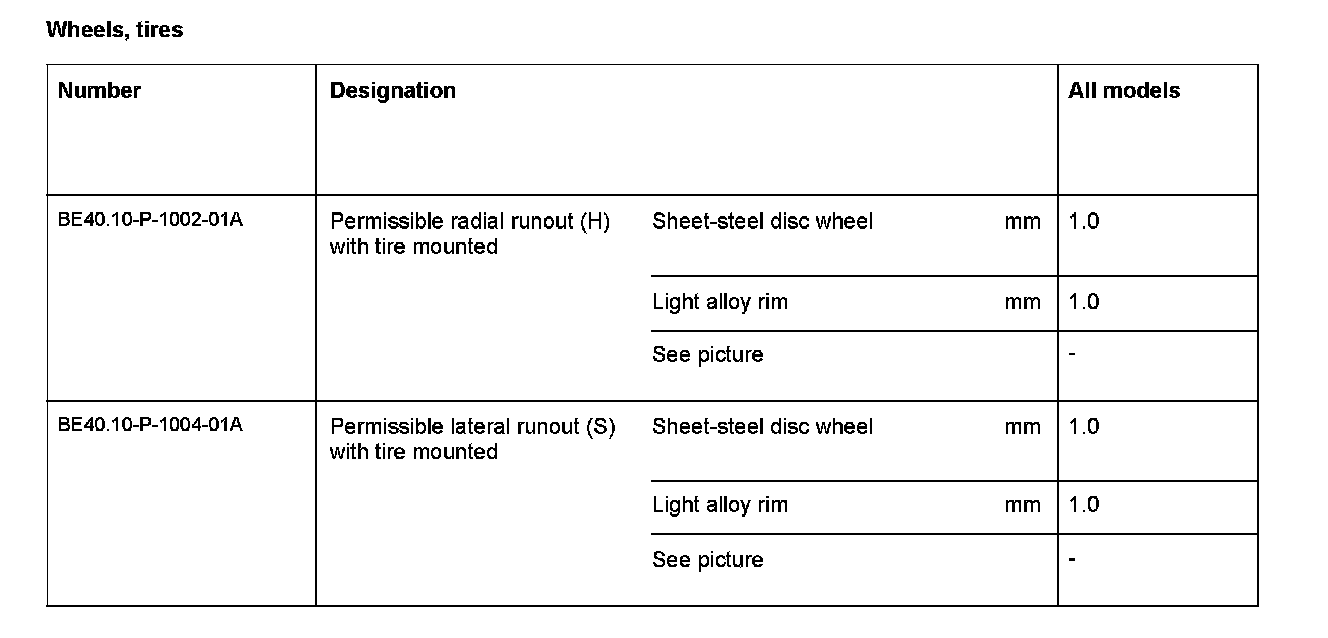

Wheels, Tires:
