Tires - Factory Approved Summer Tires

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: February 1990 (supersedes MBNA 40/13)

REF.NO. MBNA 40/13a

Note:
This S.I. contains approved summer tires for 205/65 R 15 94H which were inadvertently omitted from the superseded S.I. please discard your of S.I. MBNA 40/13.

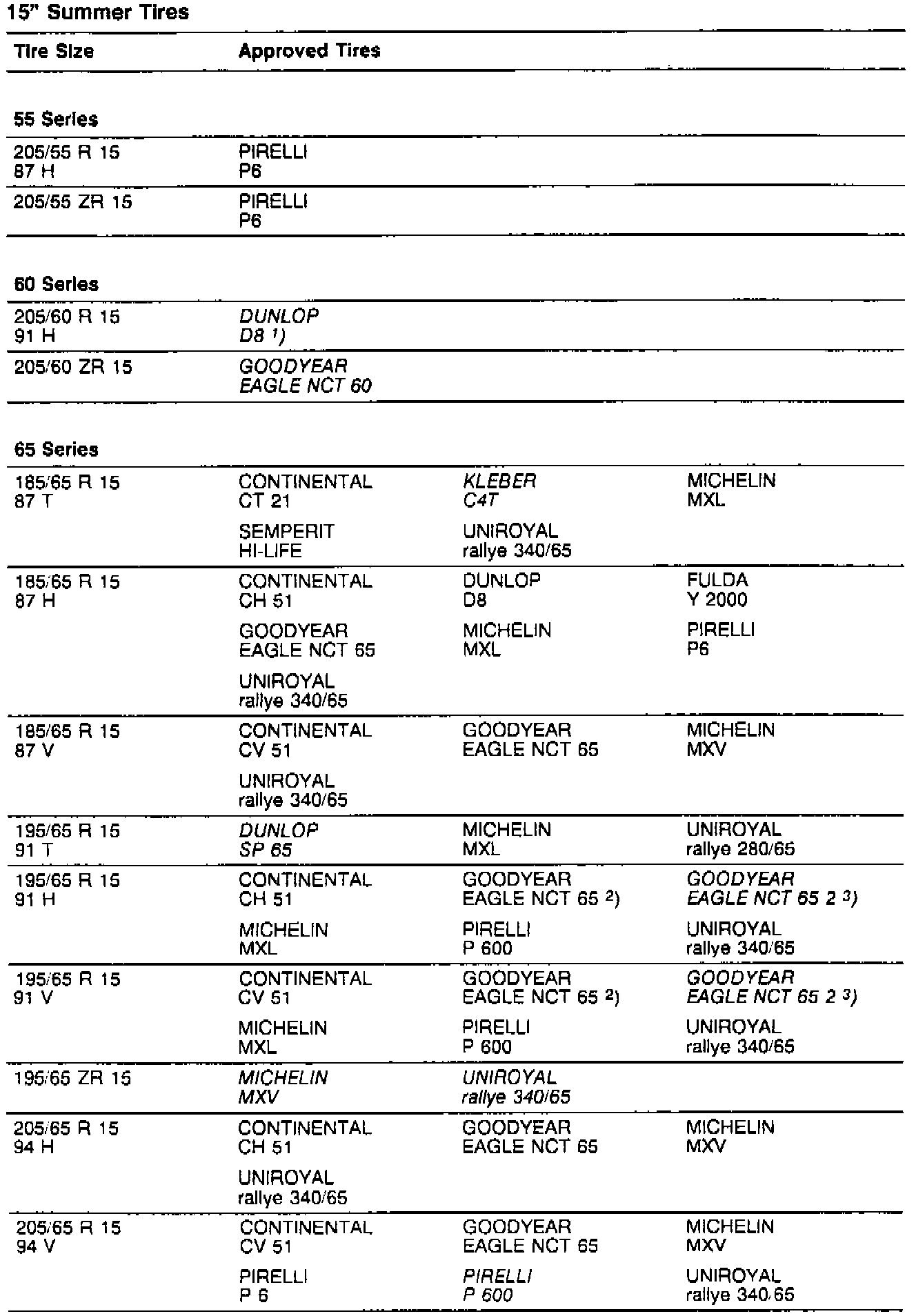

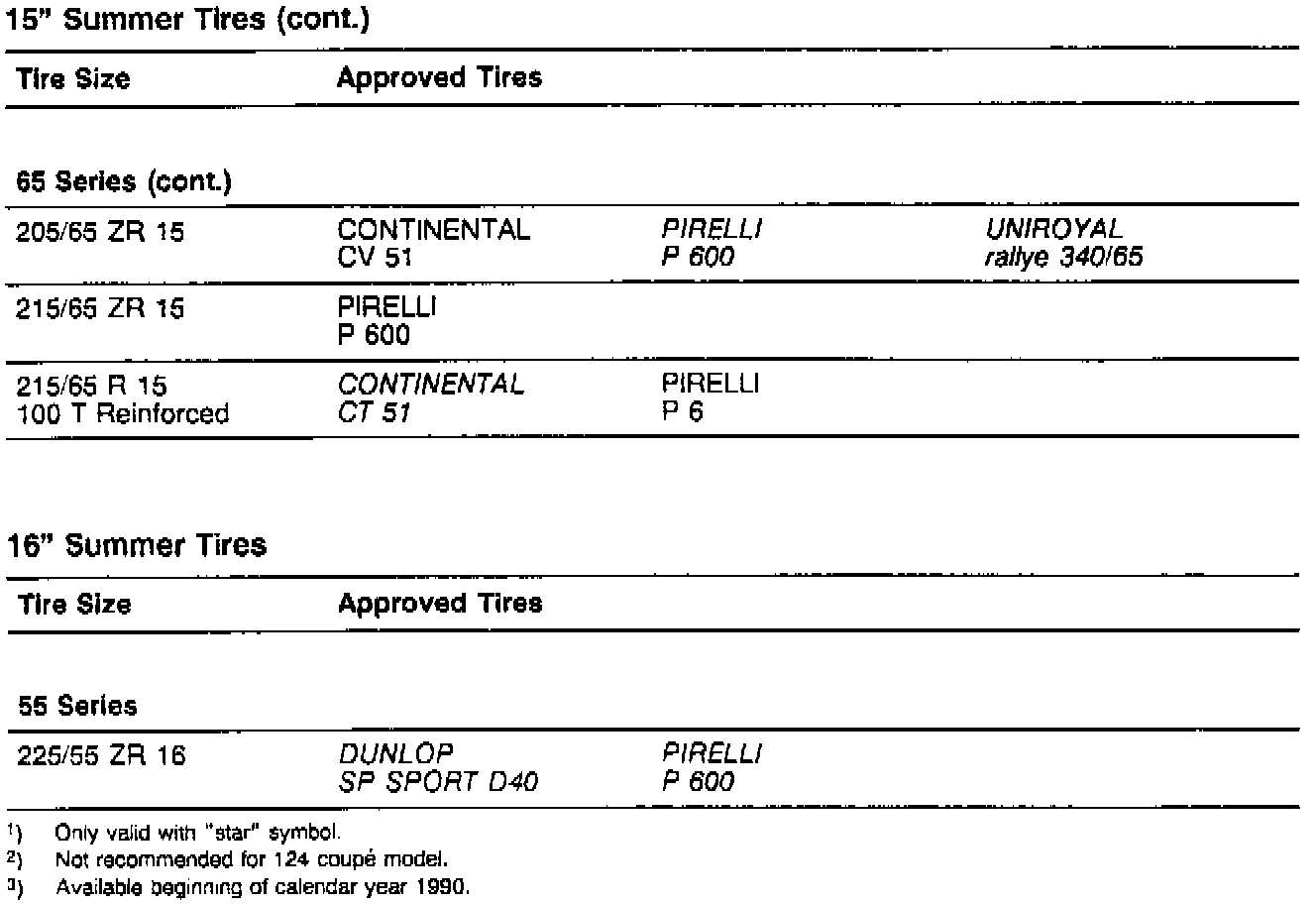

This is a current 1isting of factory approved 15" and 16" summer tires. Newly approved tires are highlighted in italic text.

We recommend that only factory approved summer tires be used on any Mercedes-Benz vehicle.

Note:
Some of the approved summer tires listed may not appear on U.S.A. or Canadian passenger cars and may not be available in the U.S.A. or Canada.











Note:

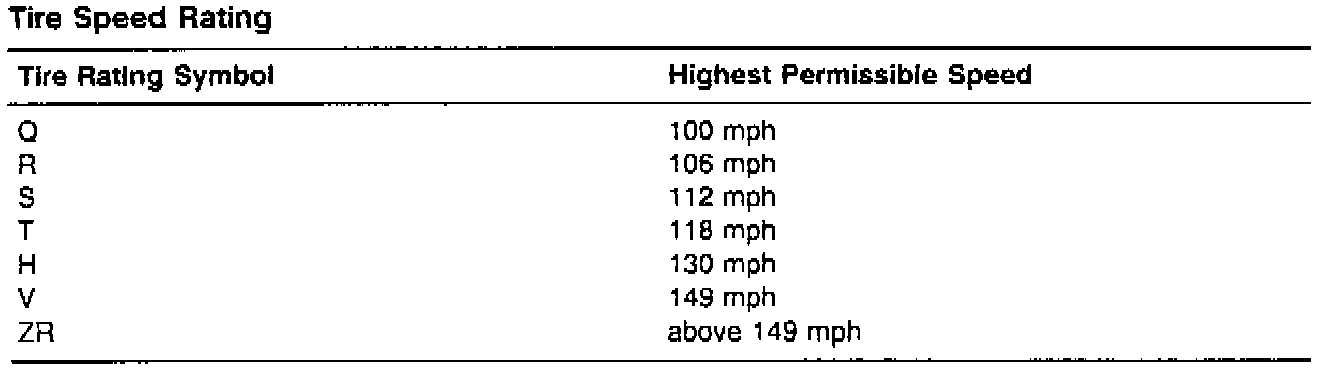

^ Speed and load ratings for the previous VR tires and new ZR tires can be confirmed by the individual tire manufacturer.

^ In case of a wheel change (e.g., light alloy for steel rims, be certain that the proper spare lug bolts are visibly kept with the spare wheel, to ensure proper wheel and bolt combination.

Lugbolts for steel and light alloy rims are not interchangeable!

^ Before mounting wheels, always clean the contact surface of the rims and axles of any dirt and corrosion.

^ When replacing tires, ensure that only tires with the tire/rim match point are used. Match points are designed to keep tire/wheel out-of-roundness within specified tolerances.
