Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Maintenance >> Wheels and Tires >> Description and Operation >> GF40.10-P-1010-01A Rim Designation

GF40.10-P-1010-01A Rim Designation

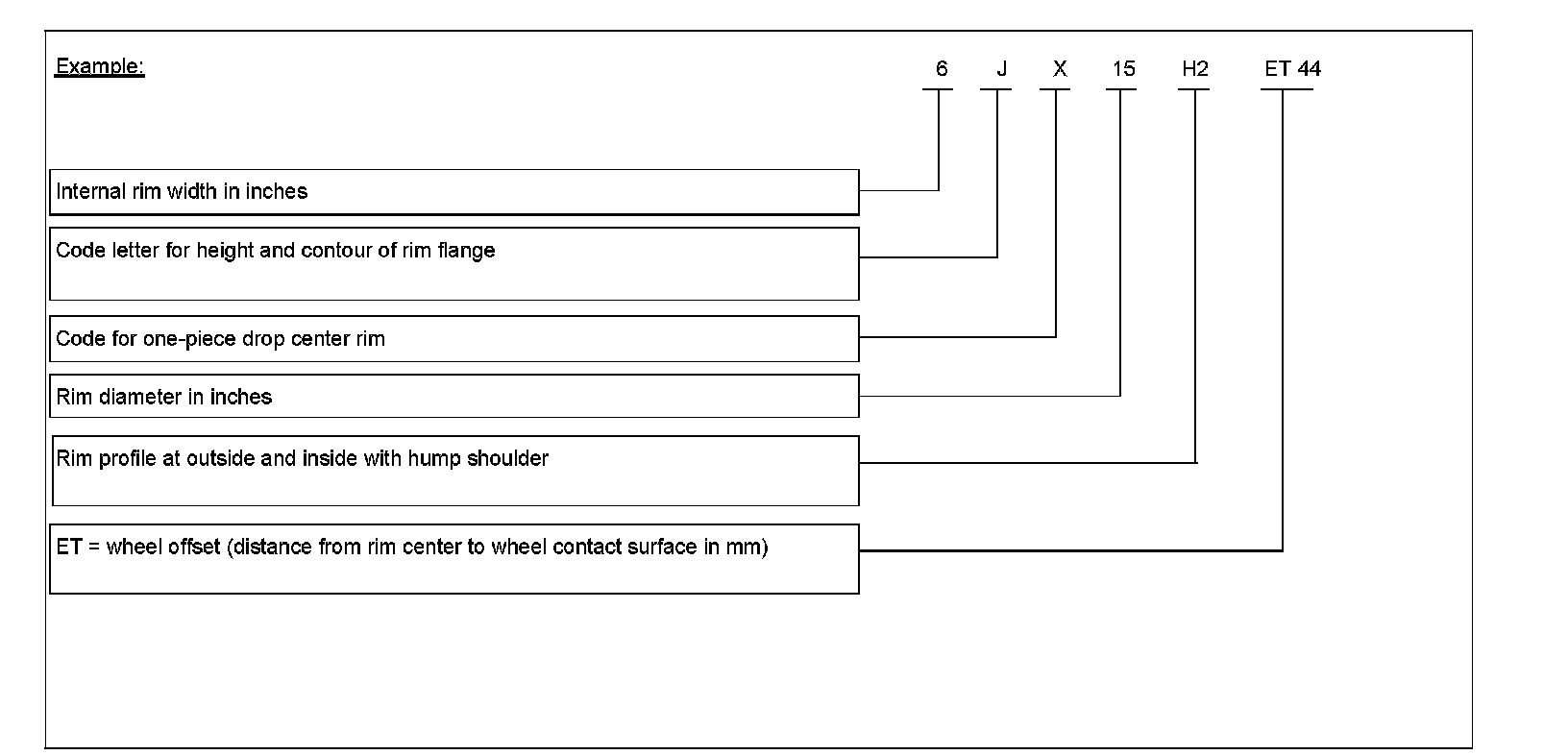

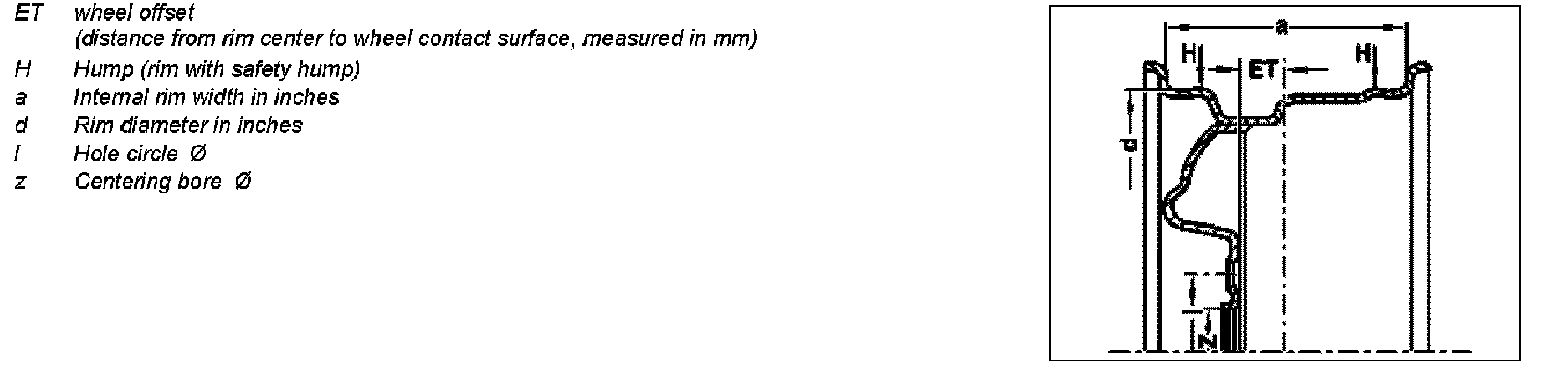

GF40.10-P-1010-01A Rim designation

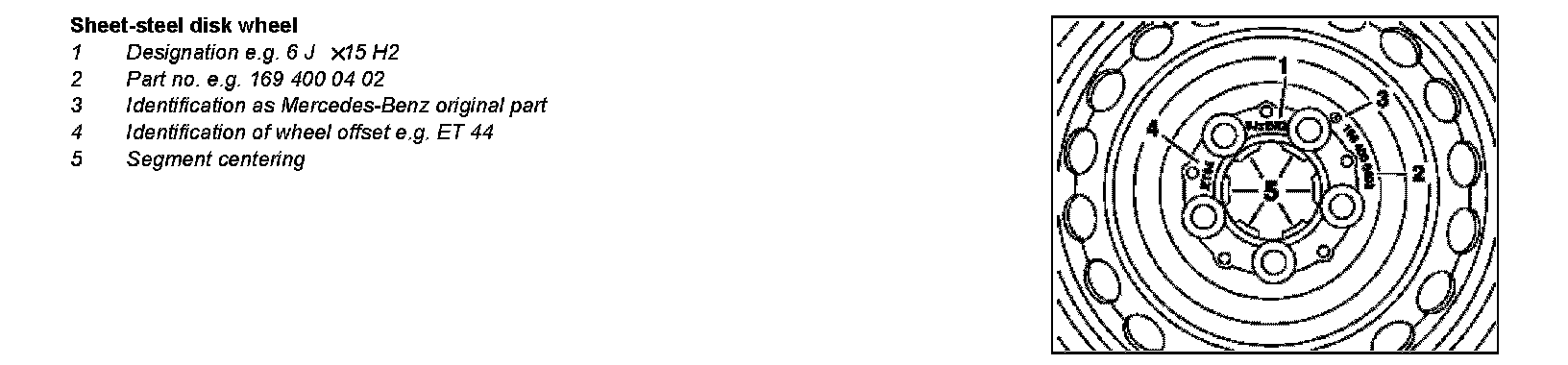

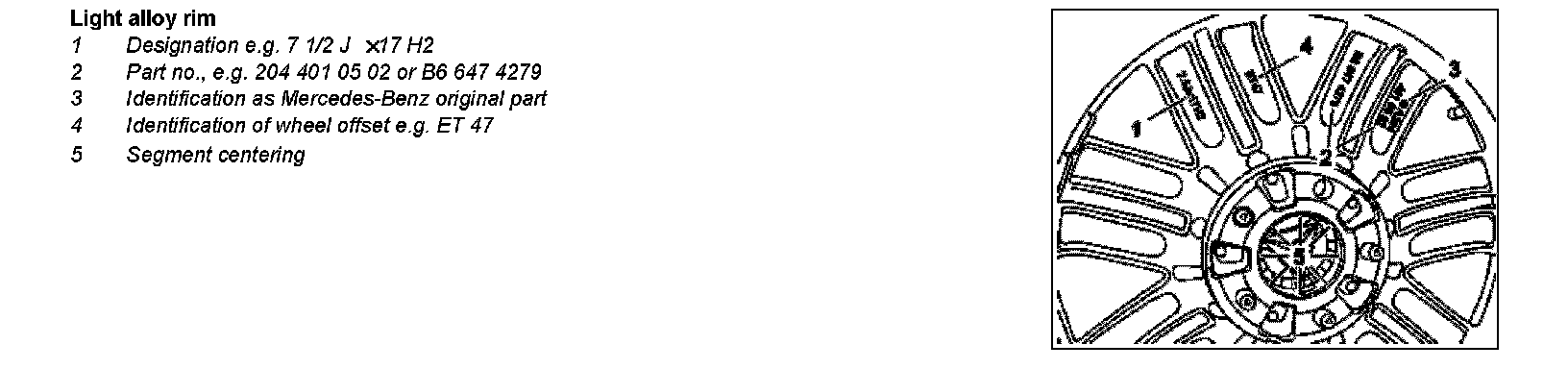

Component Identification:




Component Identification:




Component Identification:




Component Identification:
