Body and Frame - Front End Alignment, Measuring Pin

REF. NO. MBNA 58/45

To: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: June 1990

SUBJECT:
SPECIAL TOOL, VEHICLE MEASURING PIN SET 901 589 00 63 00 MODELS 124, 129, 201

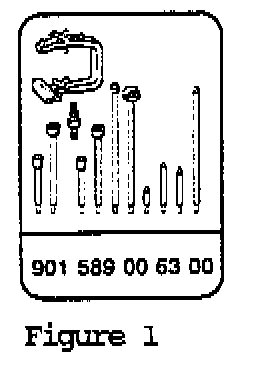

A revised vehicle measuring pin set (Figure 1) applicable for models 124, 129, and 201 is now available.

The revised pin set can be used to measure the above mentioned models which do not adjust to alignment specifications and are therefore suspected of having chassis or suspension damage.

This pin set must be used in conjunction with the other special tools listed in the table.





Special Tool Information
