Speedometer Replacement

Removing and installing speedometer





Preceding work:
- Remove instrument cluster.

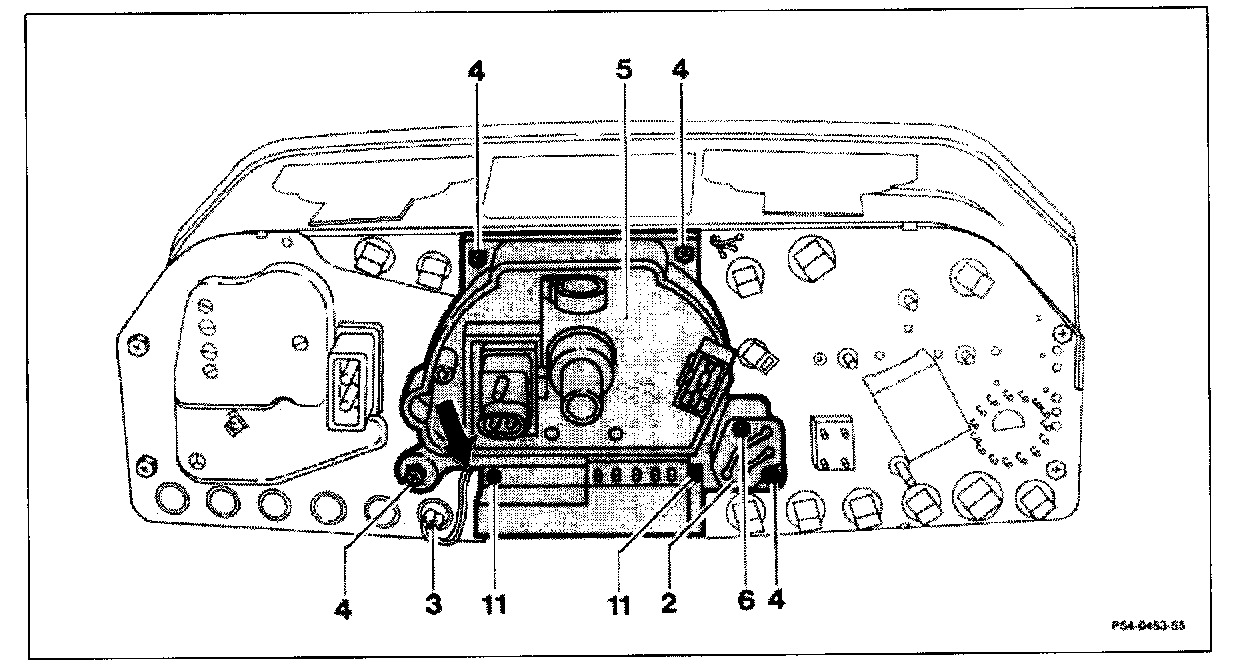

1. Unscrew phillips screw (6).

2. Remove rheostat (2).

3. Remove indicator lamp (3) of windshield washer fluid level.

4. Unclip cable (arrow).

5. Unscrew phillips screws (4).

6. Unscrew phillips screws (11). (Vehicles with outside temperature display)

7. Remove speedometer (5).

Note
1. The version up to 09/85 indicator lamp (3) for windshield washer fluid level in 2nd field.
2. Version as of 10/85 indicator lamp (3) for windshield washer fluid level in 1st field.
