Warning Indicators/Gauges/Clock/Tachometer
Warning Indicators/Gauges/Clock/Tachometer

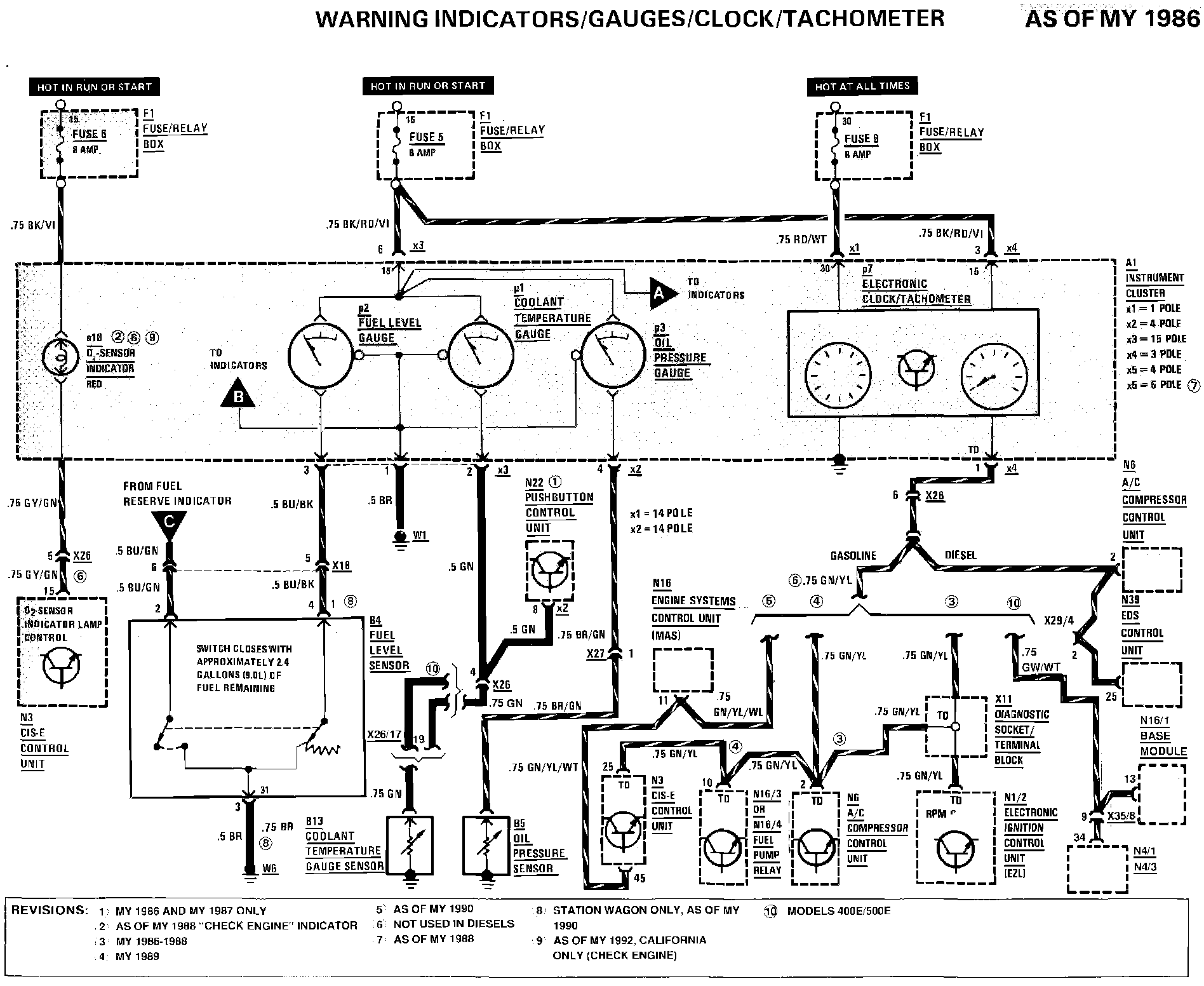

Warning Indicators/Gauges/Clock/Tachometer:
