Home >> Mercedes Benz >> 1990 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Automatic Air Conditioning (Auto A/C) >> Checking Electric Components of the Automatic Climate Control >> Tests 18/19

Tests 18/19

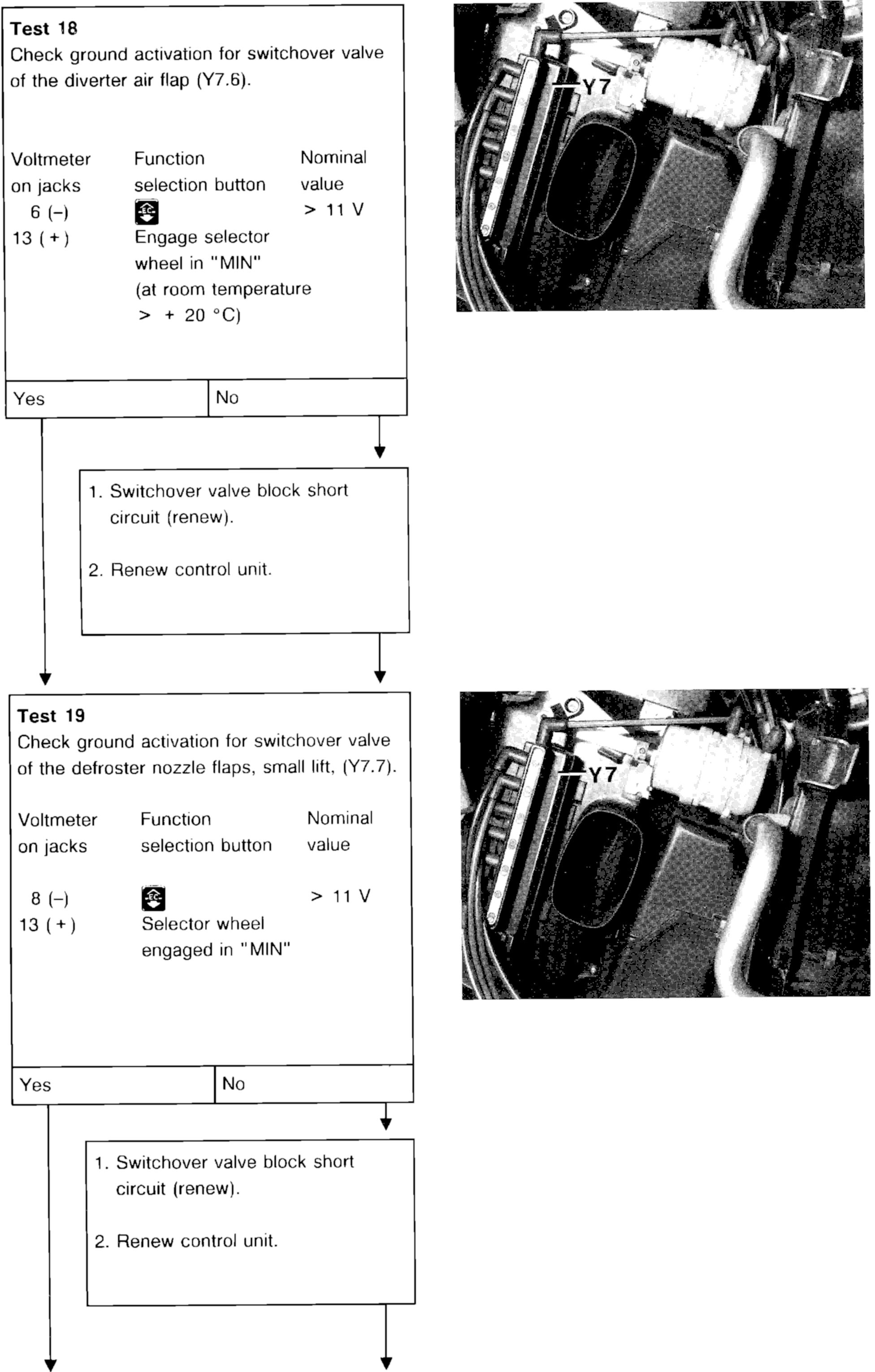

System Test 18/19:
