300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Automatic Air Conditioning (Auto A/C)
>>
Checking Electric Components of the Automatic Climate Control
>>

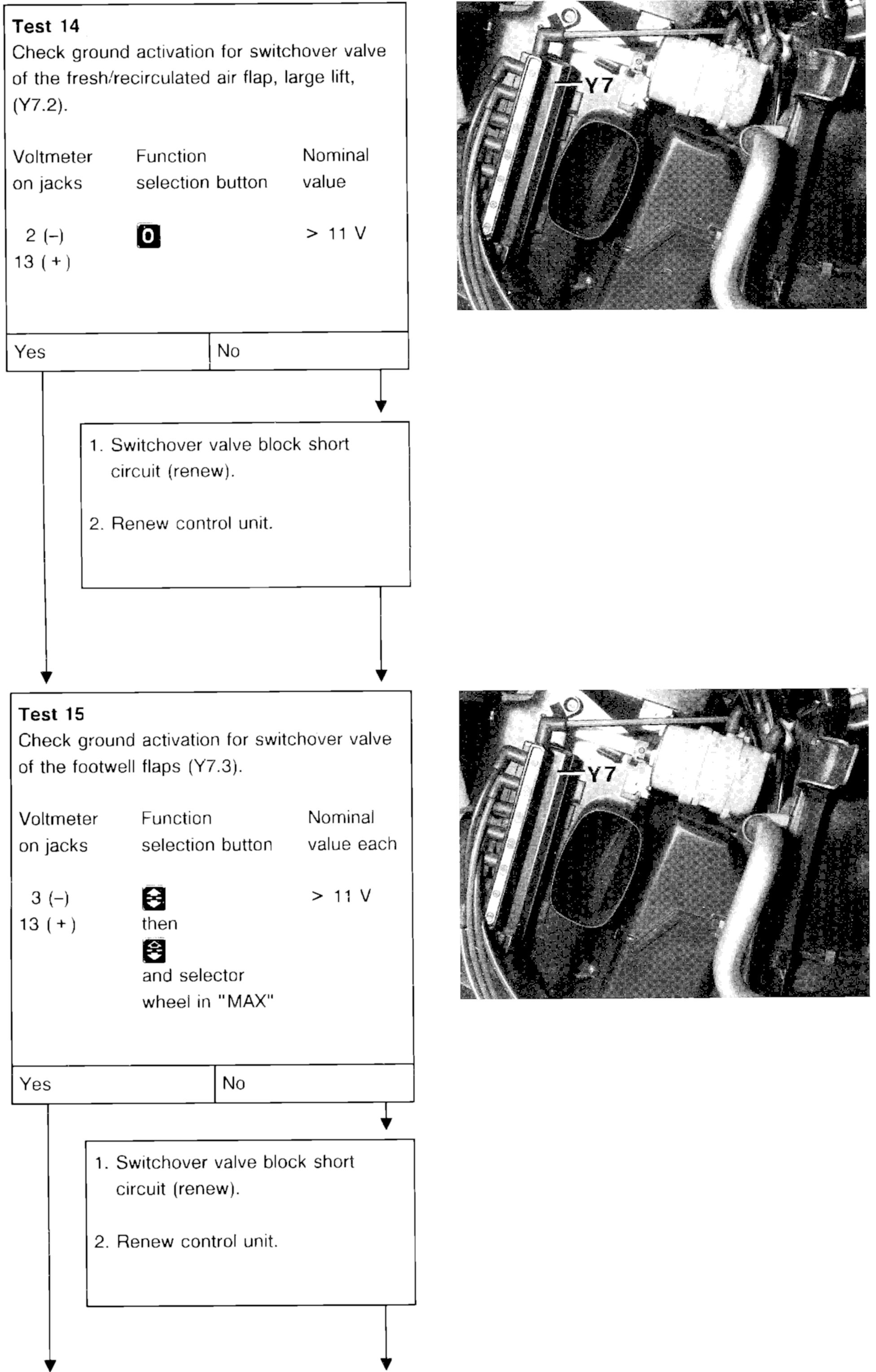

Tests 14/15
Tests 14/15
System Test 14/15:
