Checking Compressor Clutch Cutout
Checking Compressor Clutch Cutout
MAS Control Unit Testing:

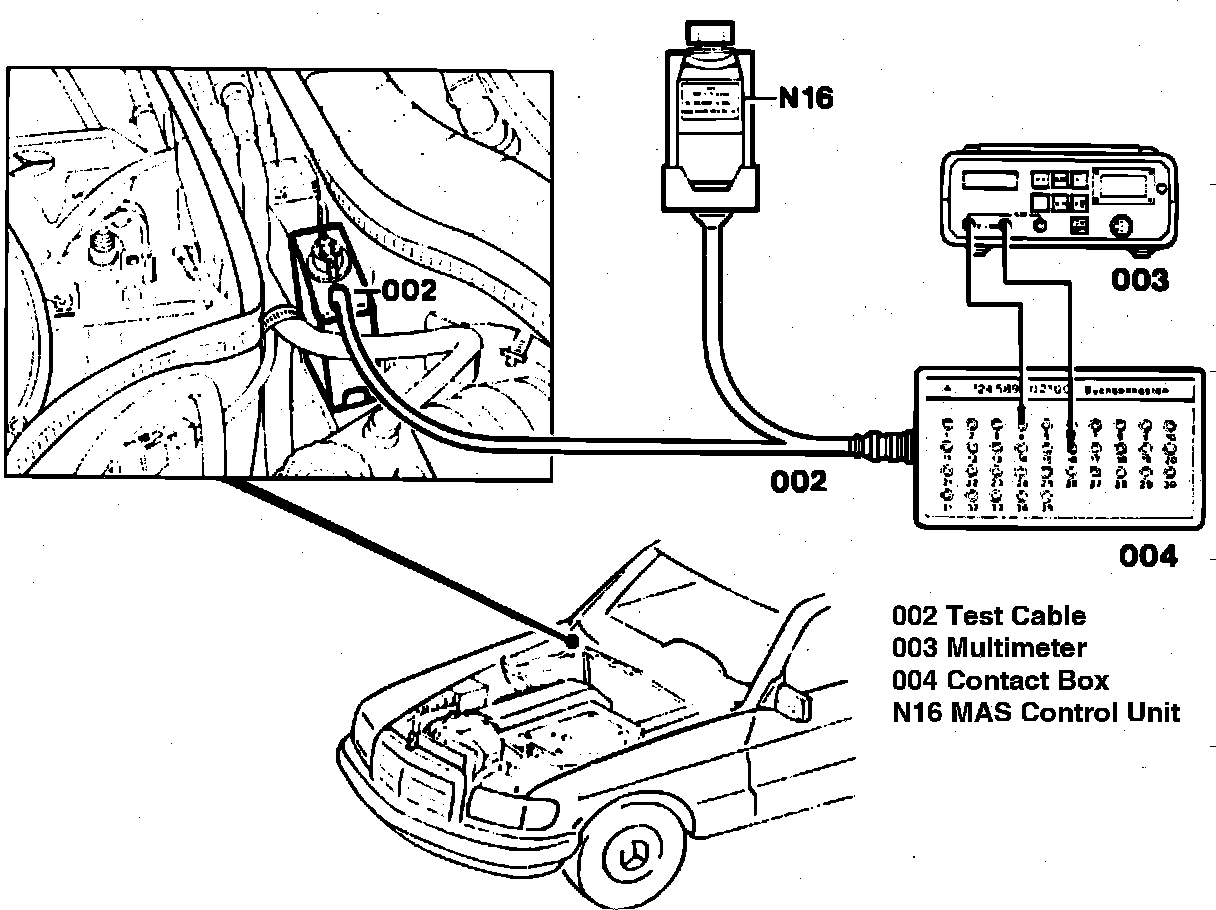

Connect the socket box and test cable.
MAS Control Unit Testing:

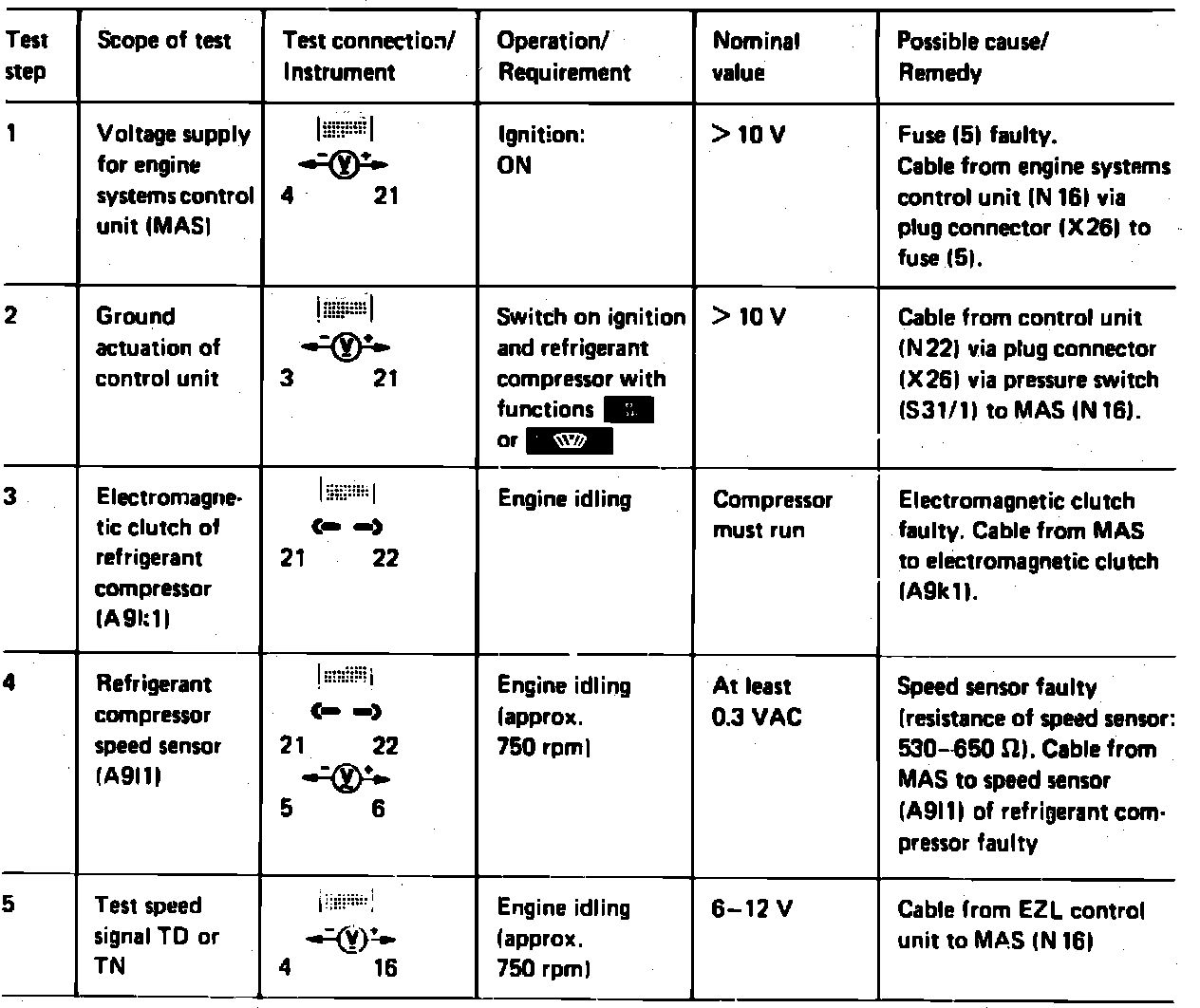

DIAGNOSTIC PROCEDURE
