Expansion Valve: Locations

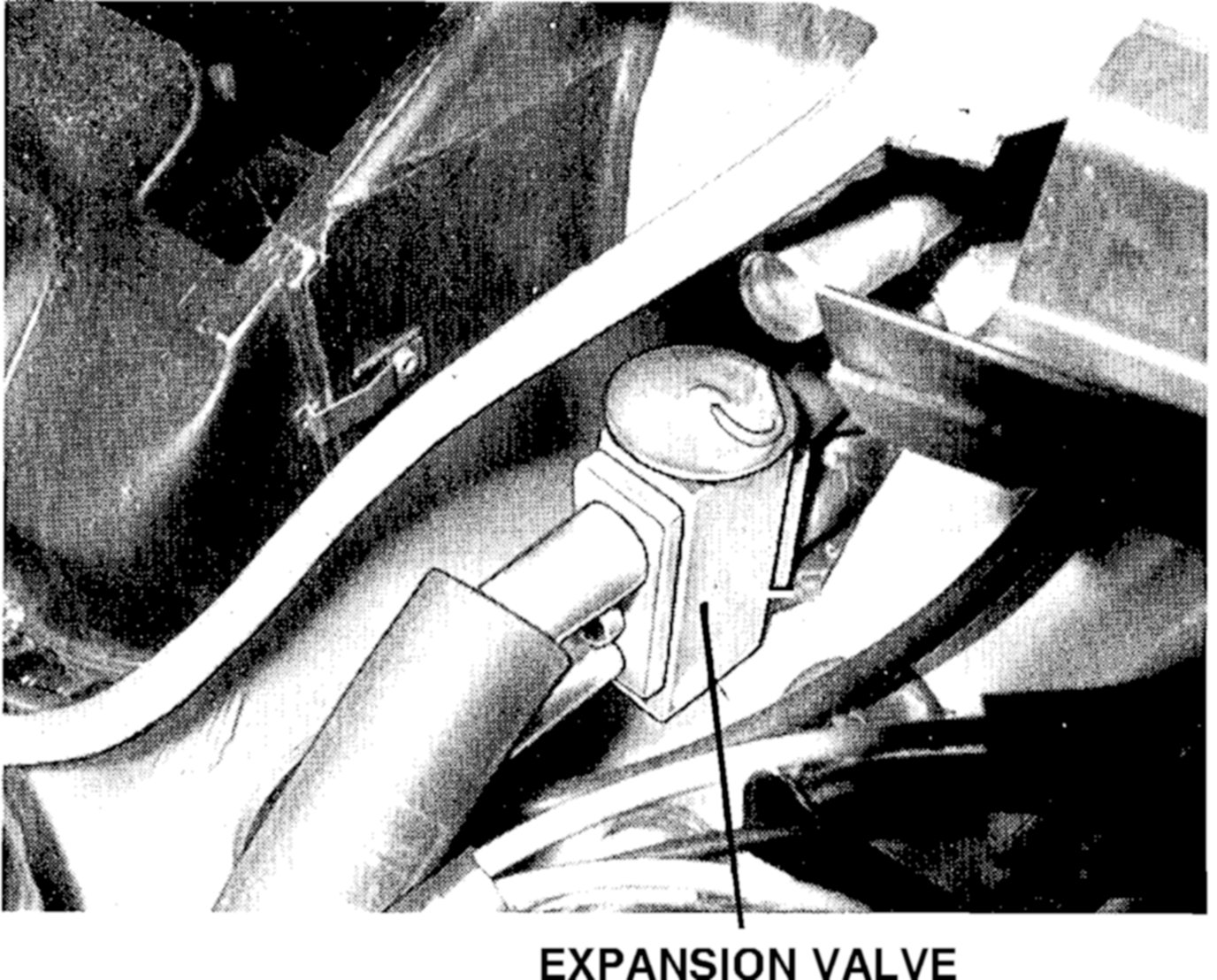

Expansion Valve Location:





The expansion valve is located at the left rear of the engine compartment.
