Control Assembly: Service and Repair

Automatic Climate Control R&R:

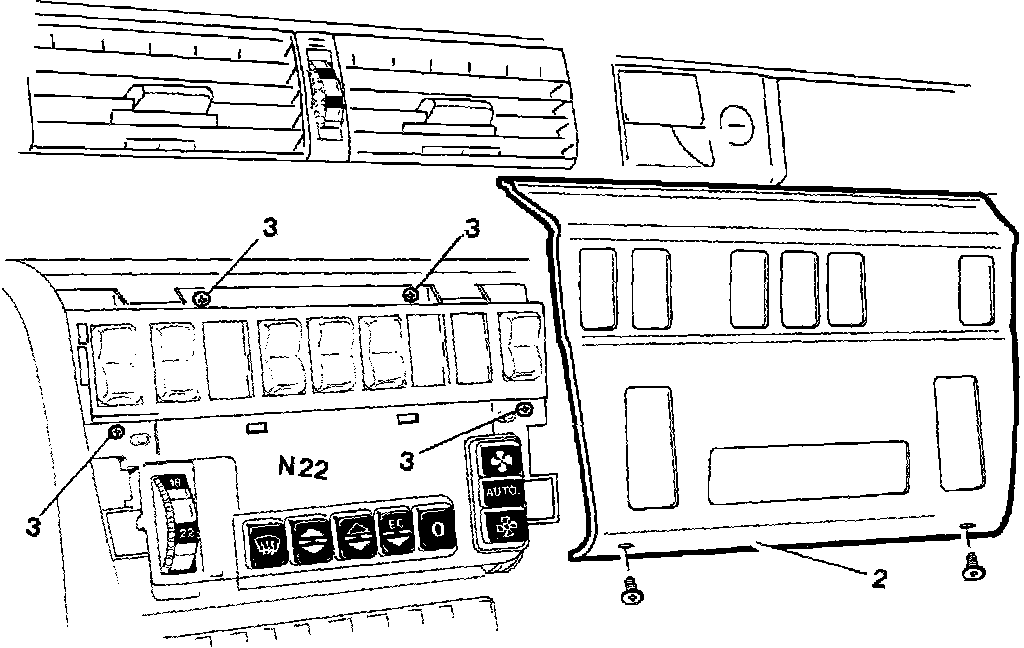

Cover (2) Remove
Screws (3) Unscrew
Control Unit (N22) Pull out and disconnect both couplings
In reverse order Install

Installation Instruction
Before pressing on the two couplings, check all sleeves for proper contact, correct by bending if required.
