Footwell Outlet Flaps

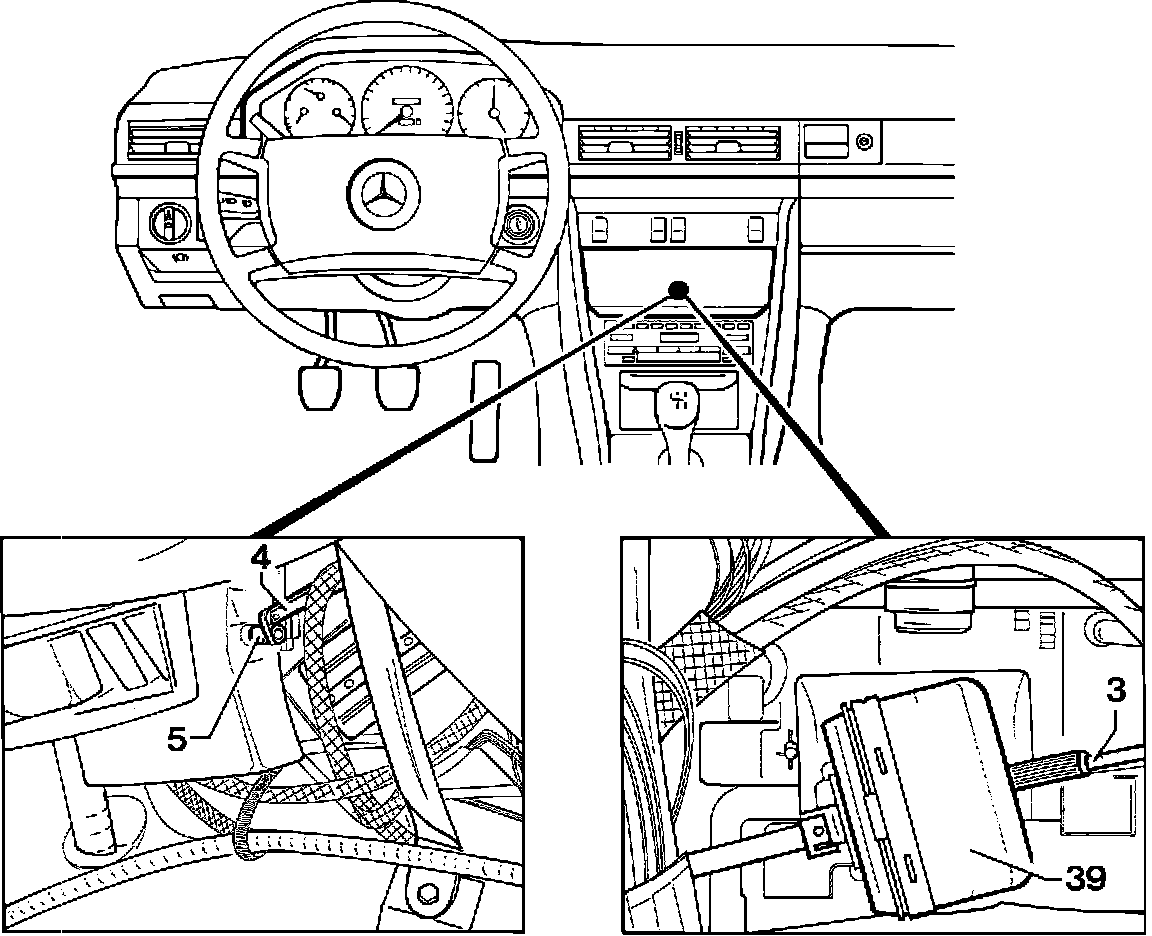

Footwell Flap Vacuum Element Replacement:

1. Remove the ACC push-button control unit.
2. Disconnect the vacuum line (3).
3. Press off the actuation rod (4) on lever (5).
4. Remove the vacuum element (39) from the holder.
5. Install in reverse order using new rubber washers for the locks.
