Vacuum Element For Recirculated Air Flap

Fresh/Recirculated Air Flap Vacuum Element R&R:

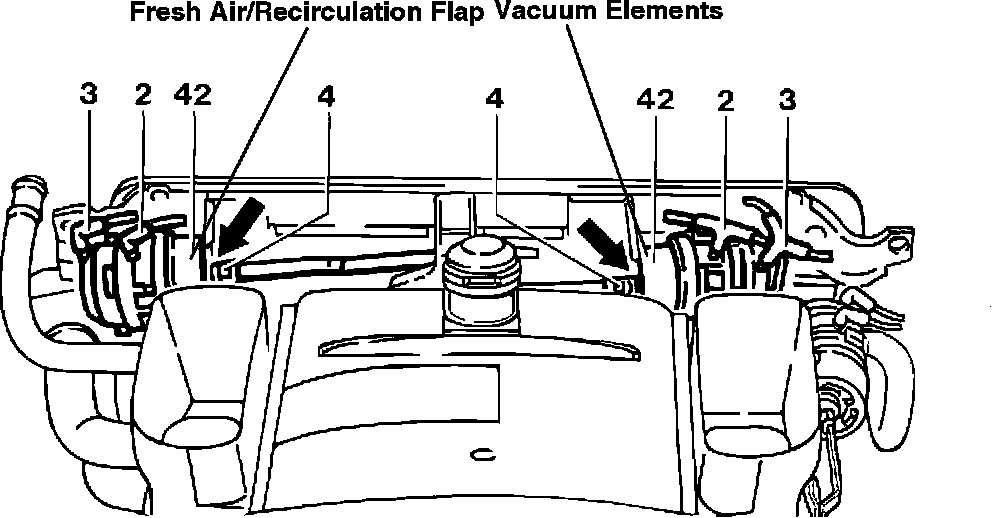

The vacuum elements (42) for the fresh air/recirculation flaps are located atop the heater box.
